Transmission Clearance Specifications

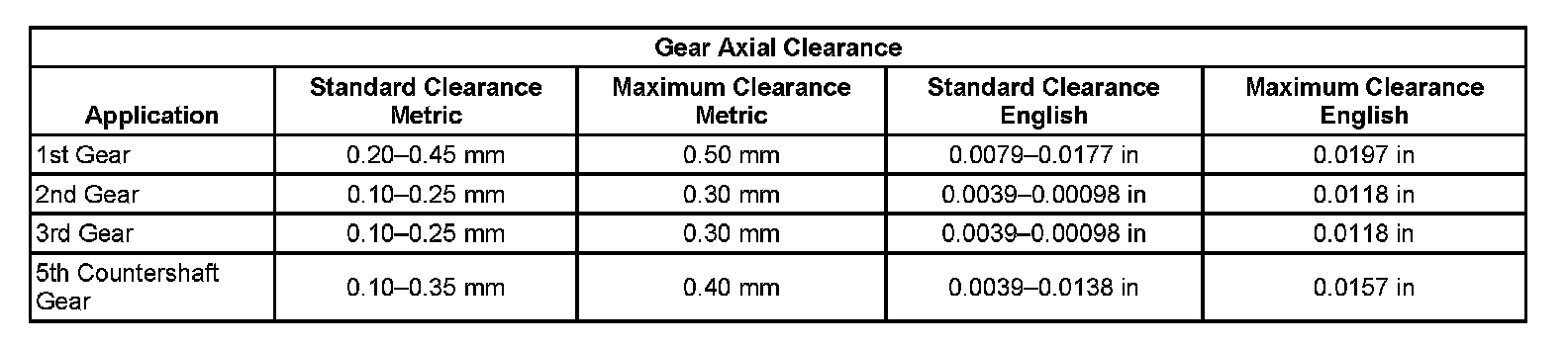

Gear Axial Clearance:

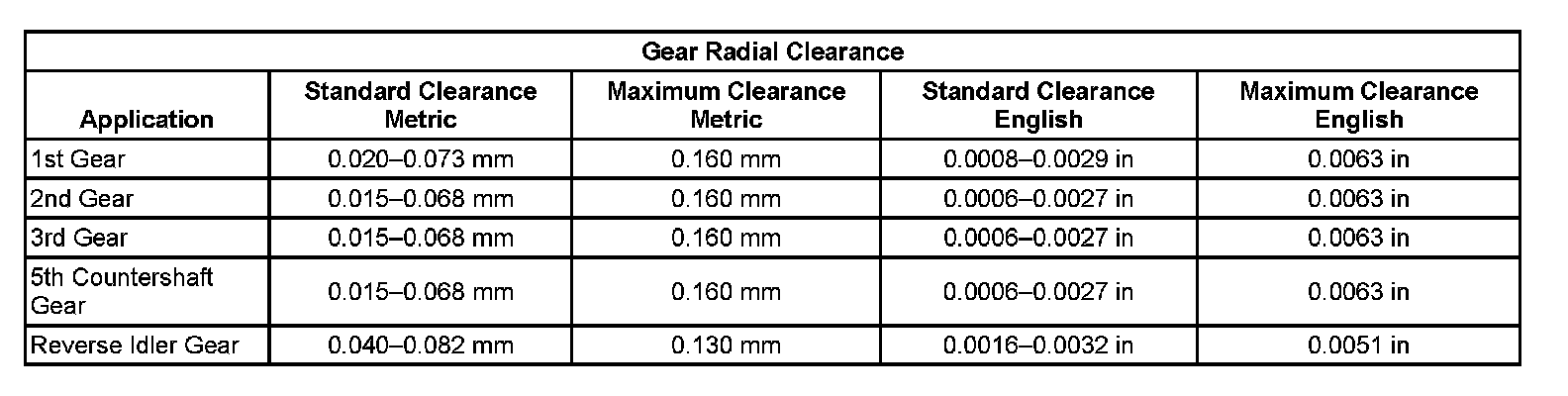

Gear Radial Clearance:

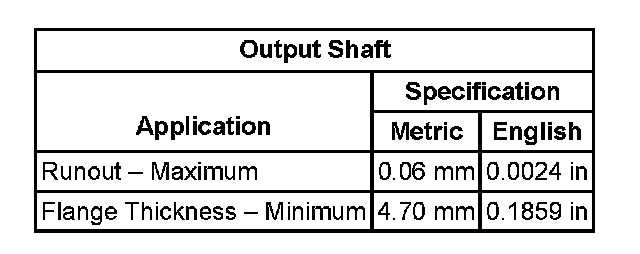

Output Shaft:

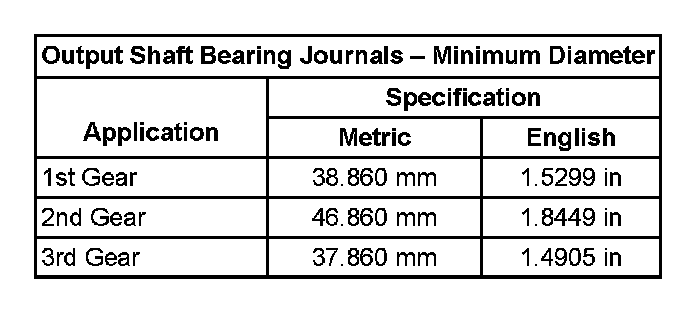

Output Shaft Bearing Journals - Minimum Diameter:

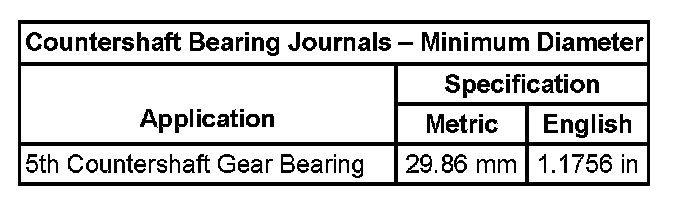

Countershaft Bearing Journals - Minimum Diameter:

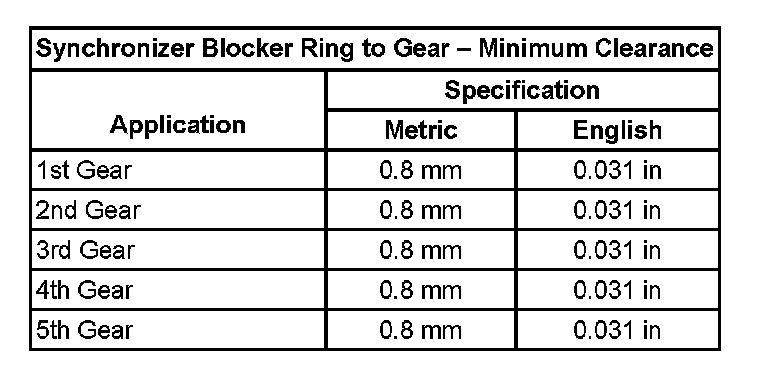

Synchronizer Block Ring To Gear - Minimum Clearance:

Synchronizer Sleeve To Shift Fork - Maximum Clearance:
