SIR Component Views
| Callout | Component Name |
|---|---|
| 1 | Body Harness |
| 2 | A/C Refrigerant Pressure Sensor |
| 3 | A/C Compressor Clutch |
| 4 | Ambient Air Temperature Sensor |
| 5 | Inflatable Restraint Front End Sensor - Right |
| 6 | Lower Radiator Support |
| 7 | Inflatable Restraint Front End Sensor - Left |
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Module Coil |
| 2 | Inflatable Restraint Steering Wheel Module Connectors |
| 3 | Ignition Switch |
| 4 | Ignition Lock Cylinder Control Actuator |
| 5 | Steering Wheel Position Sensor |
| 6 | C201 Steering Column Harness to I/P Harness |
| 7 | C275 Steering Column Harness to I/P Harness |
| 8 | Ignition Switch Connector |
| 9 | Turn Signal/Multifunction Switch |
| Callout | Component Name |
|---|---|
| 1 | Headlamp Switch |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | Hazard Switch |
| 4 | Accessory Switch |
| 5 | Radio |
| 6 | Ambient Light Sensor |
| 7 | Inflatable Restraint I/P Module |
| 8 | HVAC Control Module |
| 9 | Auxiliary Power Outlets - Front |
| 10 | Rear Window Wiper/Washer Switch |
| 11 | Inflatable Restraint Steering Wheel Module |
| 12 | Turn Signal/Multifunction Switch |
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Vehicle Rollover Sensor (ASF) |
| 2 | Yaw Rate/Lateral and Longitudinal Accelerometer Sensor (JL4) |
| 3 | Brake Fluid Reservoir |
| 4 | Electronic Brake Control Module (EBCM) C2 |
| 5 | Electronic Brake Control Module (EBCM) |
| 6 | Electronic Brake Control Module (EBCM) C1 |
| 7 | Brake Fluid Level Switch |

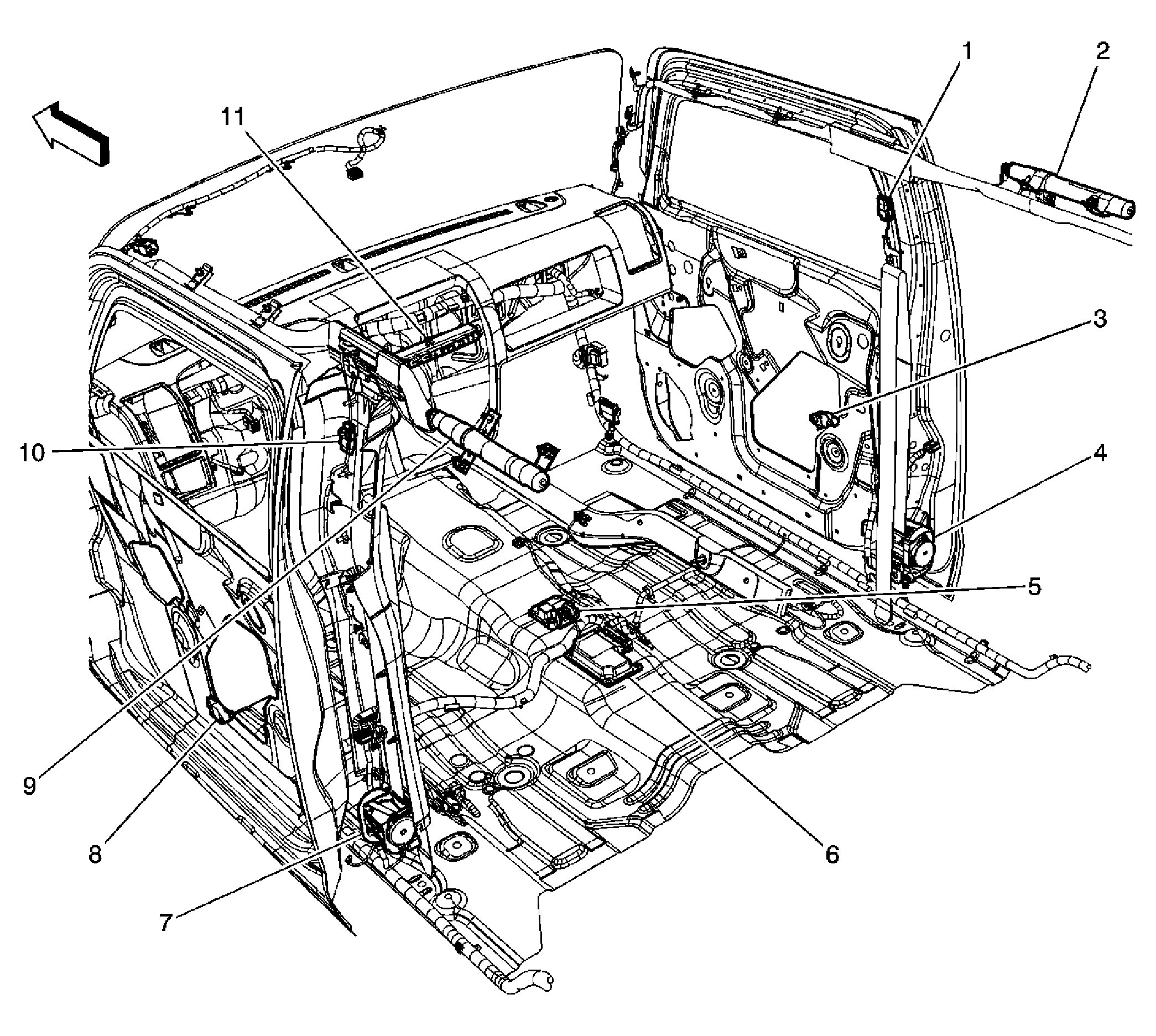

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Roof Rail Module - Right Connector (ASF) |
| 2 | Inflatable Restraint Roof Rail Module - Right (ASF) |
| 3 | Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF) |
| 4 | Seat Belt Pretensioner - RF |
| 5 | Inflatable Restraint Vehicle Rollover Sensor (ASF) |
| 6 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 7 | Seat Belt Pretensioner - LF |
| 8 | Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF) |
| 9 | Inflatable Restraint Roof Rail Module - Left (ASF) |
| 10 | Inflatable Restraint Roof Rail Module - Left Connector (ASF) |
| 11 | Inflatable Restraint Front Passenger Presence System (PPS) Indicator |
| Callout | Component Name |
|---|---|
| 1 | Heater Element Seat Cushion - Passenger (KA1) |
| 2 | Inflatable Restraint Passenger Presence Module |
| 3 | Lumbar Pump Motor - Passenger |
| 4 | Heater Element Seat Back - Passenger (KA1) |
| 5 | C315 Passenger Seat Harness to Body Harness |
| 6 | Seat Motors - Passenger |
| 7 | Seat Belt Switch - Right |
| 8 | Seat Adjuster Switch - Passenger |
