Midgate Latch Release Switch - Left (SUT)

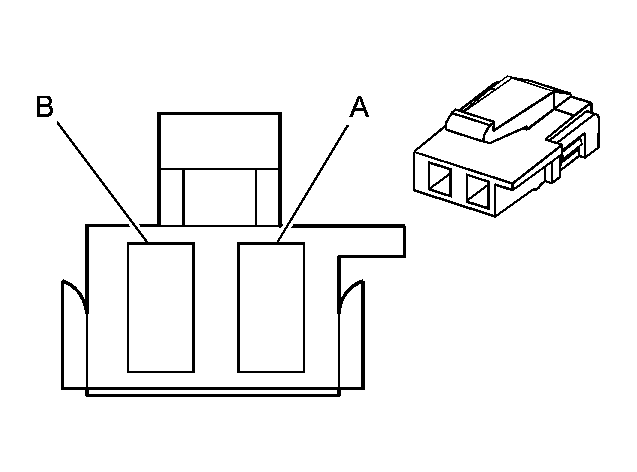

Fig 1: Midgate Latch Release Switch - Left (SUT) Connector End View
GM306258Courtesy of GENERAL MOTORS CORP.
Midgate Latch Release Switch - Left (SUT) Connector Parts Information

Connector Part Information
  • OEM: 15324742
  • Service: See Catalog
  • Description: 2-Way F M/P 280 Series (GY)
Midgate Latch Release Switch - Left (SUT) Connector Terminal Identification

Pin Wire Color Circuit No. Function
A WH/BK 1221 Midgate Release Switch Signal
B BK 3150 Ground
