Driver Door Module (DDM) Connector End View - C1

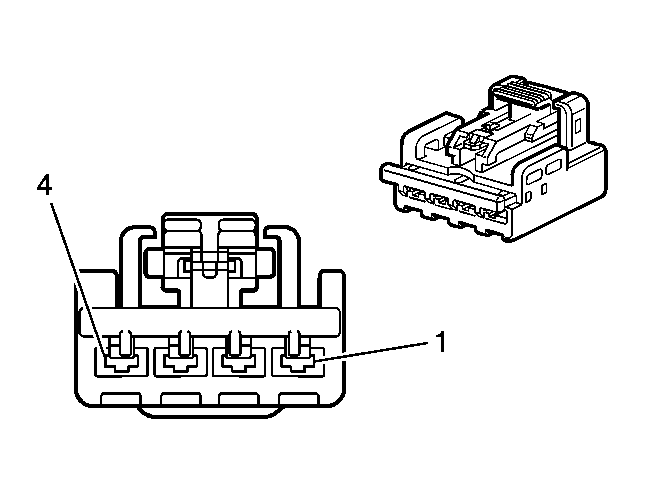

Fig 1: Driver Door Module (DDM) - C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

Driver Door Module (DDM) - C1 Connector Parts Information

Connector Part Information

Driver Door Module (DDM) - C1 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	BN	165	Power Window Motor Left Front Down Control
2	OG	1240	Battery Positive Voltage
3	D-BU	164	Power Window Motor Left Front Up Control
4	BK	1050	Ground
