Installation Procedure

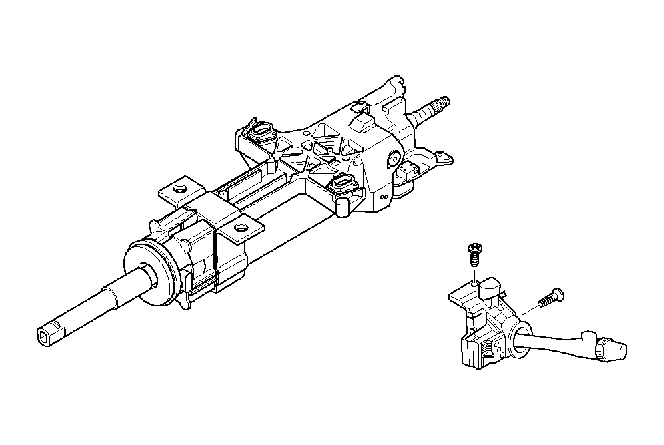

    Fig 1: View Of Turn Signal Switch Assembly
    GM761439Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The electrical contact on the turn signal and multifunction switch assembly must rest on the turn signal cancel cam assembly.
  1. Install the turn signal and multifunction switch assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Secure by using 2 pan head tapping screws.

    Tighten:

    • Tighten the screw on the top of the column to 3 N.m (27 lb in).
    • Tighten the screw on the side to 7 N.m (62 lb in).

  3. Connect the connectors to the turn signal and multifunction switch assembly.
  4. Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .
  5. Enable the SIR system. Refer to SIR Disabling and Enabling .
