Combination Switch



Lighting Systems Connector End Views

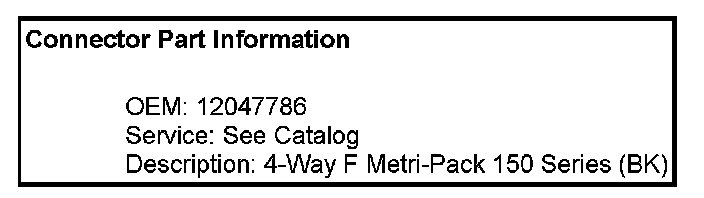

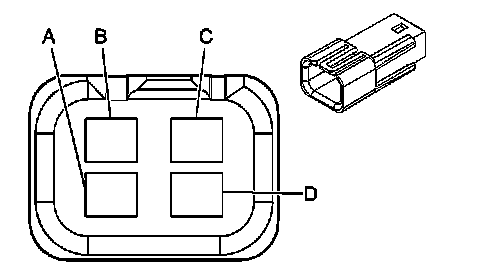

Turn Signal/Multifunction Switch - C1

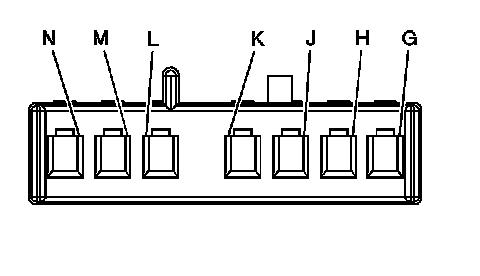

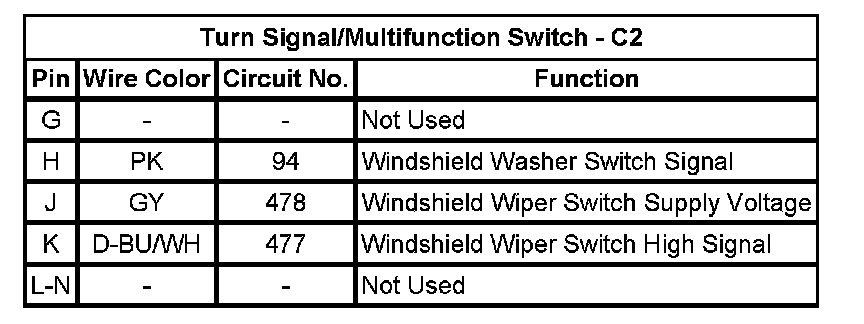

Turn Signal/Multifunction Switch - C2

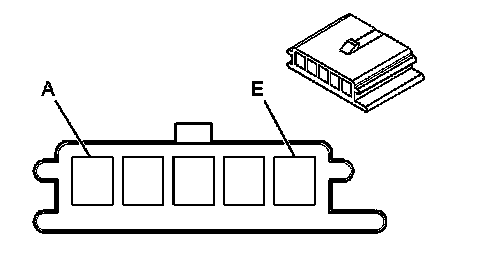

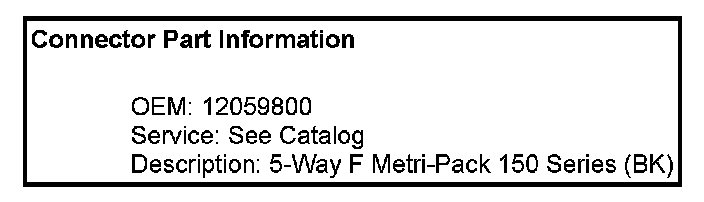

Turn Signal/Multifunction Switch - C3














Turn Signal/Multifunction Switch - C4
