Heated/Cooled Seat Connector End Views



Heated/Cooled Seat Connector End Views

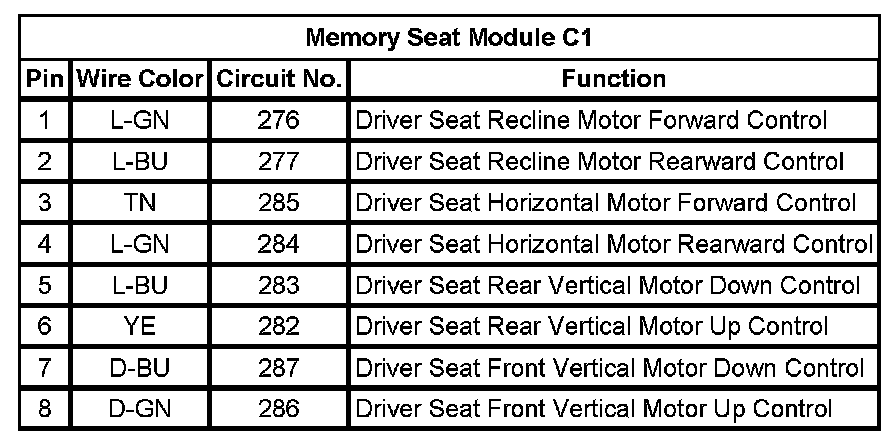

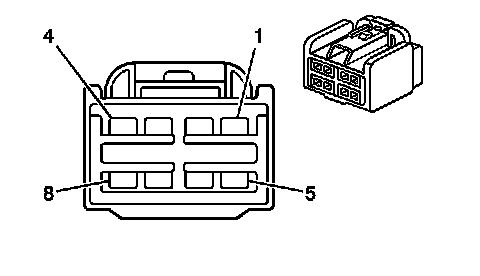

Memory Seat Module C1

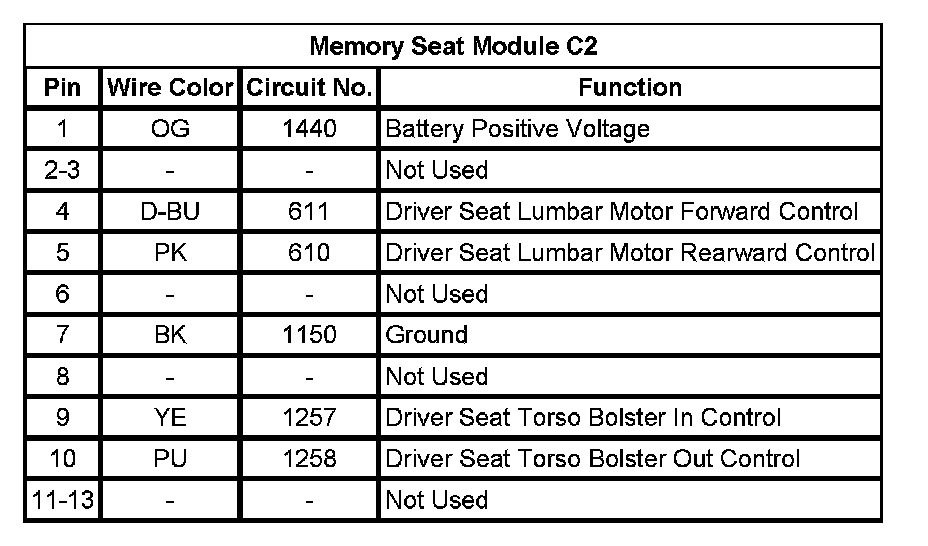

Memory Seat Module C2

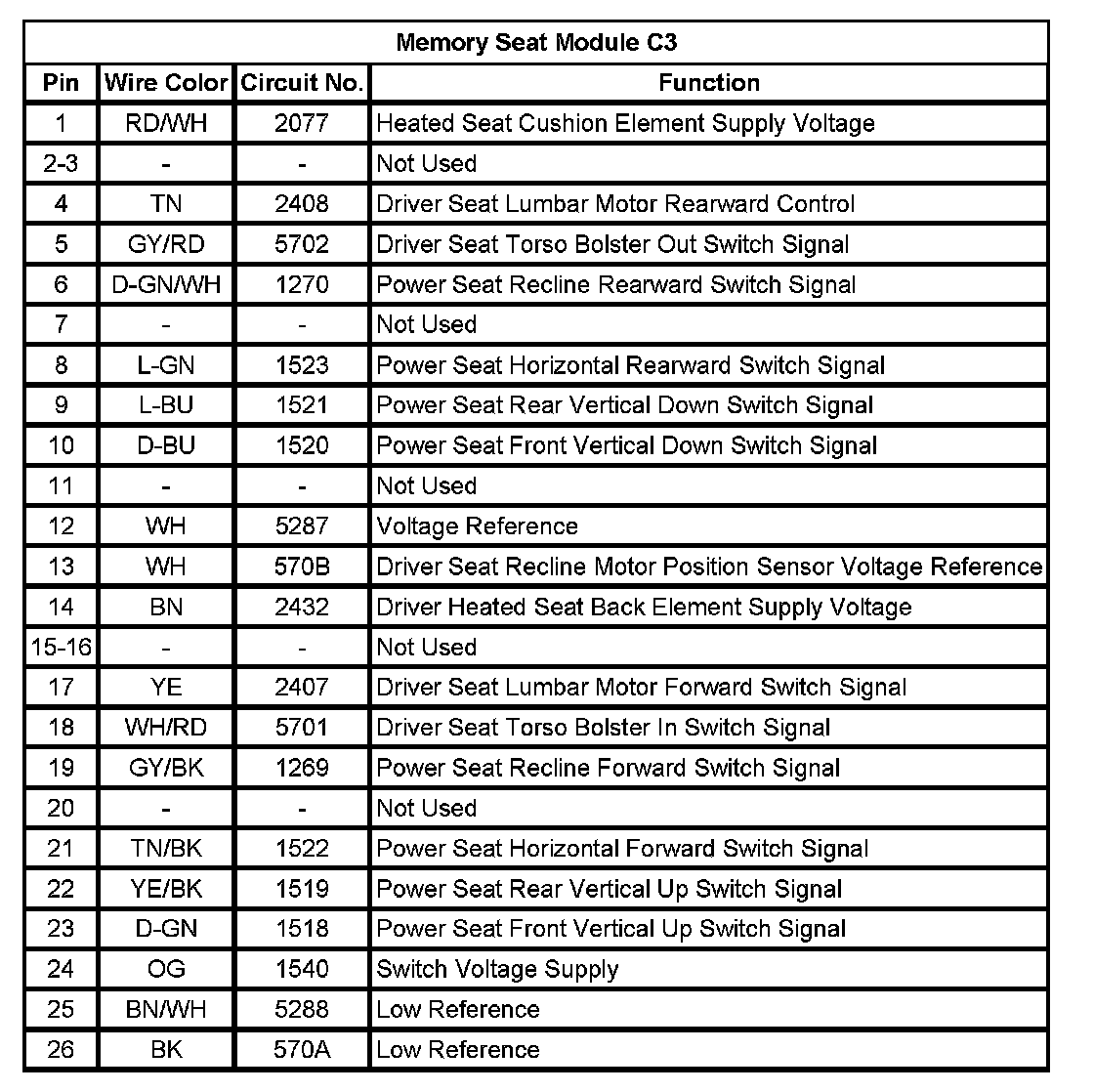

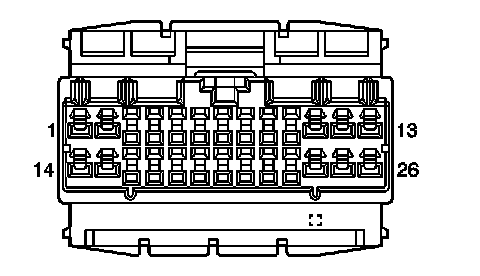

Memory Seat Module C3

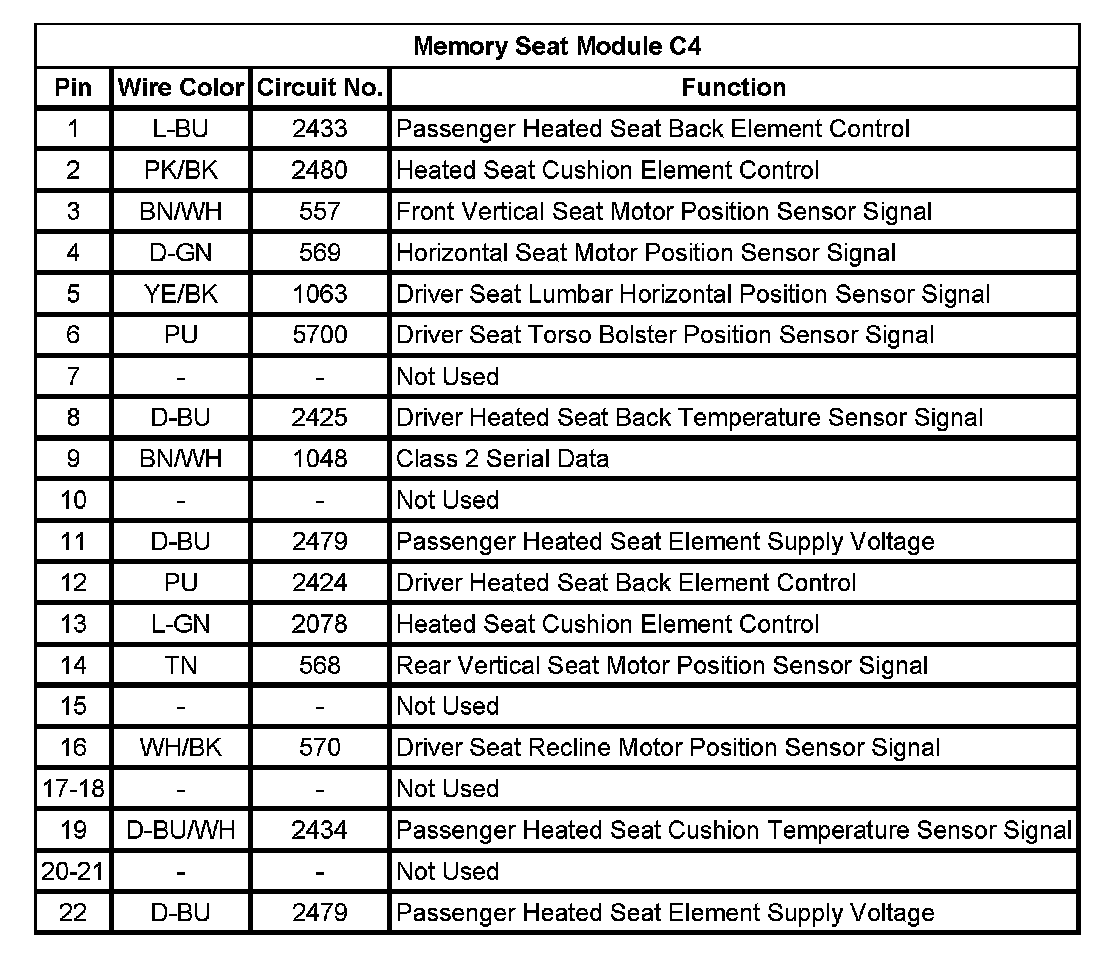

Memory Seat Module C4
