G102

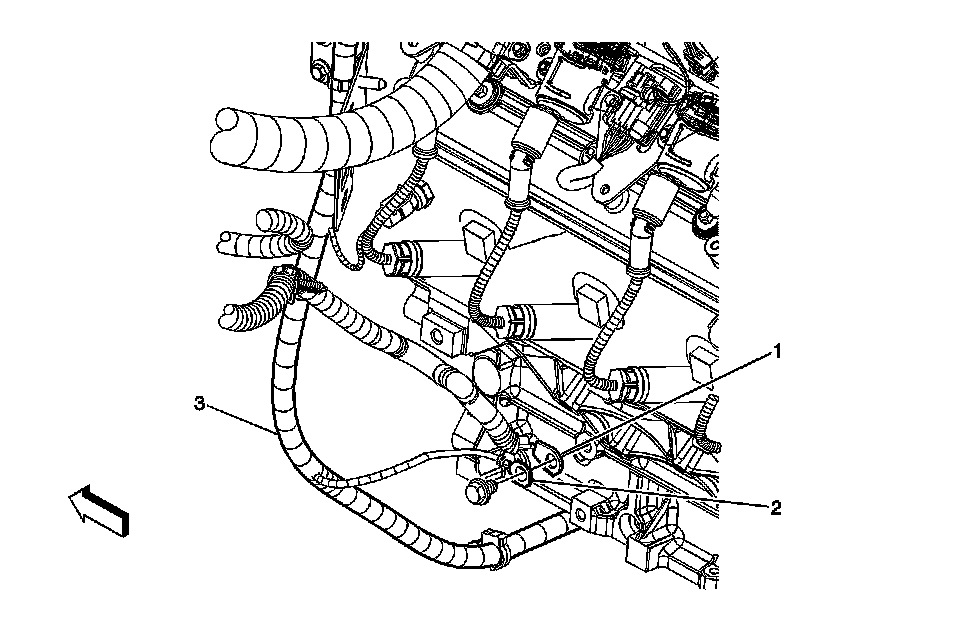

Power and Grounding Component Views

G102




1 - G102-Negative Battery Cable
2 - G102-Engine Harness Ground
3 - Engine Harness
