Power and Grounding Component Views

Power and Grounding Component Views

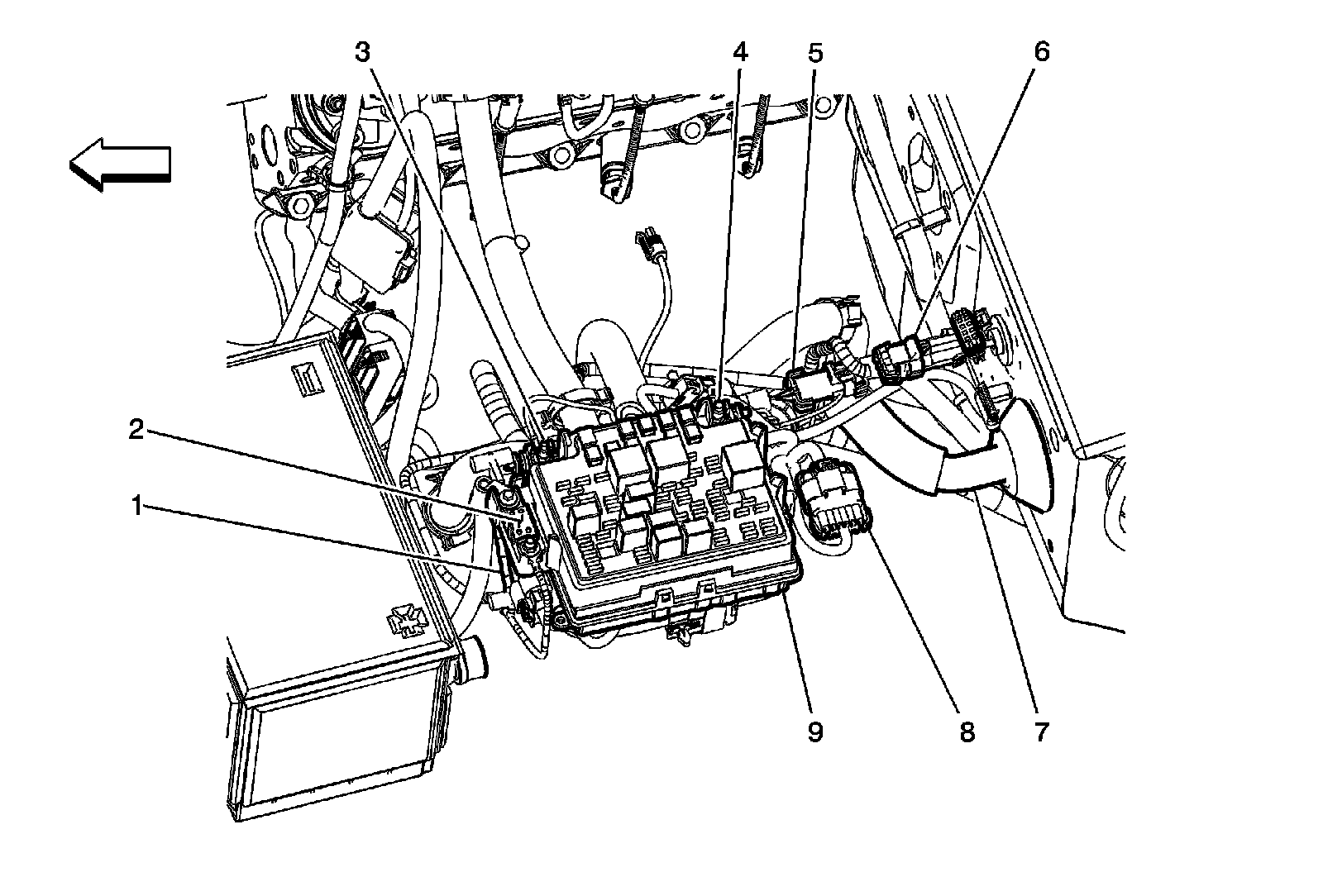

Fuse Block Underhood, C102, C107, and C108




1 - Fusable Link (WS2)
2 - Mega Fuse (WS2)
3 - Stud 1
4 - Stud 2 - Trailer Connector Power Feed
5 - C107 (UVC)
6 - C108 (WS2)
7 - I/P Harness
8 - C102
9 - Underhood Fuse Block


Left Side of I/P




1 - Body Control Module (BCM) - C1
2 - BCM - C2
3 - BCM - C4
4 - BCM- C3
5 - BCM - C5
6 - BCM
7 - Data Link Connector (DLC)
8 - Fuse Block - I/P - C1
9 - Fuse Block - I/P
10 - Splice Pack SP205


Fuse Block - I/P




1 - Fuse Block - I/P
2 - Driver Door Harness
3 - Fuse Block - I/P - C3 (BLK)
