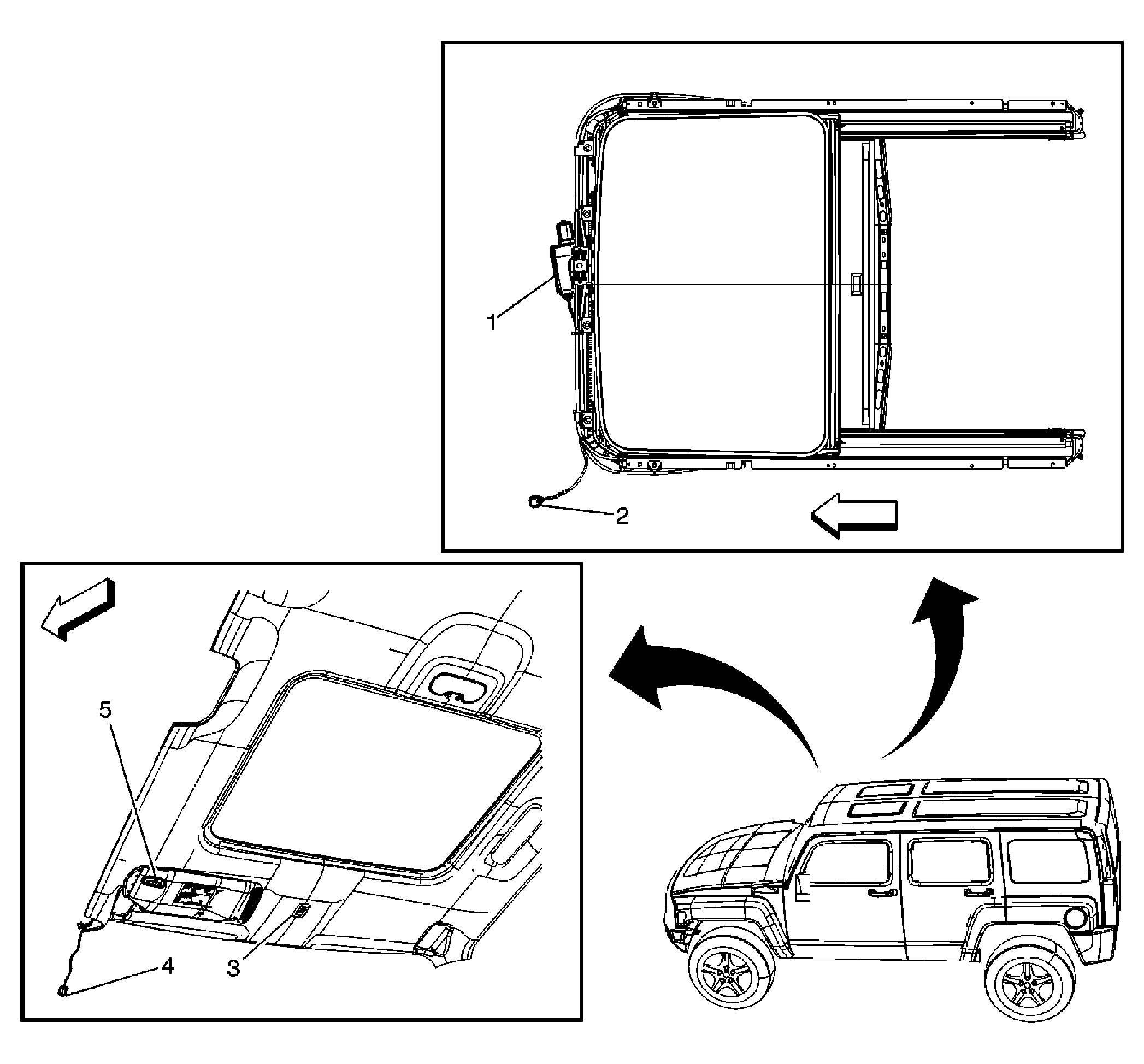

Remote Function Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Motor |
| 2 |
C330 Sunroof Jumper Harness to Body Harness |
| 3 |
Sunroof Switch |
| 4 |
C335 Sunroof Jumper Harness to Body Harness |
| 5 |
Garage Door Opener |
