Fuel Fill Pipe

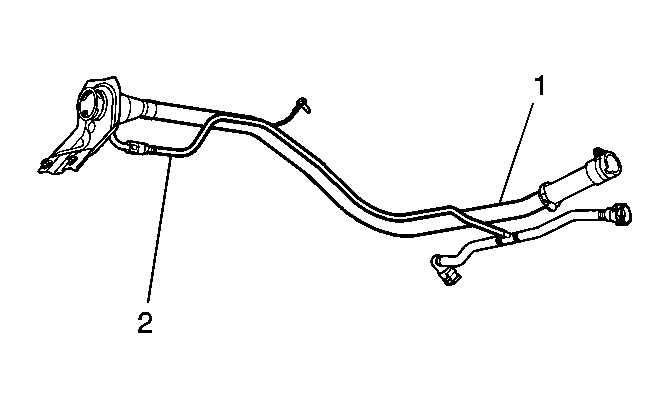

Fig 1: View Of Fuel Fill Pipe
GM1556901Courtesy of GENERAL MOTORS CORP.

The fuel fill pipe has a built-in restrictor in order to prevent refueling with leaded fuel.
