Engine Controls Schematics

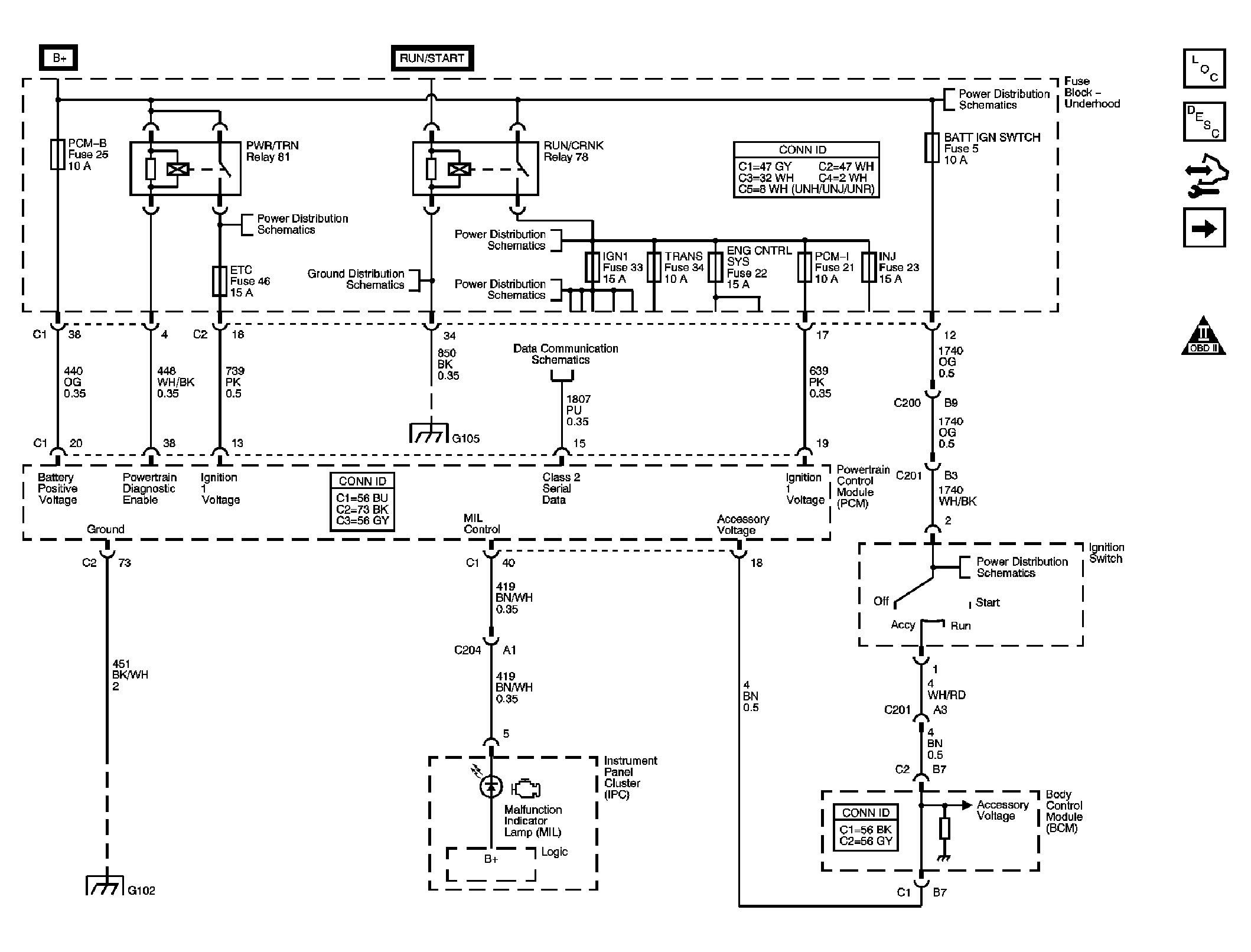

Fig 1: Module Power, Ground, Serial Data, MIL & DLC Schematic

Courtesy of GENERAL MOTORS CORP.

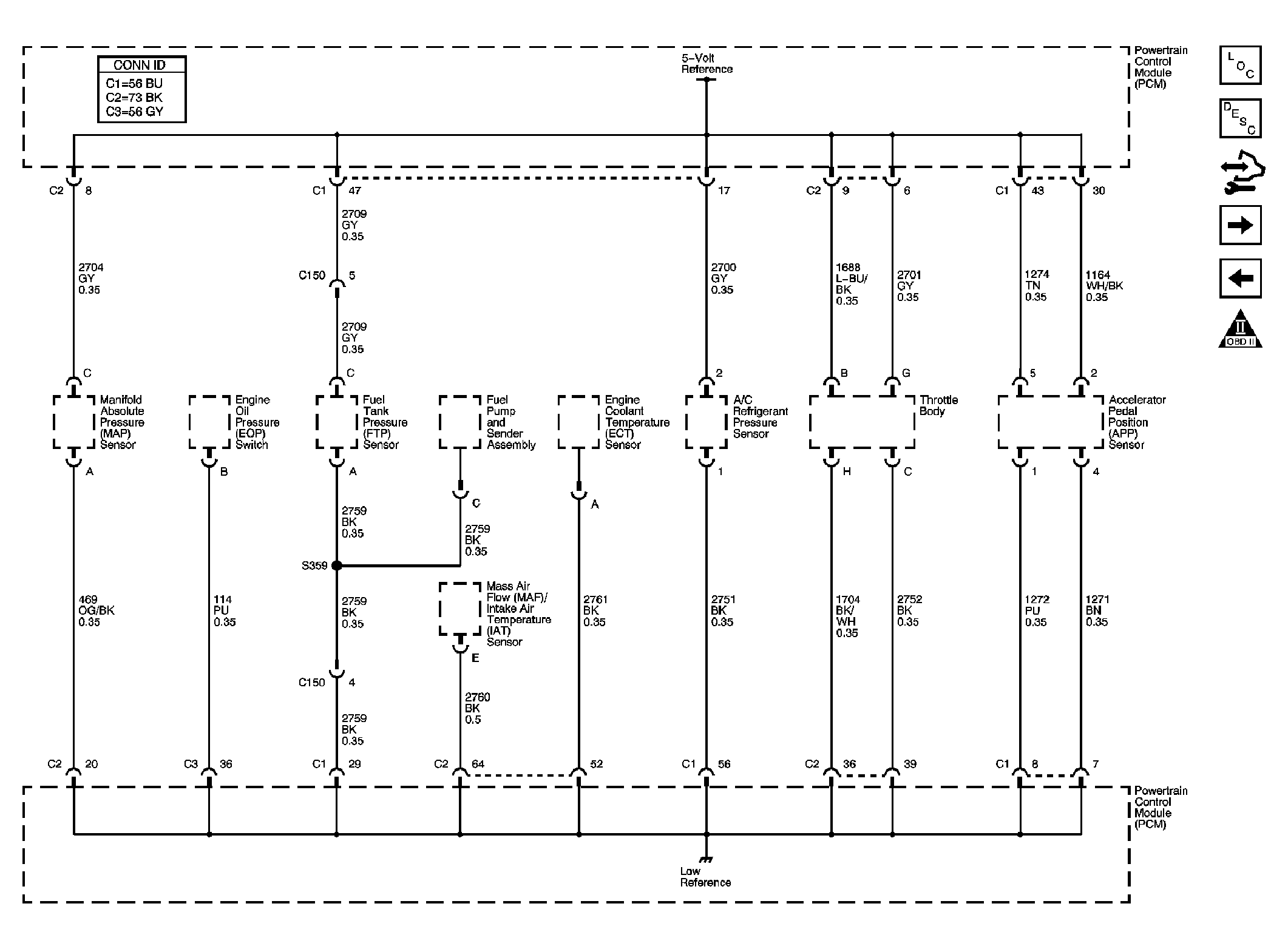

Fig 2: Engine Data Sensors Schematic - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

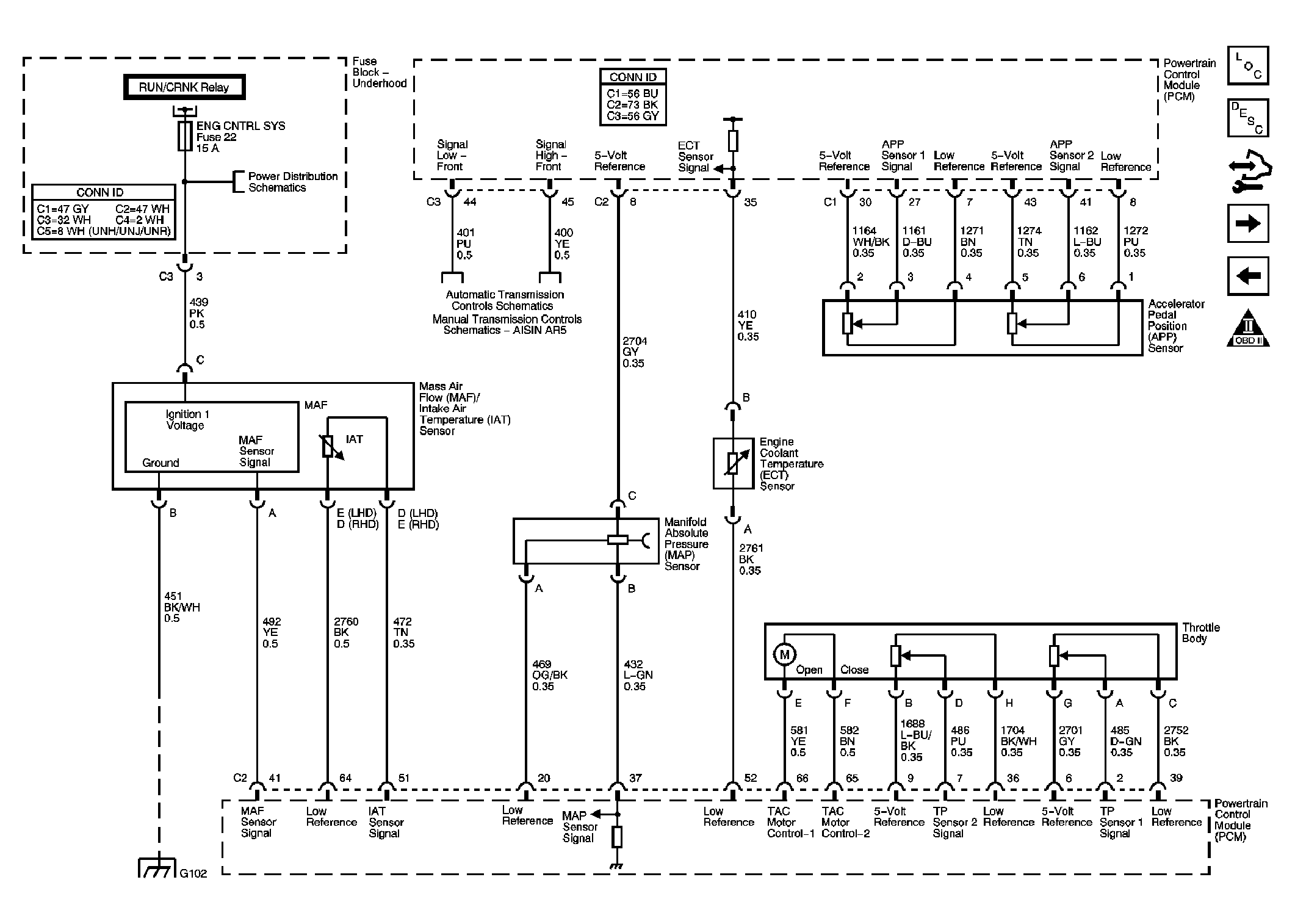

Fig 3: Engine Data Sensors Schematic - Pressure, Temperature and Throttle Actuator Controls

Courtesy of GENERAL MOTORS CORP.

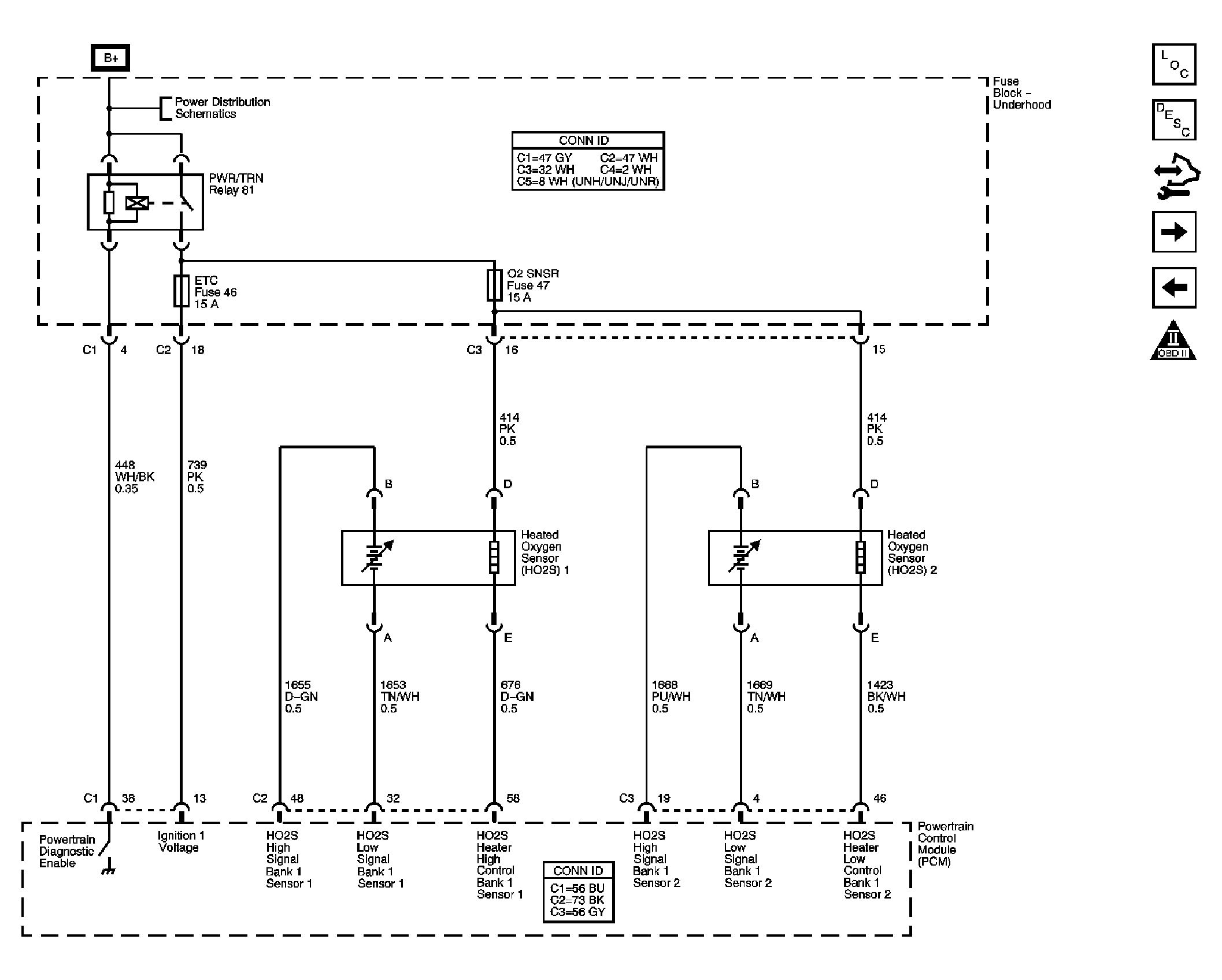

Fig 4: Engine Data Sensors Schematic - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

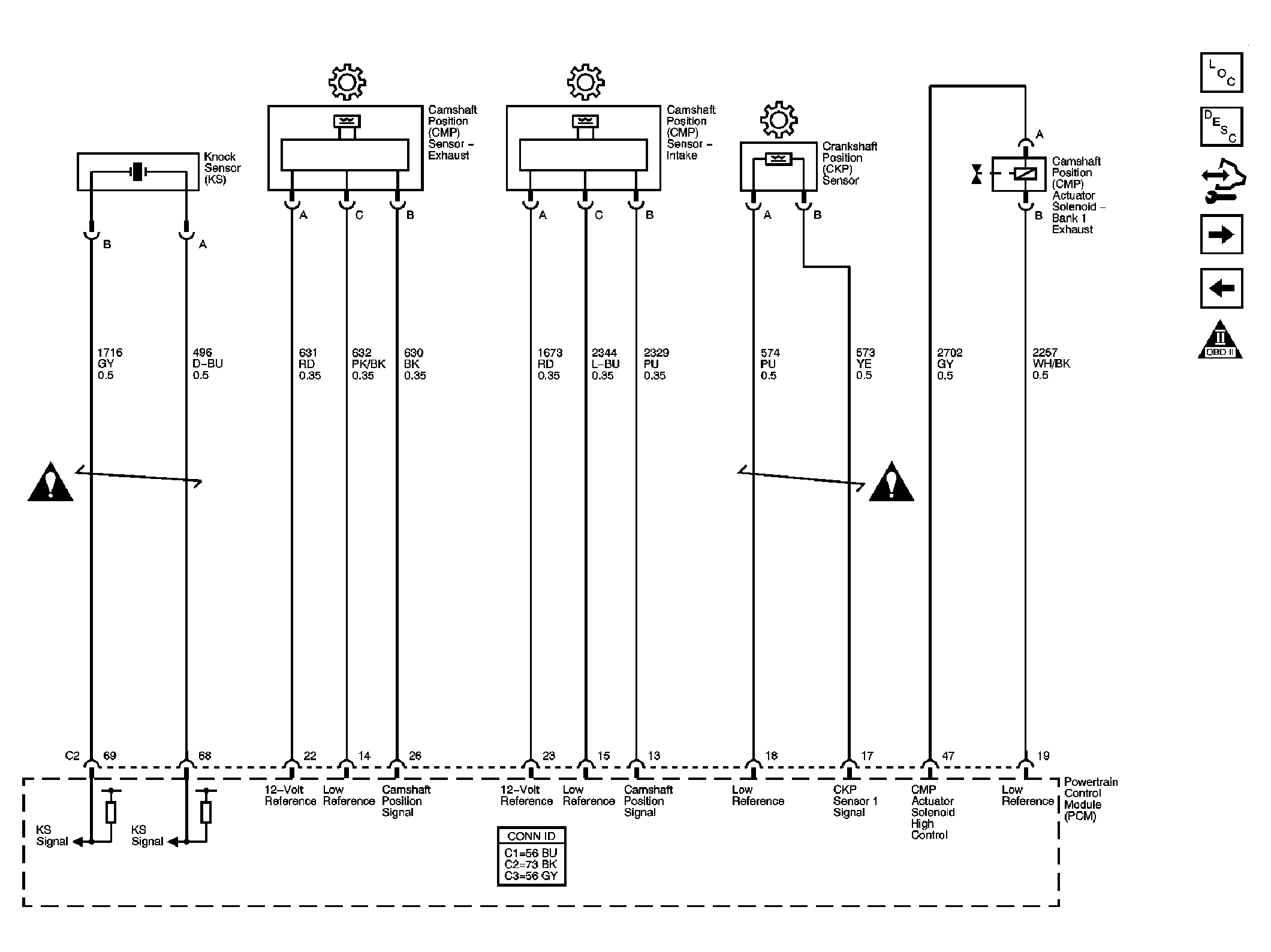

Fig 5: Ignition Controls Schematic - Sensors

Courtesy of GENERAL MOTORS CORP.

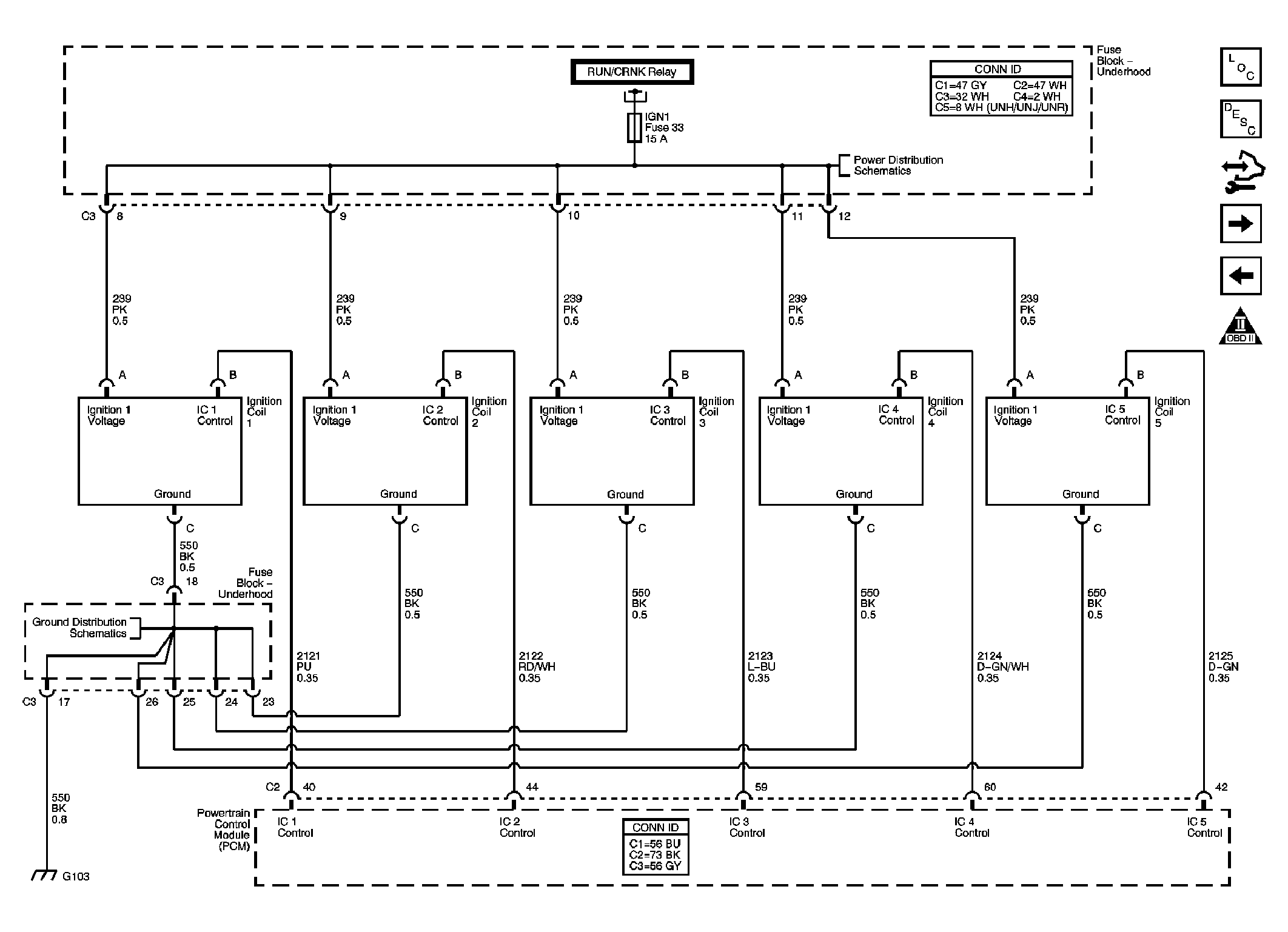

Fig 6: Ignition Controls Schematic - Ignition System

Courtesy of GENERAL MOTORS CORP.

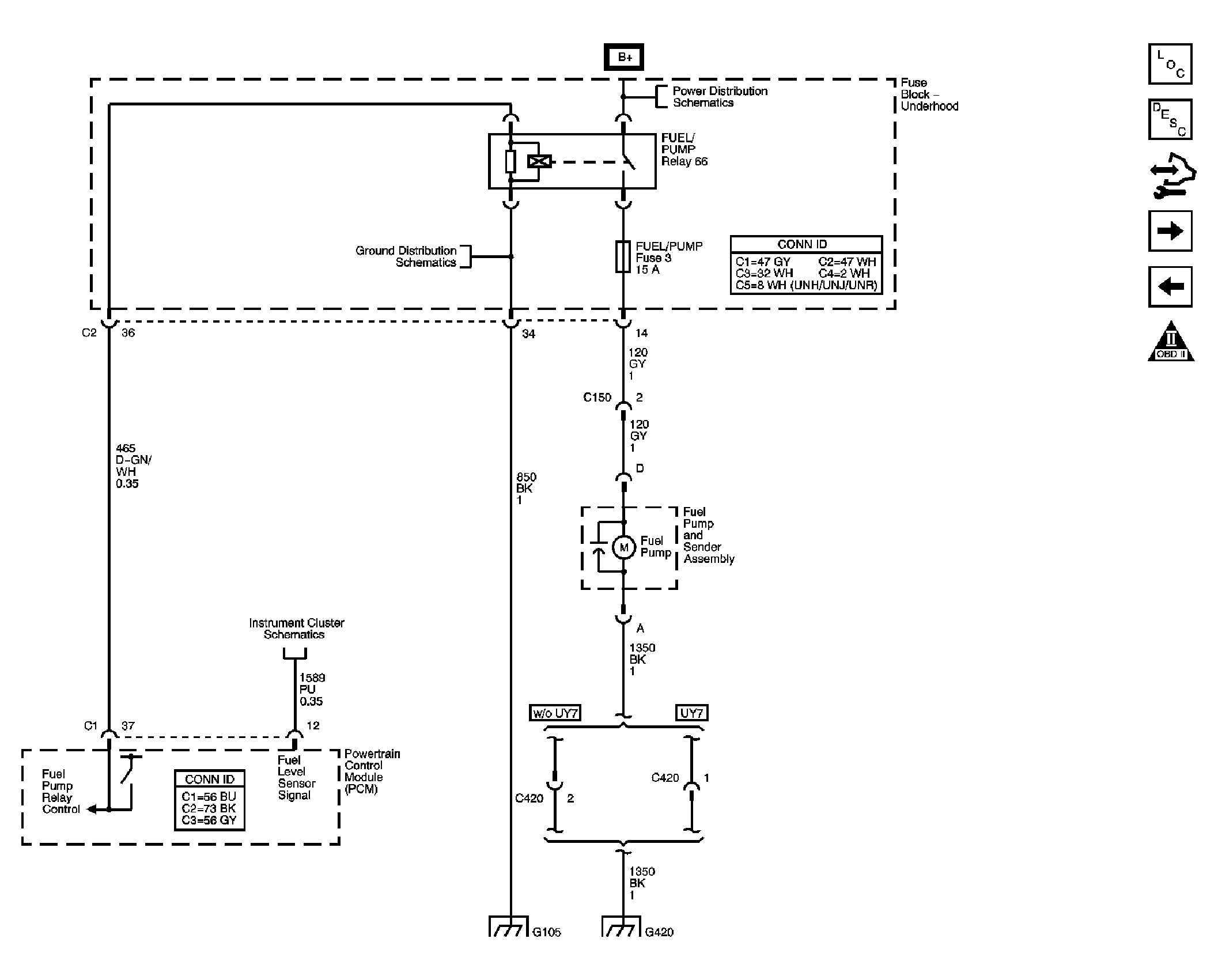

Fig 7: Fuel Controls Schematic

Courtesy of GENERAL MOTORS CORP.

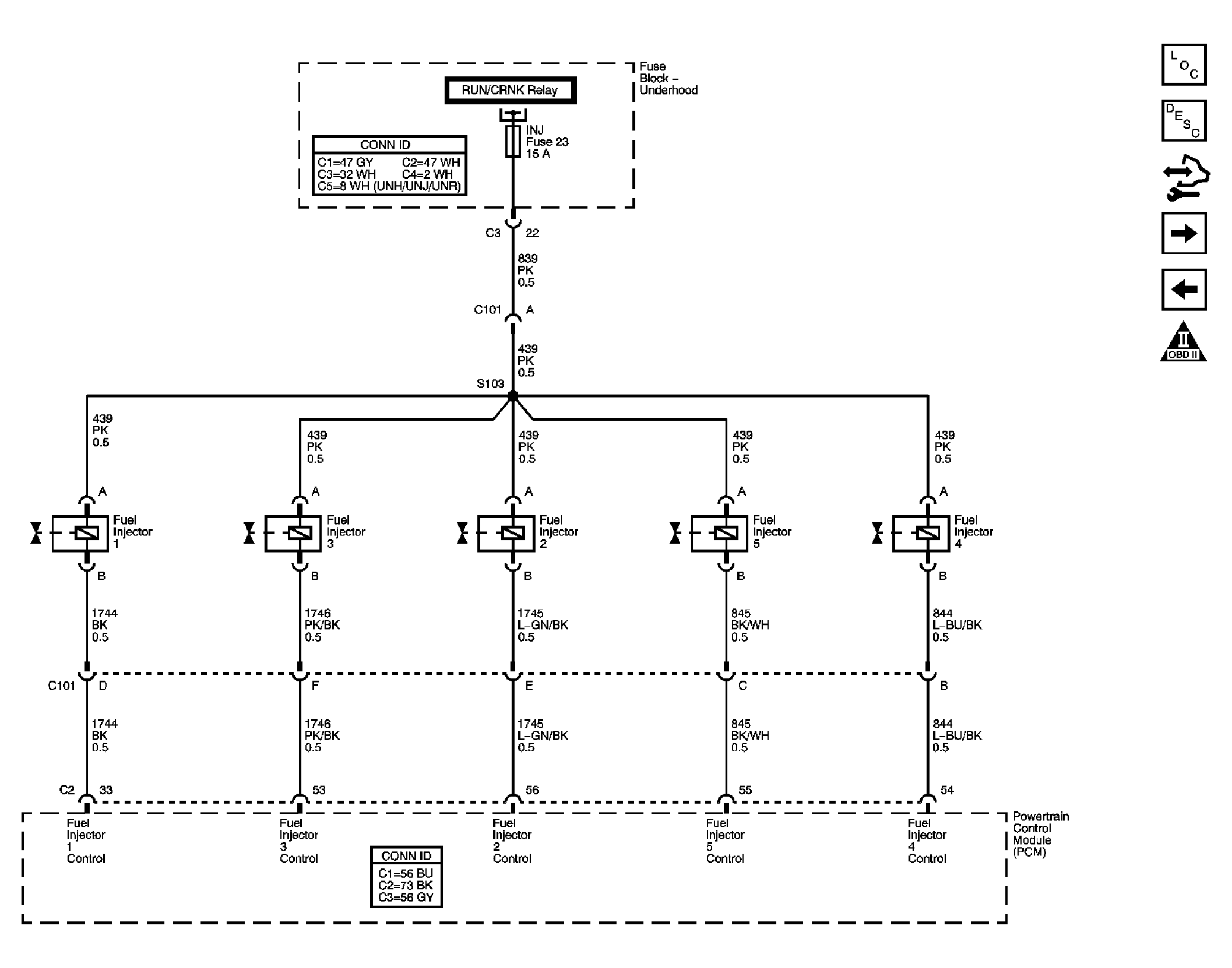

Fig 8: Fuel Injection Controls Schematic

Courtesy of GENERAL MOTORS CORP.

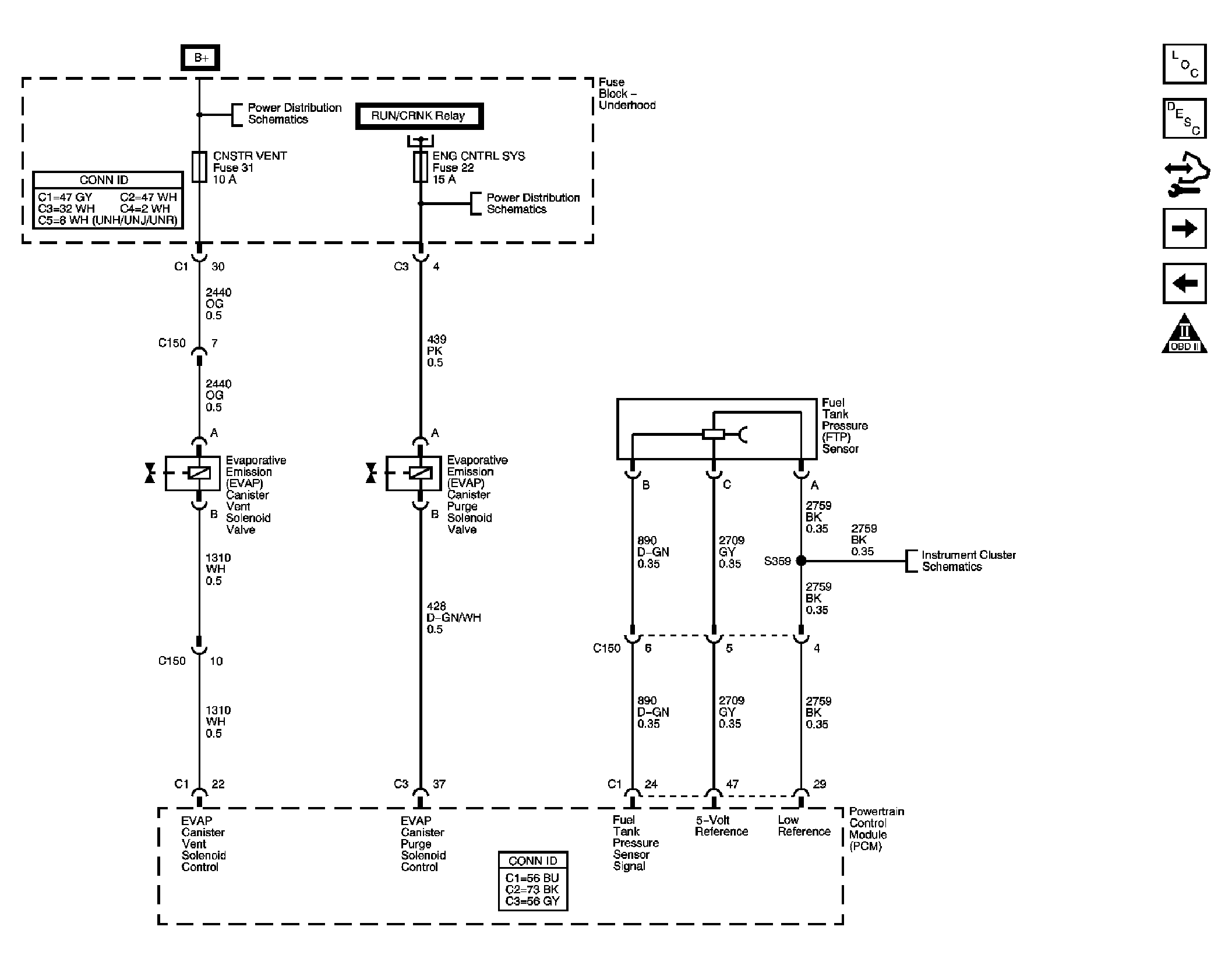

Fig 9: Fuel and EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

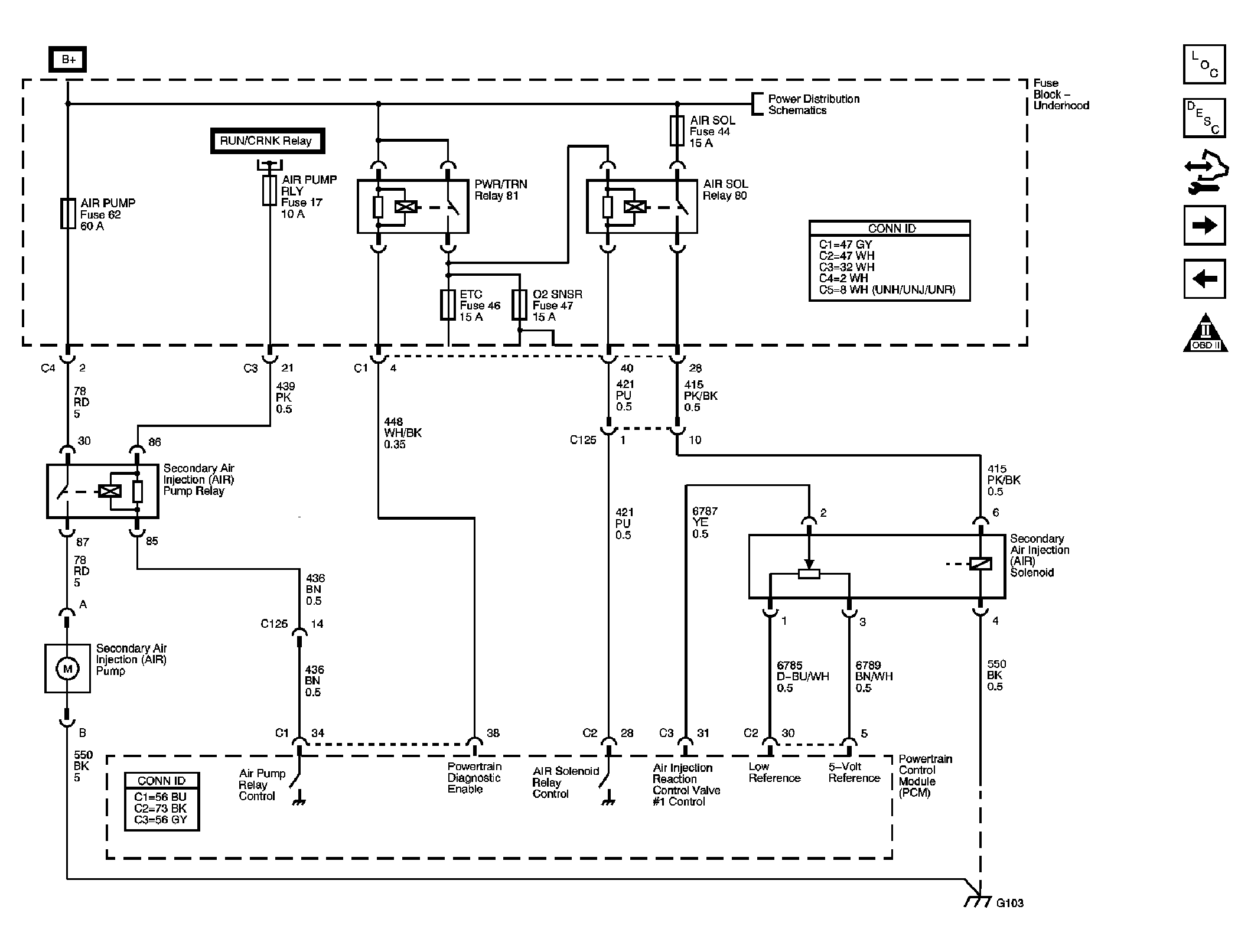

Fig 10: Device Controls Schematic - K18

Courtesy of GENERAL MOTORS CORP.

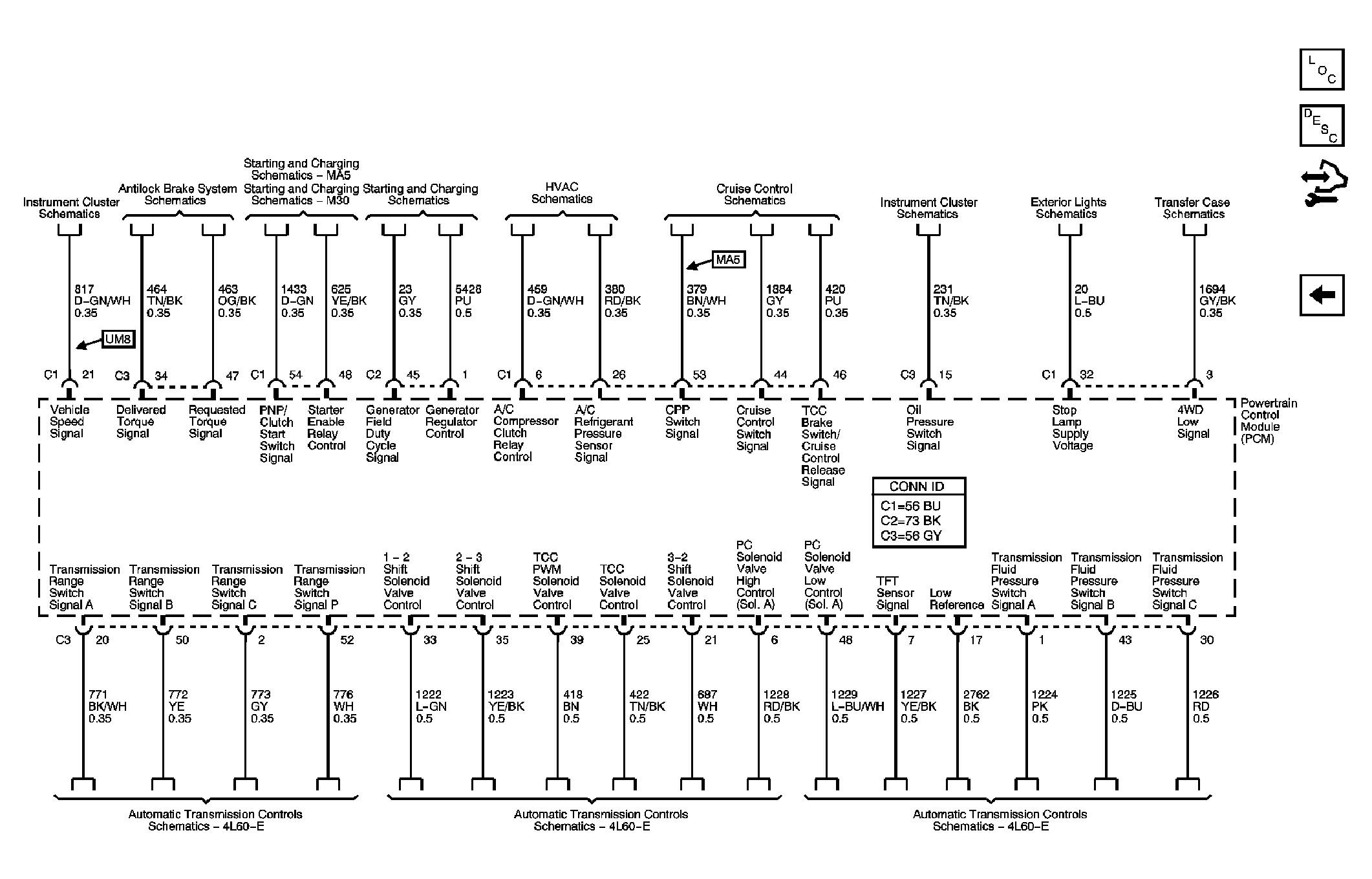

Fig 11: Controlled/Monitored Subsystem and Transmission References Schematic

Courtesy of GENERAL MOTORS CORP.
