Immobilizer Component Views

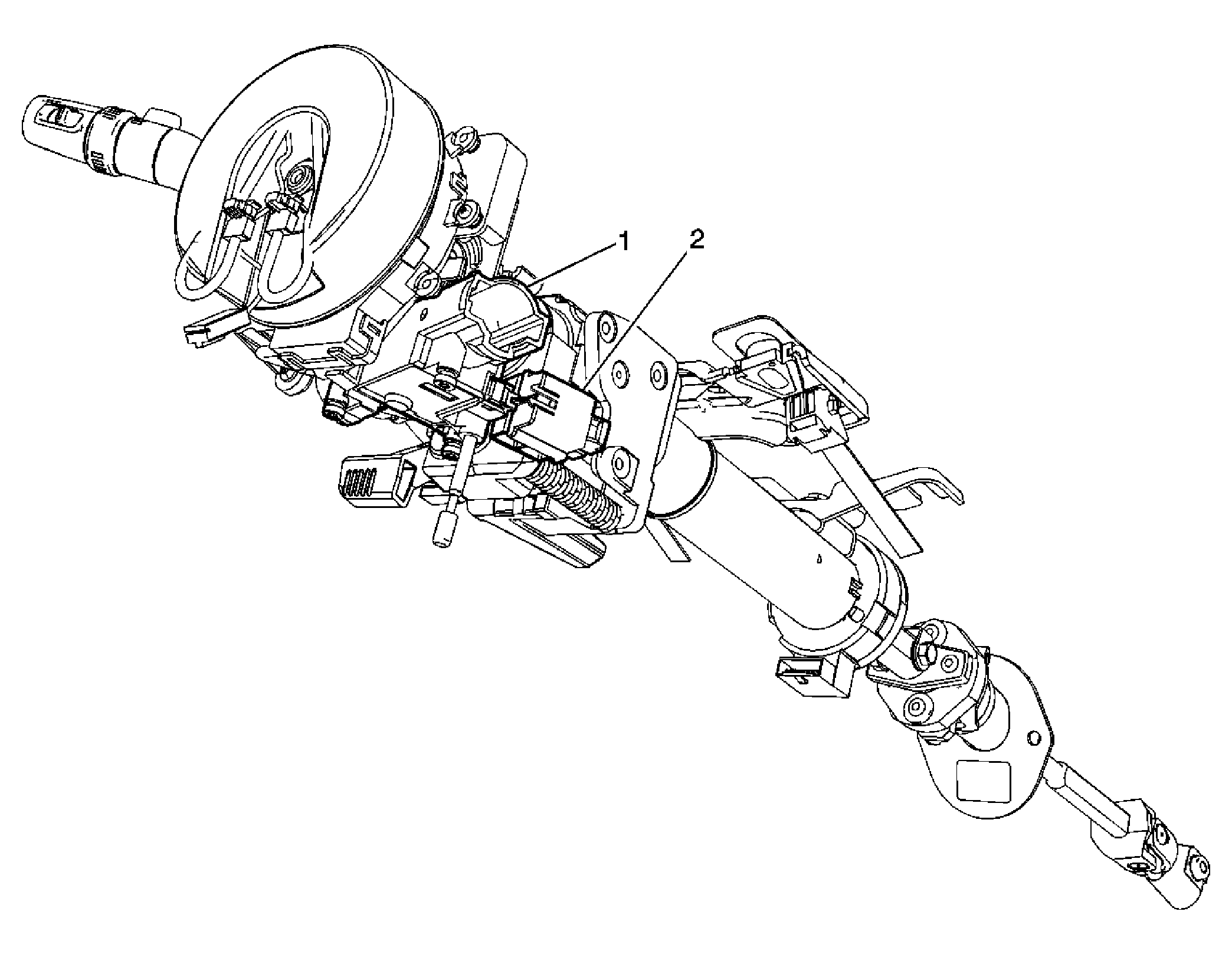

Fig 1: Steering Column Components
GM1850266Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
2 Ignition Lock Cylinder Control Actuator (M30)
