Longitudinal Accelerometer Sensor Connector End View (w/o JL4)

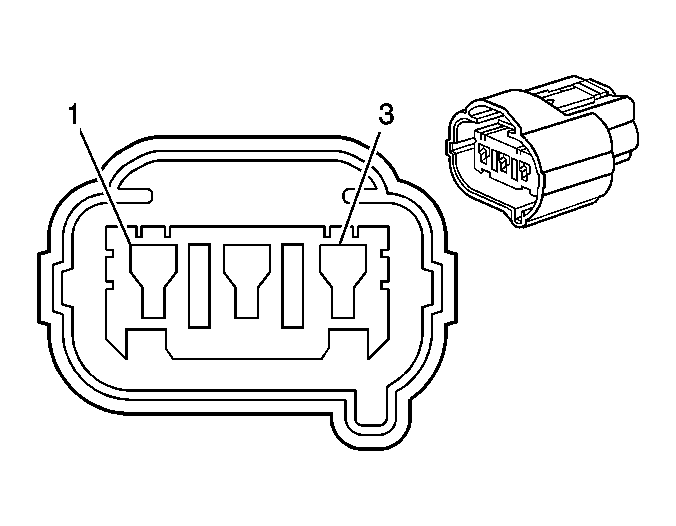

Fig 1: Input/Output Speed Sensor Connector End View (w/o JL4)
GM1290301Courtesy of GENERAL MOTORS CORP.
Longitudinal Accelerometer Sensor (w/o JL4) Connector Parts Information

Connector Part Information
  • OEM: 6189-0099
  • Service: See Catalog
  • Description: 3-Way F HX 090 Series (BK)
Terminal Part Information
  • Terminal/Tray: 8100-0460/6
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Longitudinal Accelerometer Sensor (w/o JL4) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 YE 5353 Longitudinal Accelerometer Sensor Signal
2 L-BU 2088 Low Reference
3 D-GN 2087 5V
