Vehicle Speed Sensor (VSS) Connector End View

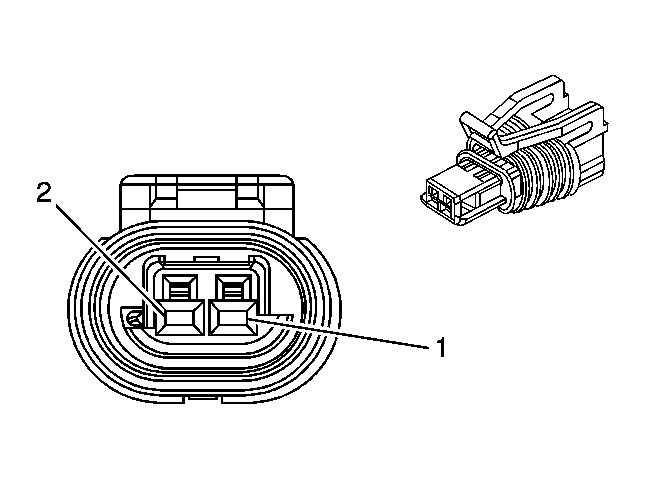

Fig 1: Vehicle Speed Sensor (VSS) Connector End View
GM1564627Courtesy of GENERAL MOTORS CORP.
Vehicle Speed Sensor (VSS) Connector Parts Information

Connector Part Information
  • OEM: 15359365
  • Service:
  • Description: 2-Way F GT 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray:
  • Core/Insulation Crimp:
  • Release Tool/Test Probe:
Vehicle Speed Sensor (VSS) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 PU 401 VSS Low Signal
2 YE 400 VSS High Signal
