Cruise Control Inoperative/Malfunctioning

Cruise Control Inoperative/Malfunctioning

Diagnostic Aids

Perform the following in order to avoid a misdiagnosis:

* Ensure that the following cruise control switches are not stuck in the engaged position:

* On/off switch
* Set/coast switch
* Resume/accel switch

* Inspect for proper operation of the stop lamps.
* Inspect for proper adjustment of the TCC brake/cruise release switch.
* Inspect for proper adjustment of the clutch release switch.
* Inspect for proper operation of the clutch pedal.
* For an intermittent condition, refer to Testing for Intermittent Conditions and Poor Connections in Diagnostic Aids. Component Tests and General Diagnostics

Test

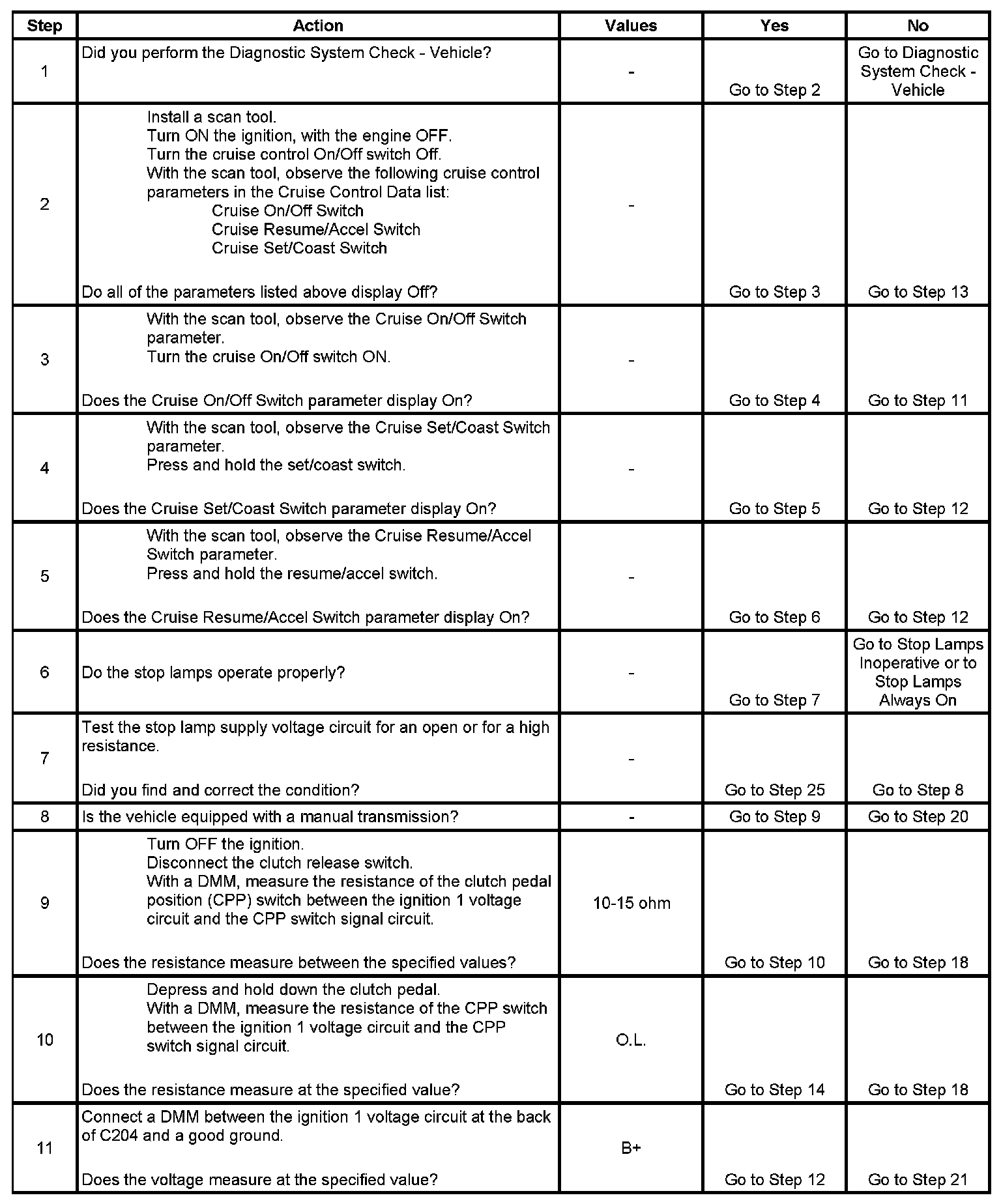

Step 1 - Step 11:

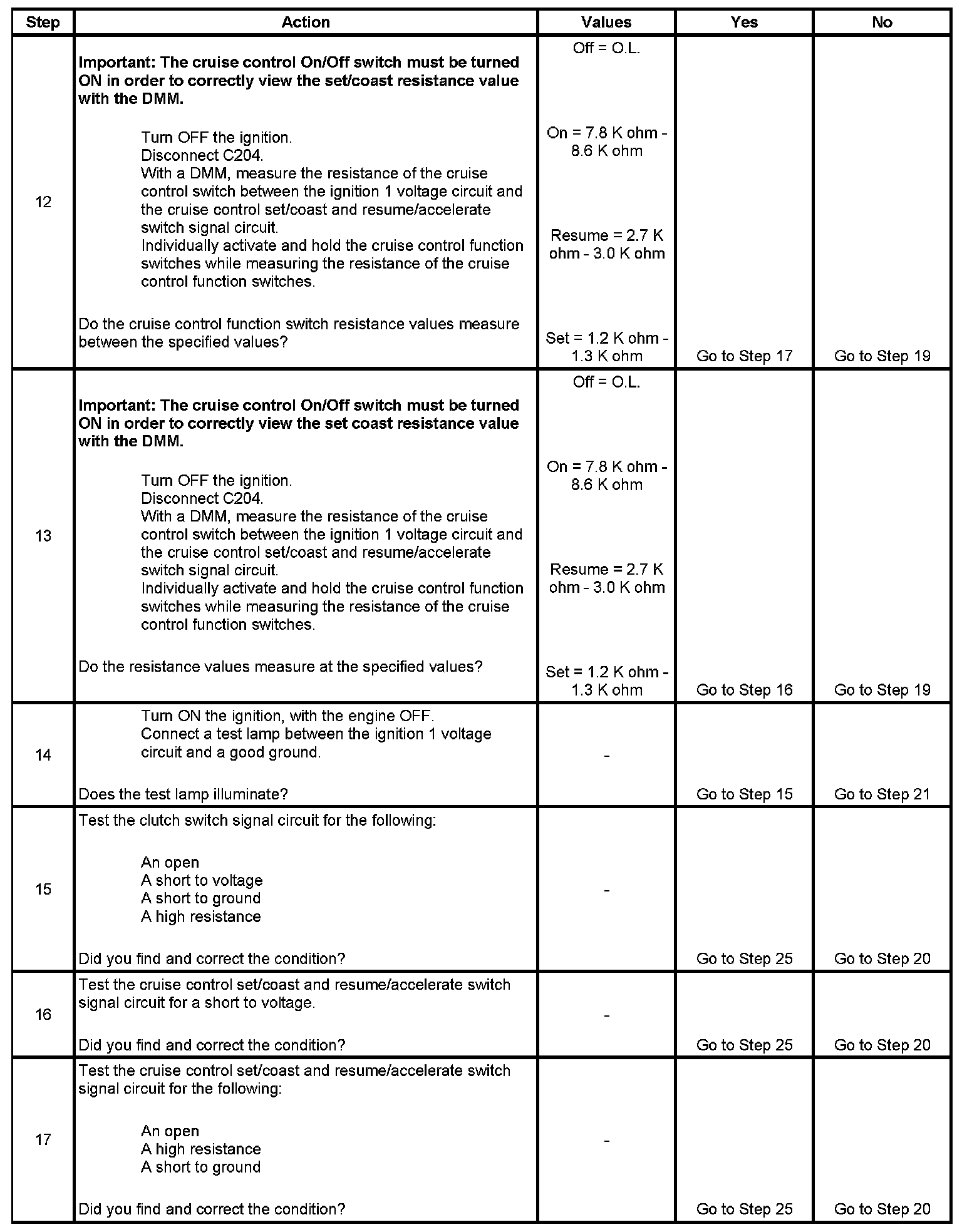

Step 12 - Step 17:

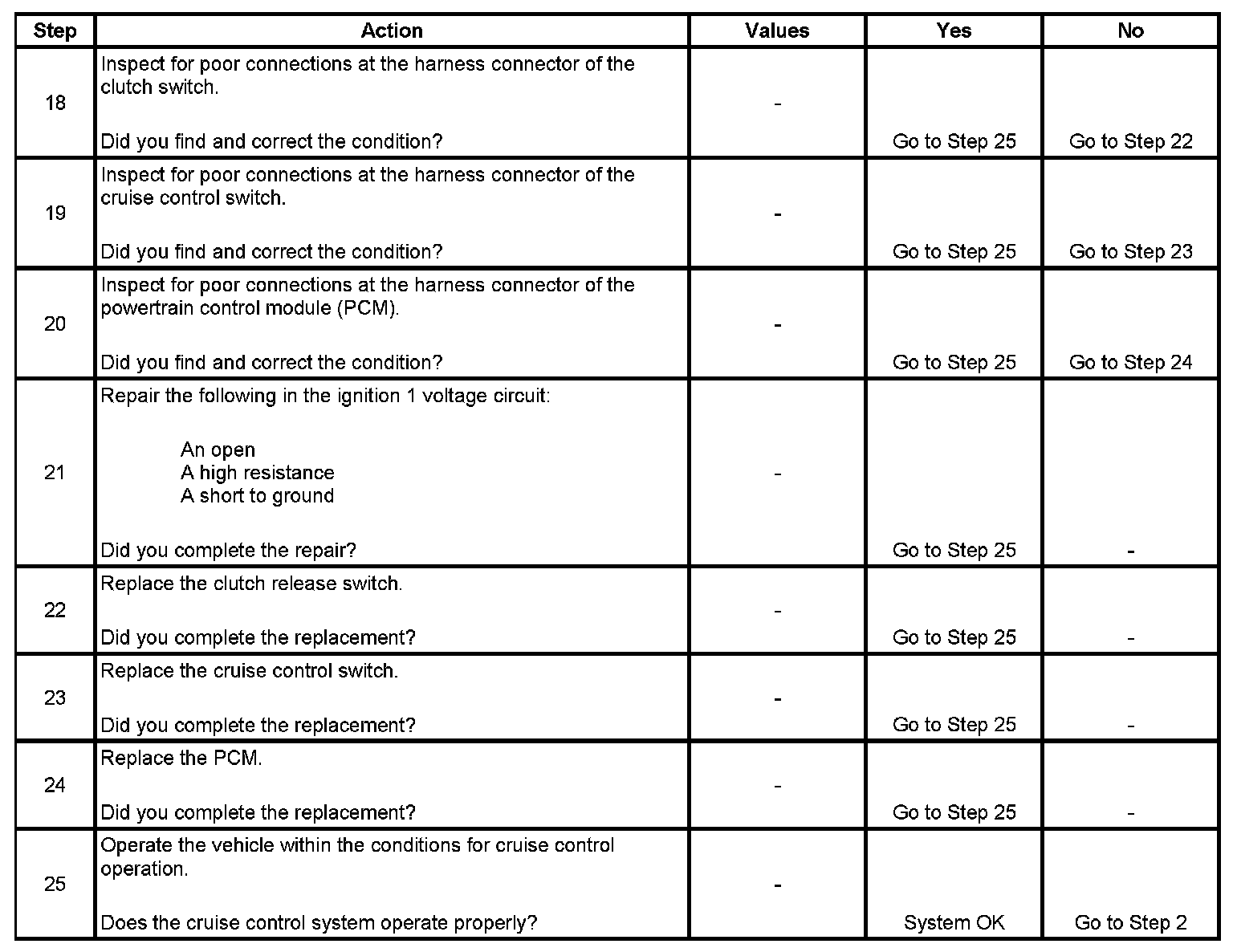

Step 18 - Step 25:
