Transfer Case

Transfer Case Control Schematics

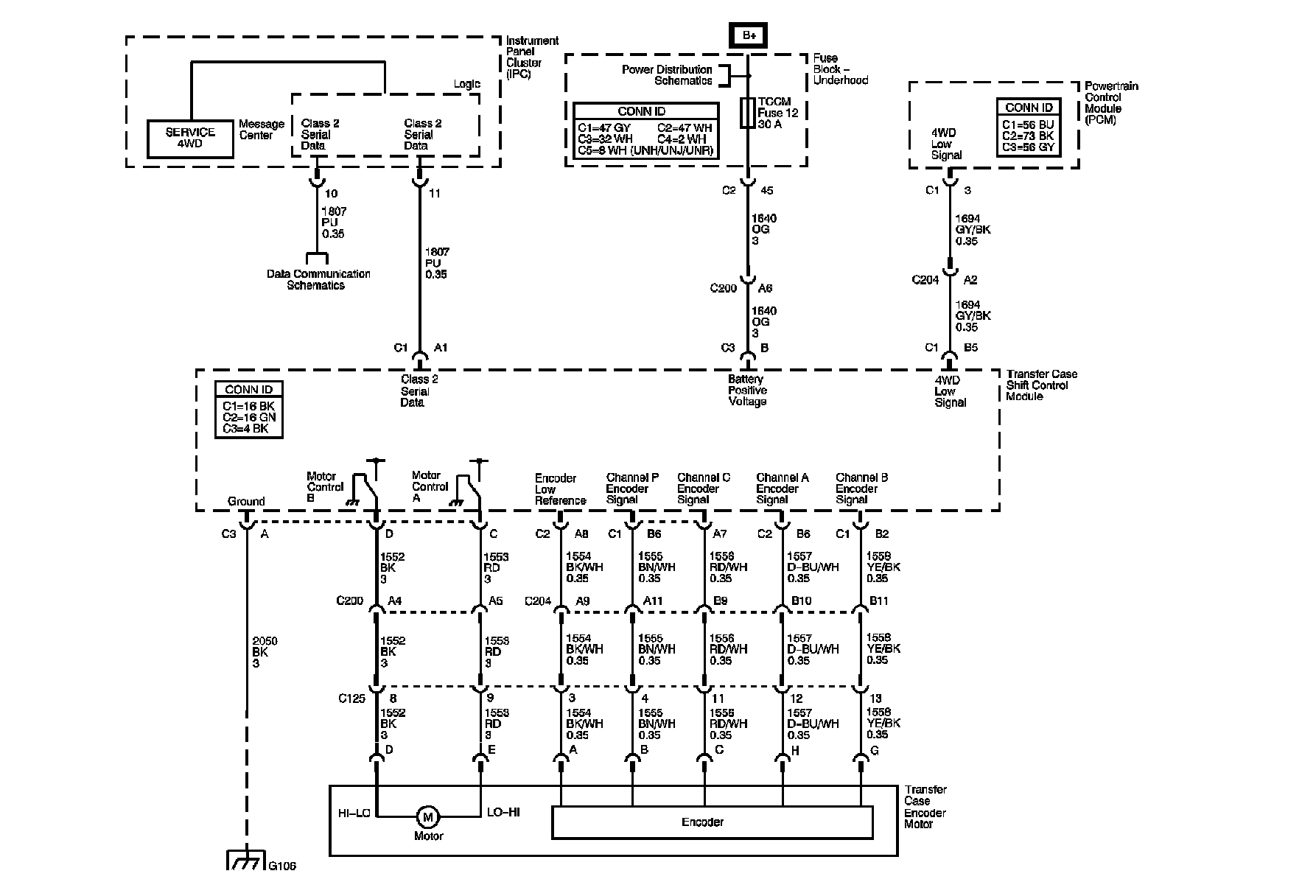

Transfer Case Control Schematics 1:

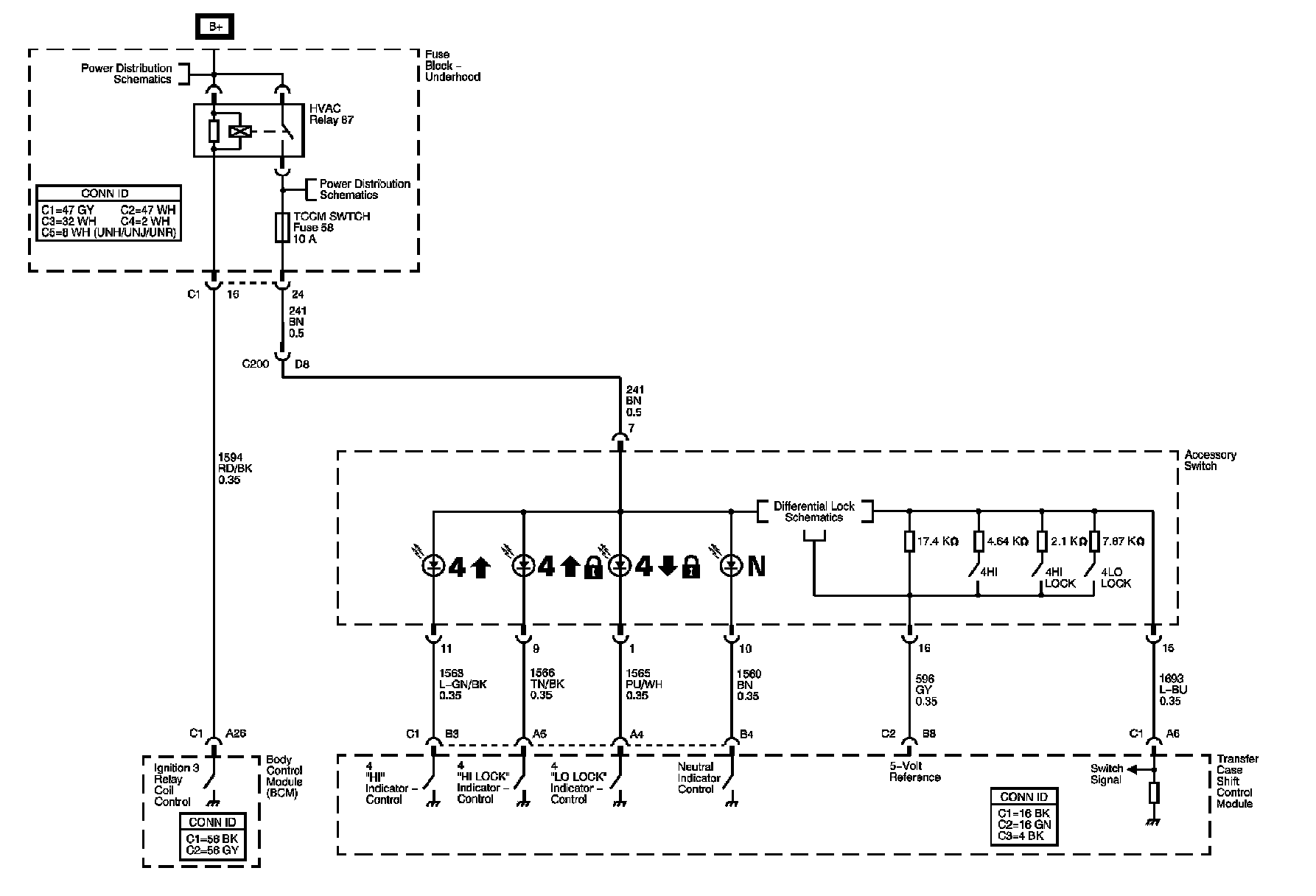

Transfer Case Control Schematics 2:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
