Air Bag Control Module: Locations

SIR Component Views

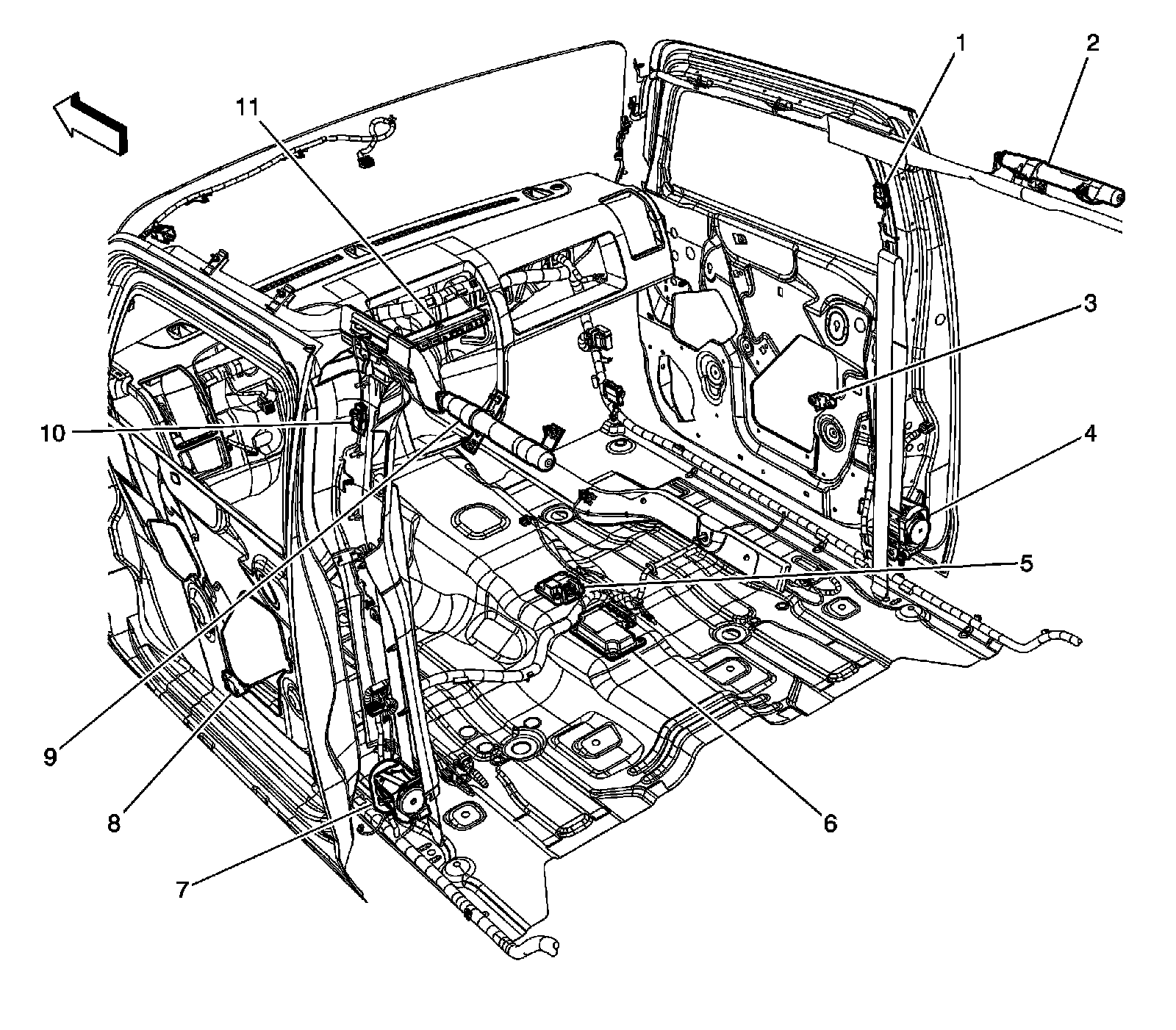

SIR Components




1 - Inflatable Restraint Roof Rail Module - Right Connector (ASF)
2 - Inflatable Restraint Roof Rail Module - Right (ASF)
3 - Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
4 - Seat Belt Pretensioner - RF
5 - Inflatable Restraint Vehicle Rollover Sensor (ASF)
6 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 - Seat Belt Pretensioner - LF
8 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
9 - Inflatable Restraint Roof Rail Module - Left (ASF)
10 - Inflatable Restraint Roof Rail Module - Left Connector (ASF)
11 - Inflatable Restraint Front Passenger Presence System (PPS) Indicator
