Trailer Hitch Replacement

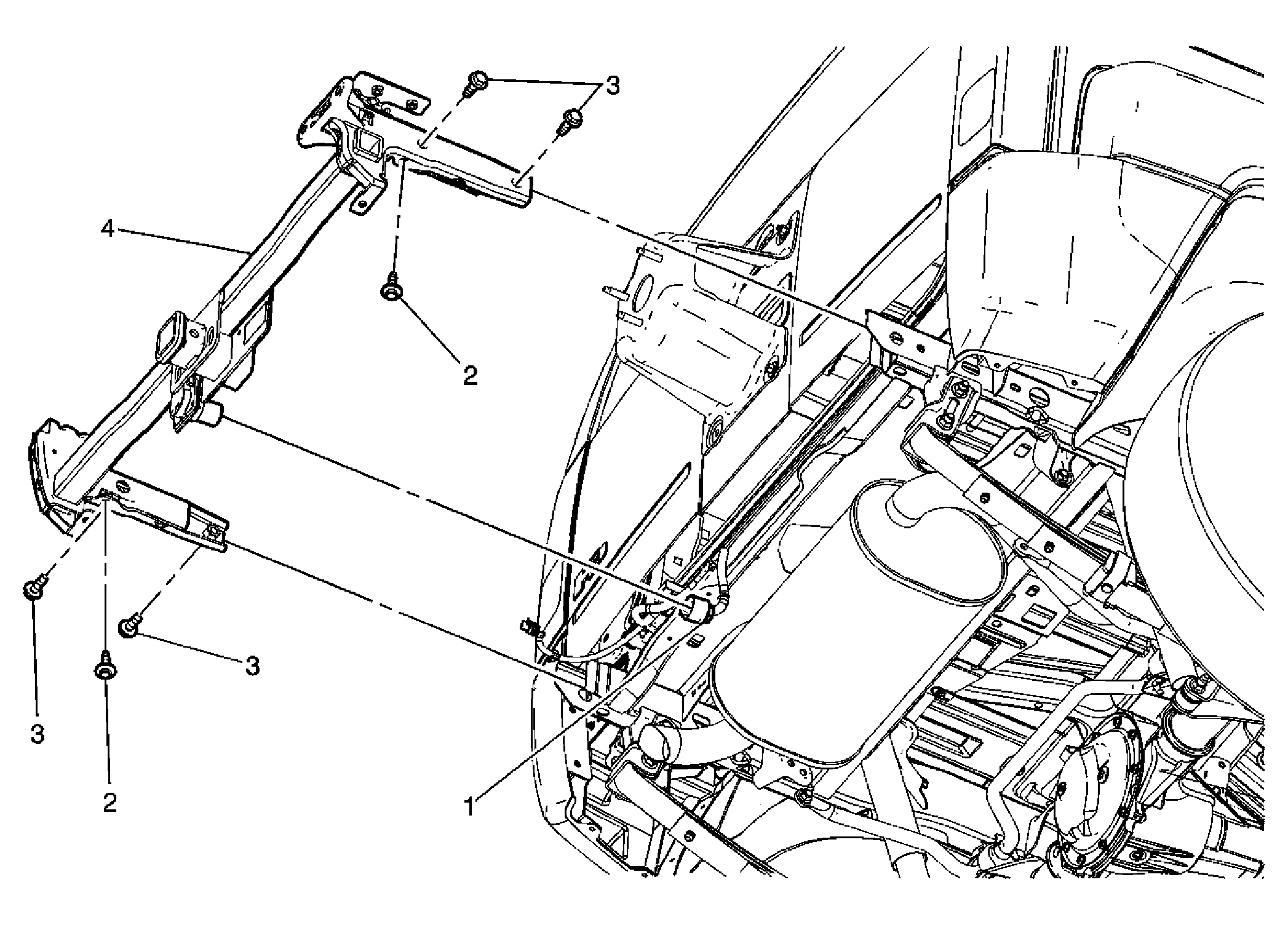

Fig 1: Replacing Trailer Hitch
GM1560068Courtesy of GENERAL MOTORS CORP.
Trailer Hitch Replacement

Callout Component Name
Preliminary Procedure:
Remove rear bumper. Refer to Rear Bumper Impact Bar Replacement .
1 Trailer Wire Connector
2 Trailer Hitch Bolts (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  100 N.m (74 lb ft)
3 Trailer Hitch Bolts (Qty: 4)

Tighten:  160 N.m (118 lb ft)
4 Trailer Hitch
