Removal Procedure

  1. Move the rear seat cushions forward.
  2. Fold the seat backs down.

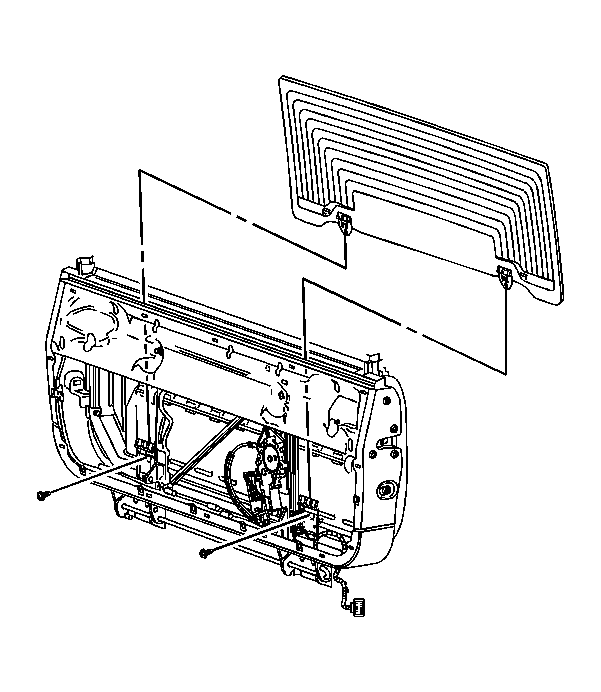

    3. Fig 1: Midgate Window
    GM1412518Courtesy of GENERAL MOTORS CORP.
  3. Remove the midgate window. Refer to Midgate Window Replacement .
  4. Remove the lower window regulator nuts.
  5. Remove the upper window regulator nuts.
  6. Carefully move the window regulator to one side.
  7. Disconnect the electrical connector to the window regulator module.

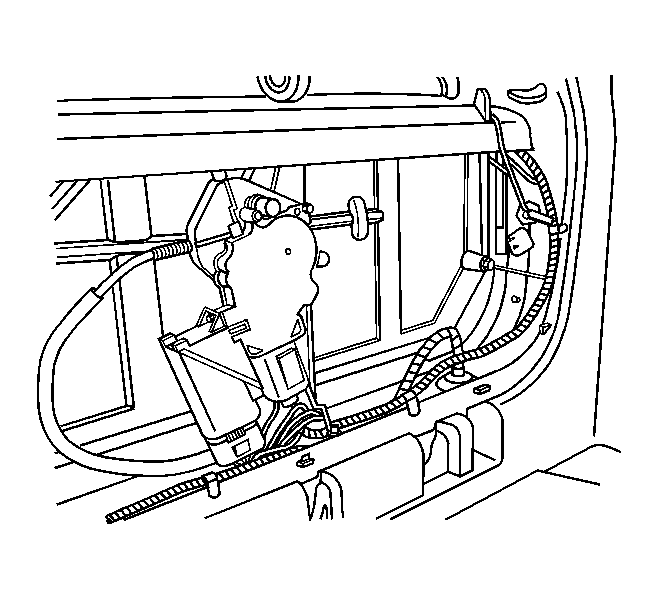

    8. Fig 2: Midgate Window Regulator
    GM1477813Courtesy of GENERAL MOTORS CORP.
  8. Remove the window regulator assembly from the midgate structure. A slight twisting motion is required for removal.
  9. Remove the 4 screws securing the window motor to the regulator assembly.
  10. Remove the window motor.
