Fuel Tank Pressure (FTP) Sensor

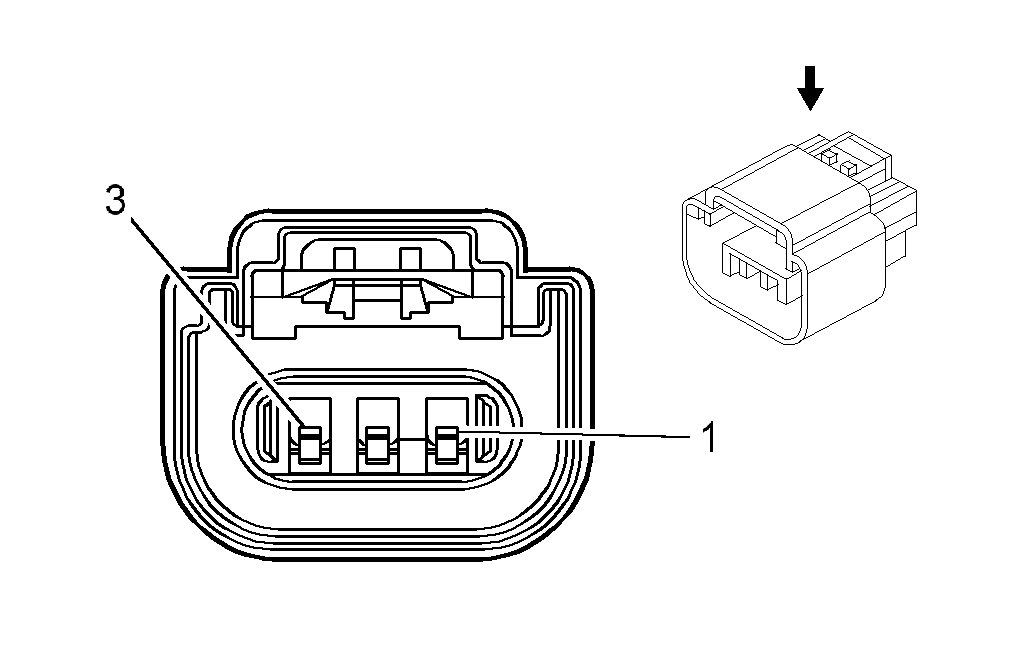

Fig 1: Fuel Tank Pressure (FTP) Sensor Connector End View
GM1710977Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13511996
  • Service: 19149288
  • Description: 3-Way F GT 150 Series (GY)
Terminal Part Information
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Pin Wire Circuit Function
1 0.5 D-GN 890 Fuel Tank Pressure Sensor Signal
2 0.5 TN/BK 6049 Low Reference
3 0.5 GY 2709 5-Volt Reference
