Video Display Replacement

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

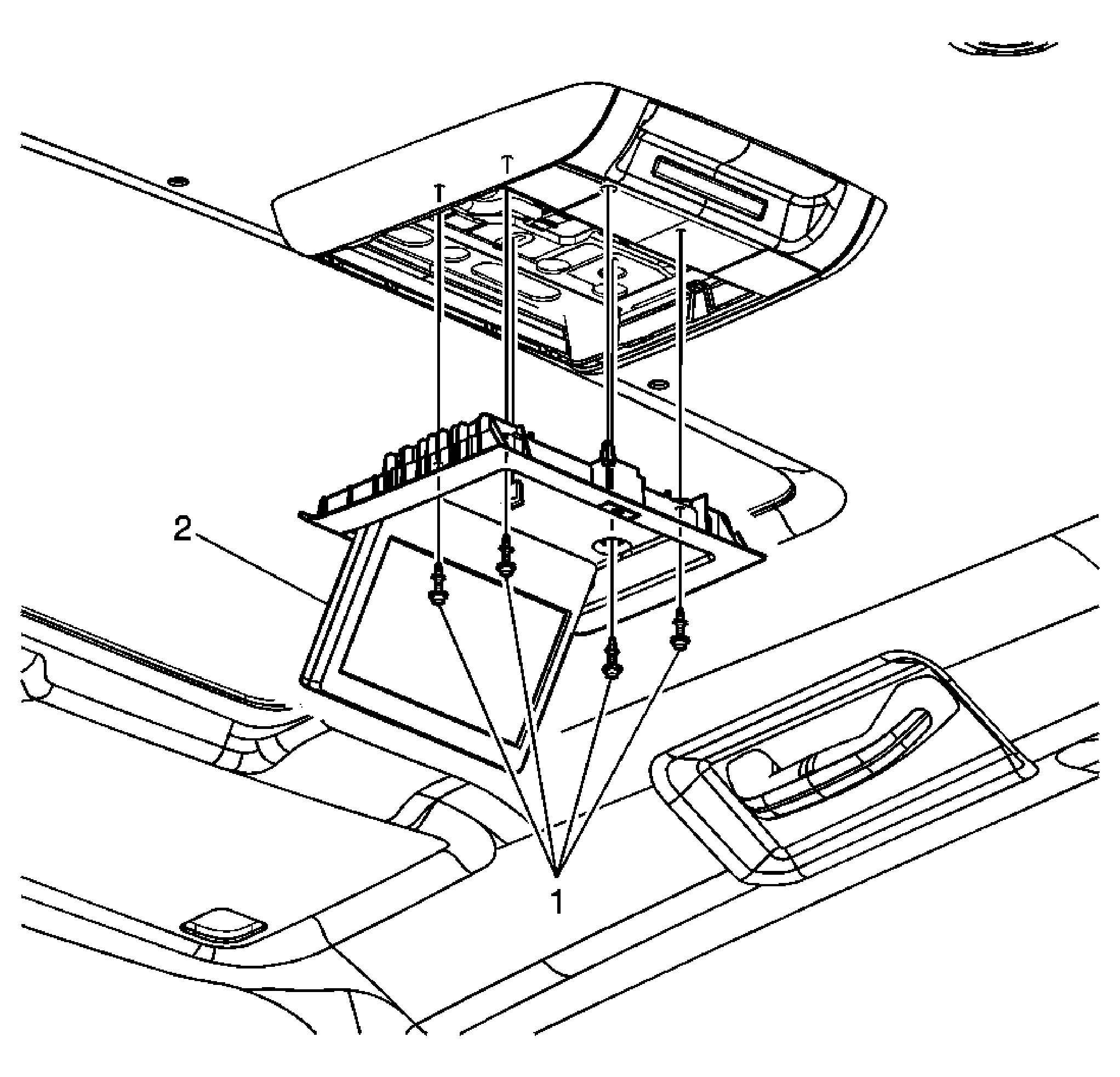

Fig 1: View Of Video Display & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Video Display Assembly Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tip: Make sure that all 4 washers on the 4 mounting screws are accounted for. If any washers are off the screw and loose, discard to prevent a rattle. The washers were required only for assembly plant installation, and can be used if still on the screw or they can be discarded. Tighten: 2 N.m (18 lb in)
2	Video Display Assembly Tip: Pull down to disengage the retainer clip and remove from the vehicle. Disconnect the electrical connector.
