Starting and Charging
Component Connector End Views

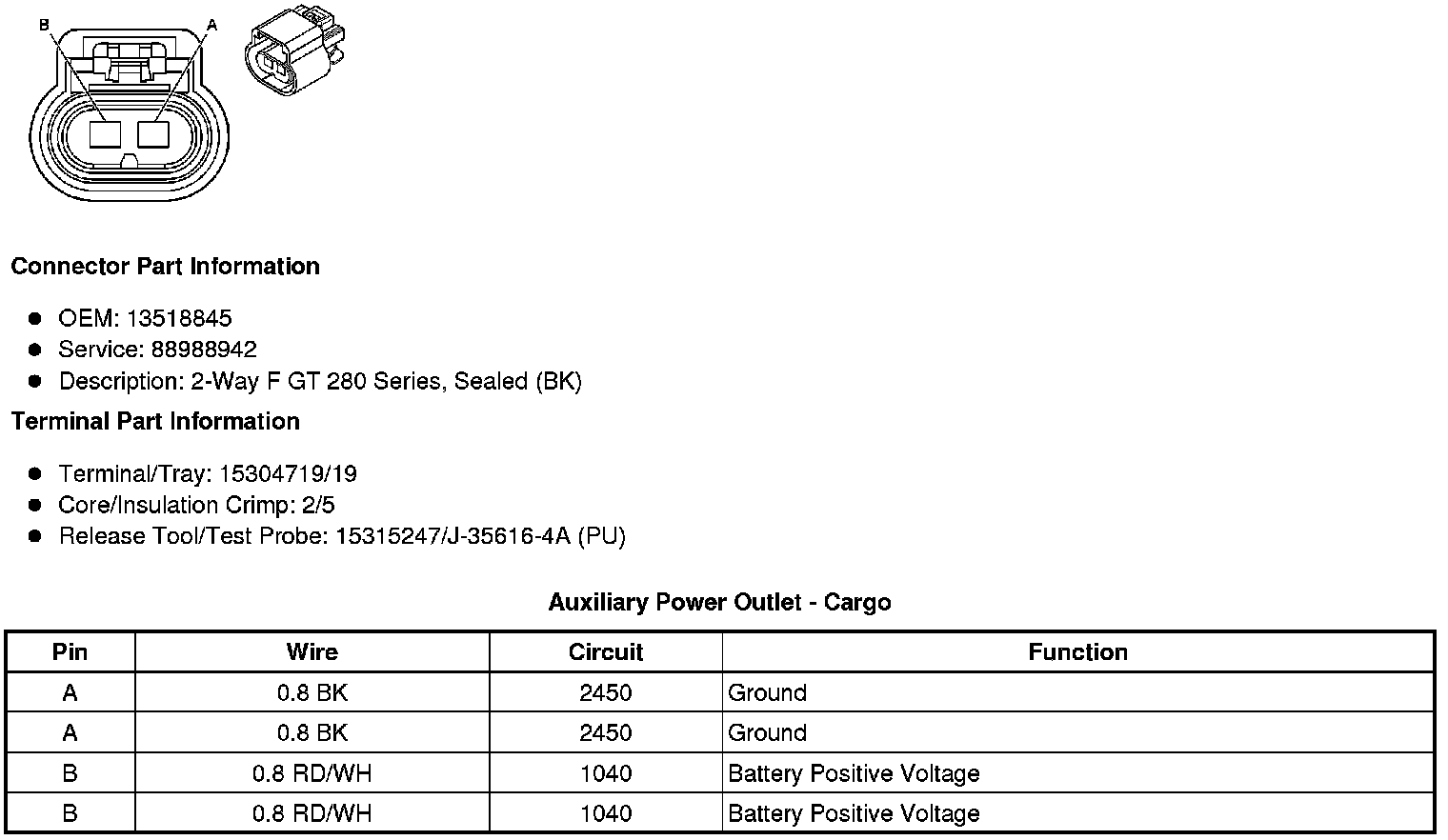

Auxiliary Power Outlet - Cargo

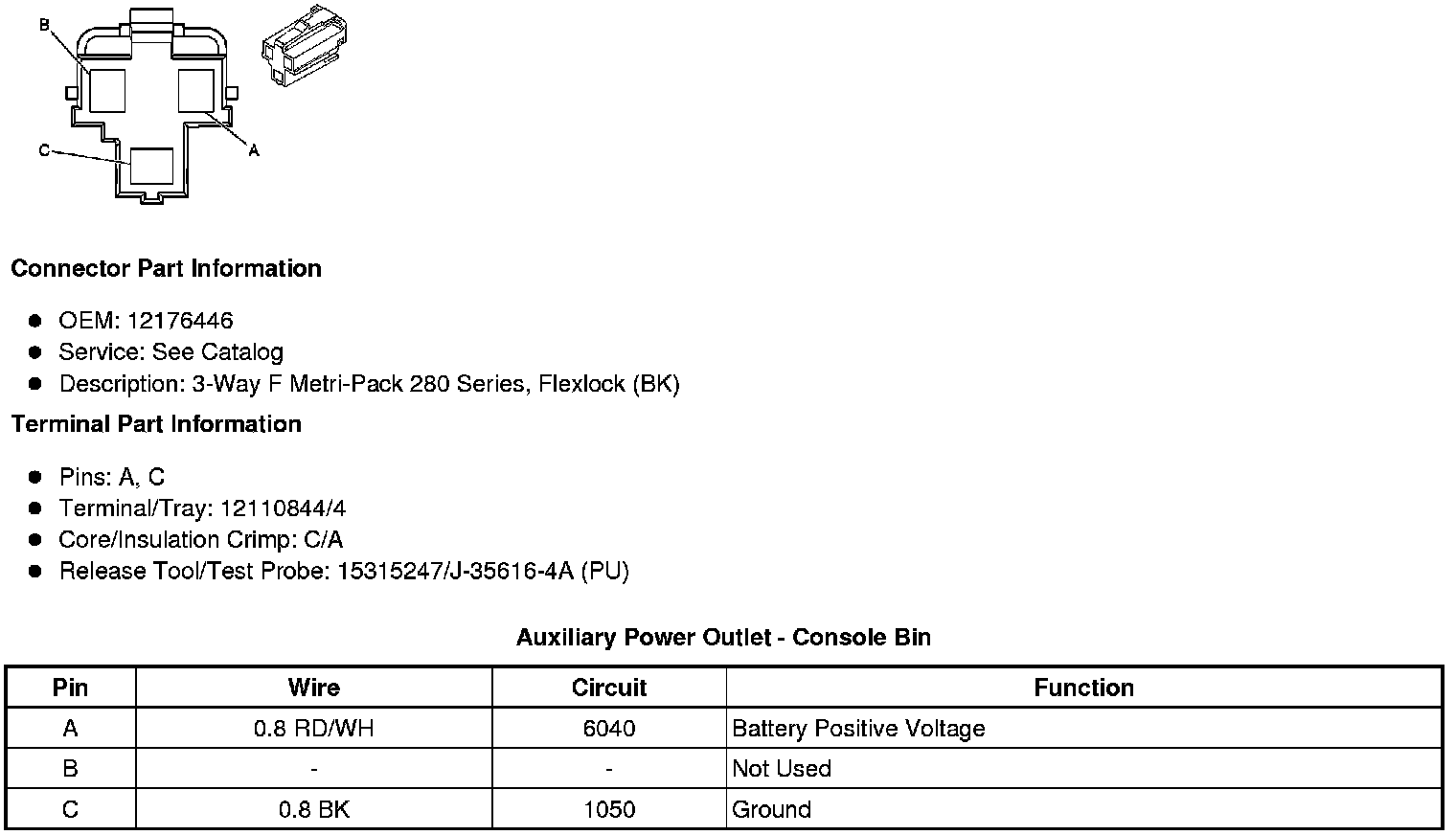

Auxiliary Power Outlet - Console Bin

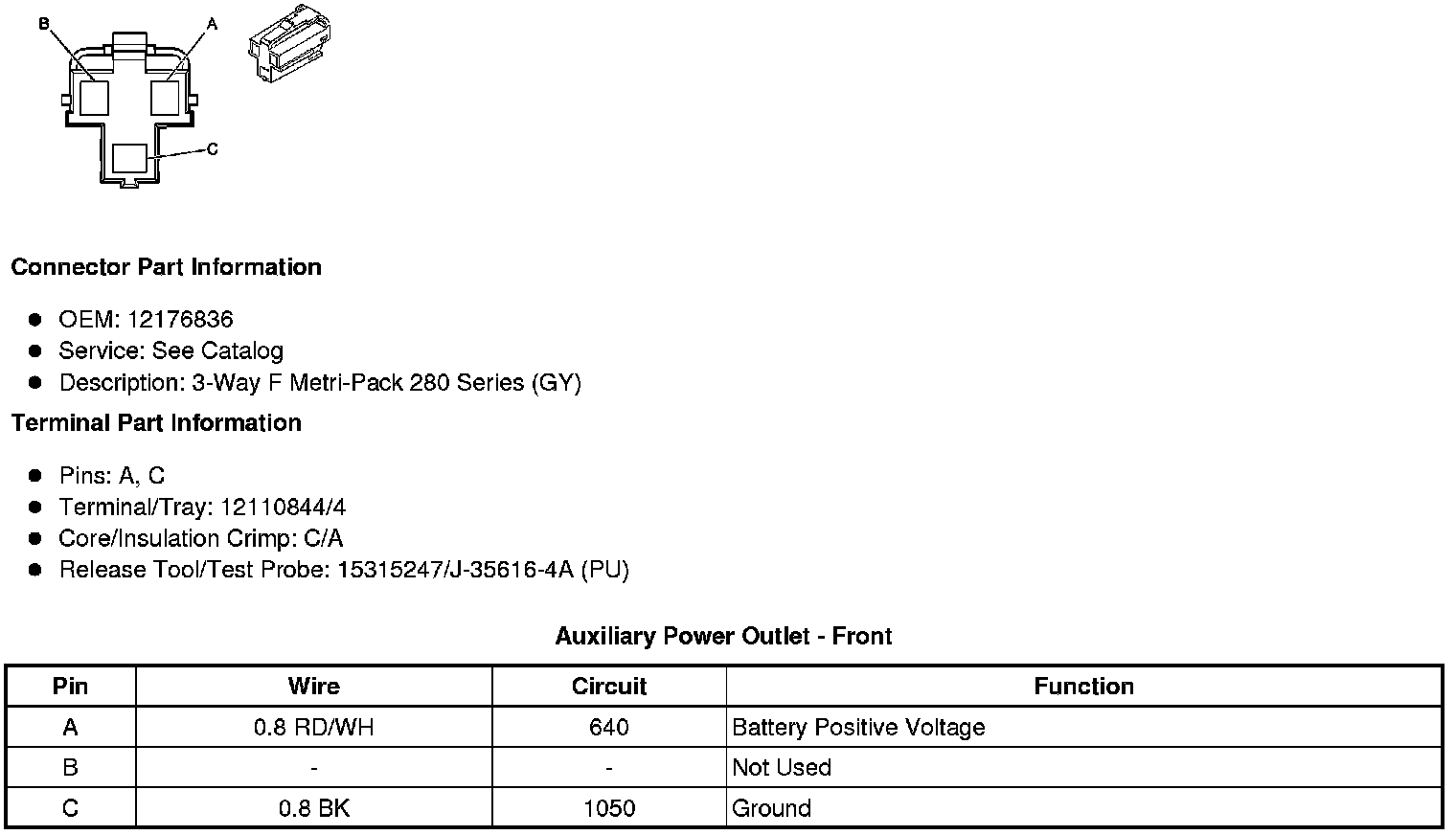

Auxiliary Power Outlet - Front
Auxiliary Power Outlet - Left
Auxiliary Power Outlet - Rear (SUV)

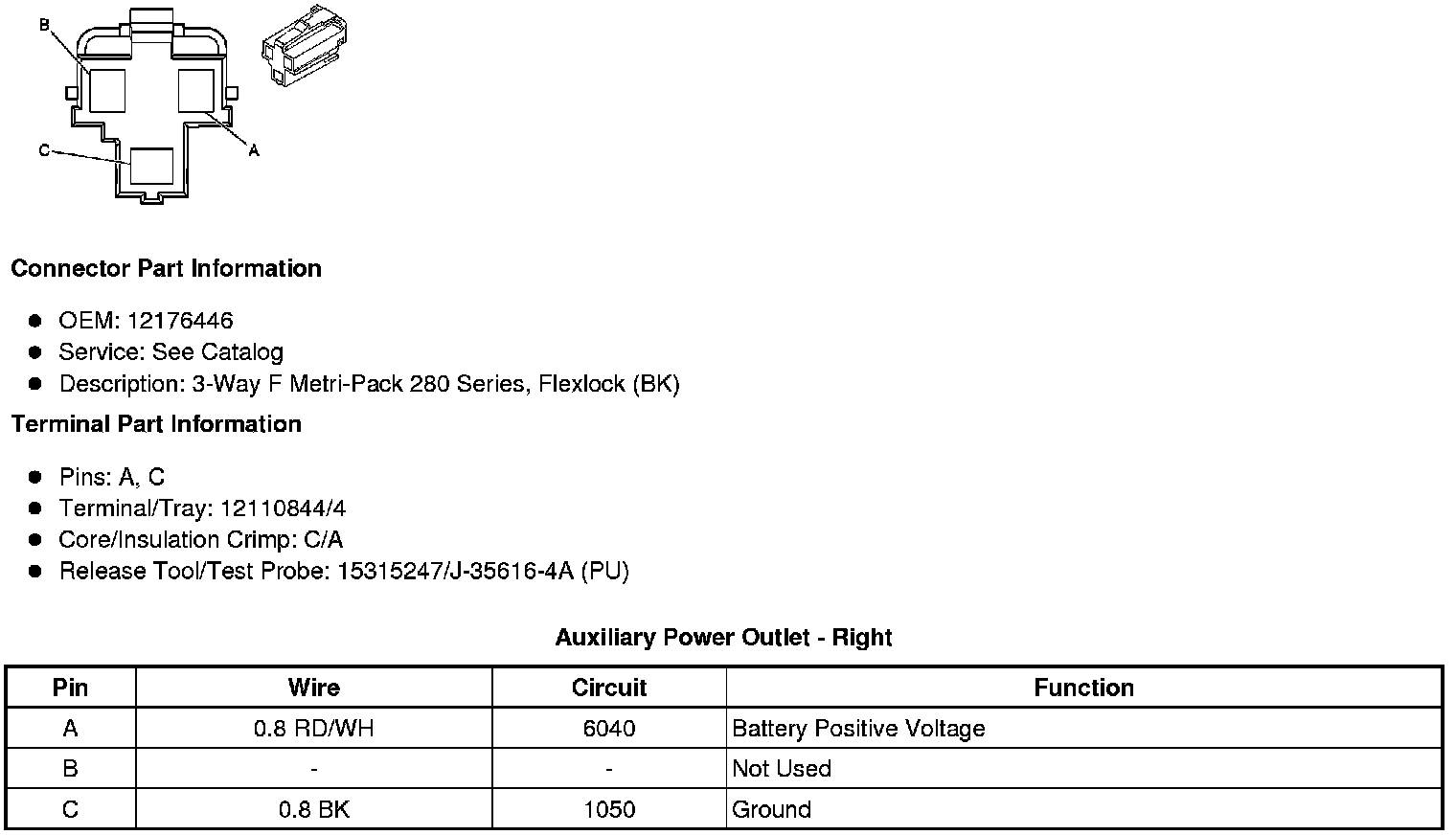

Auxiliary Power Outlet - Right
Battery Current Sensor
Generator
