Wipers and Washers



Component Connector End Views

Rear Window Wiper/Washer Module (SUV)





Rear Wiper/Washer Switch (SUV)

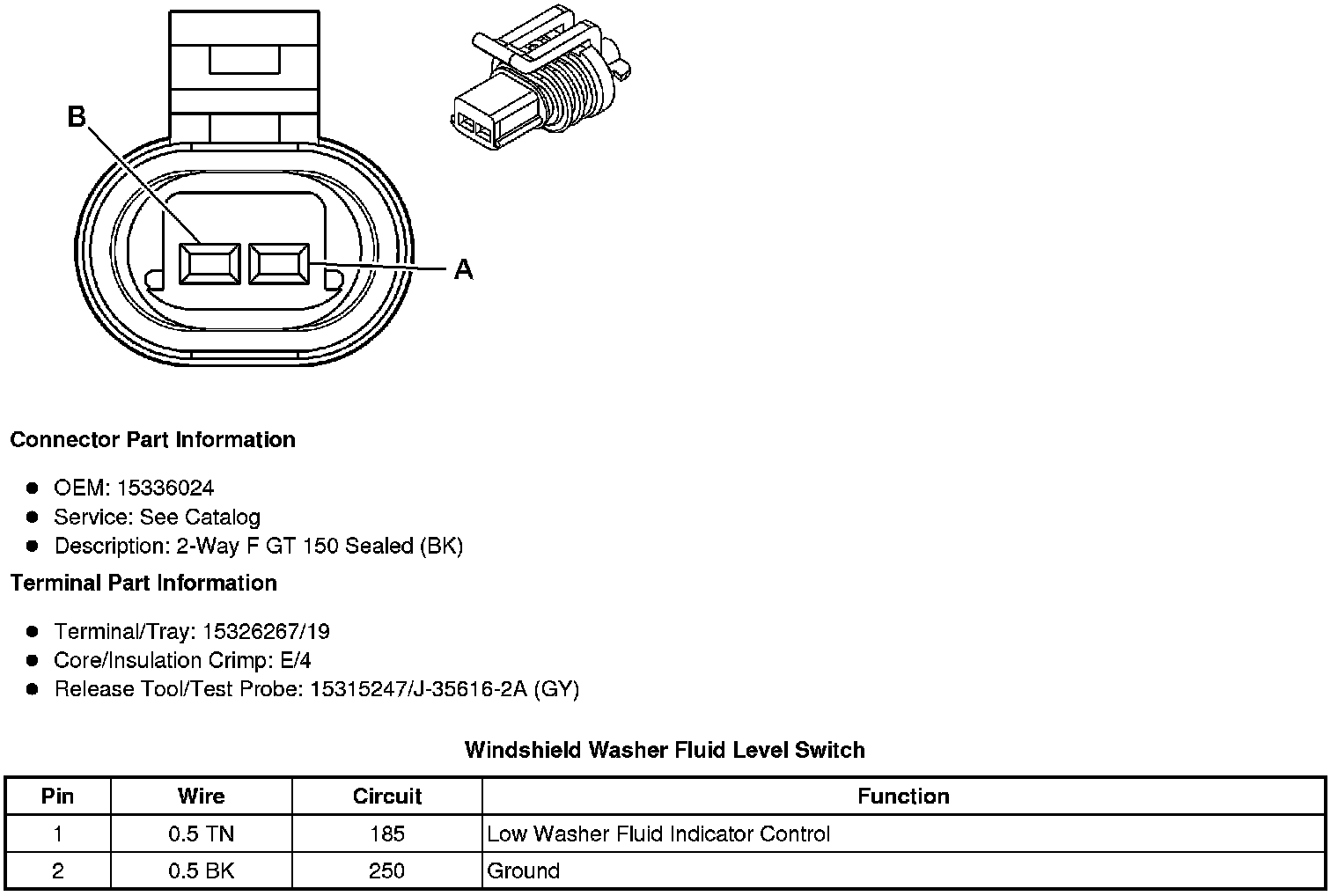

Windshield Washer Fluid Level Switch

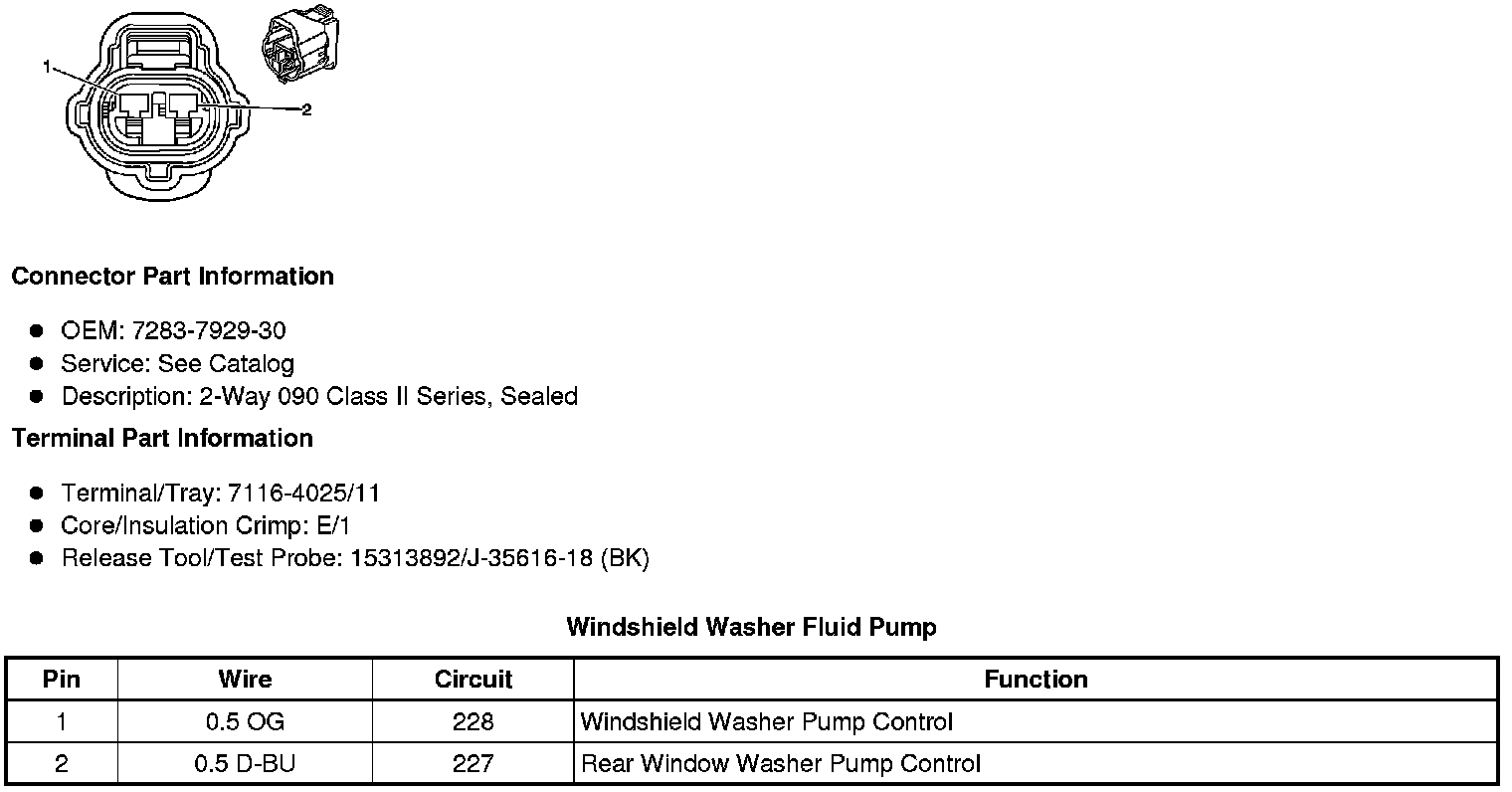

Windshield Washer Fluid Pump

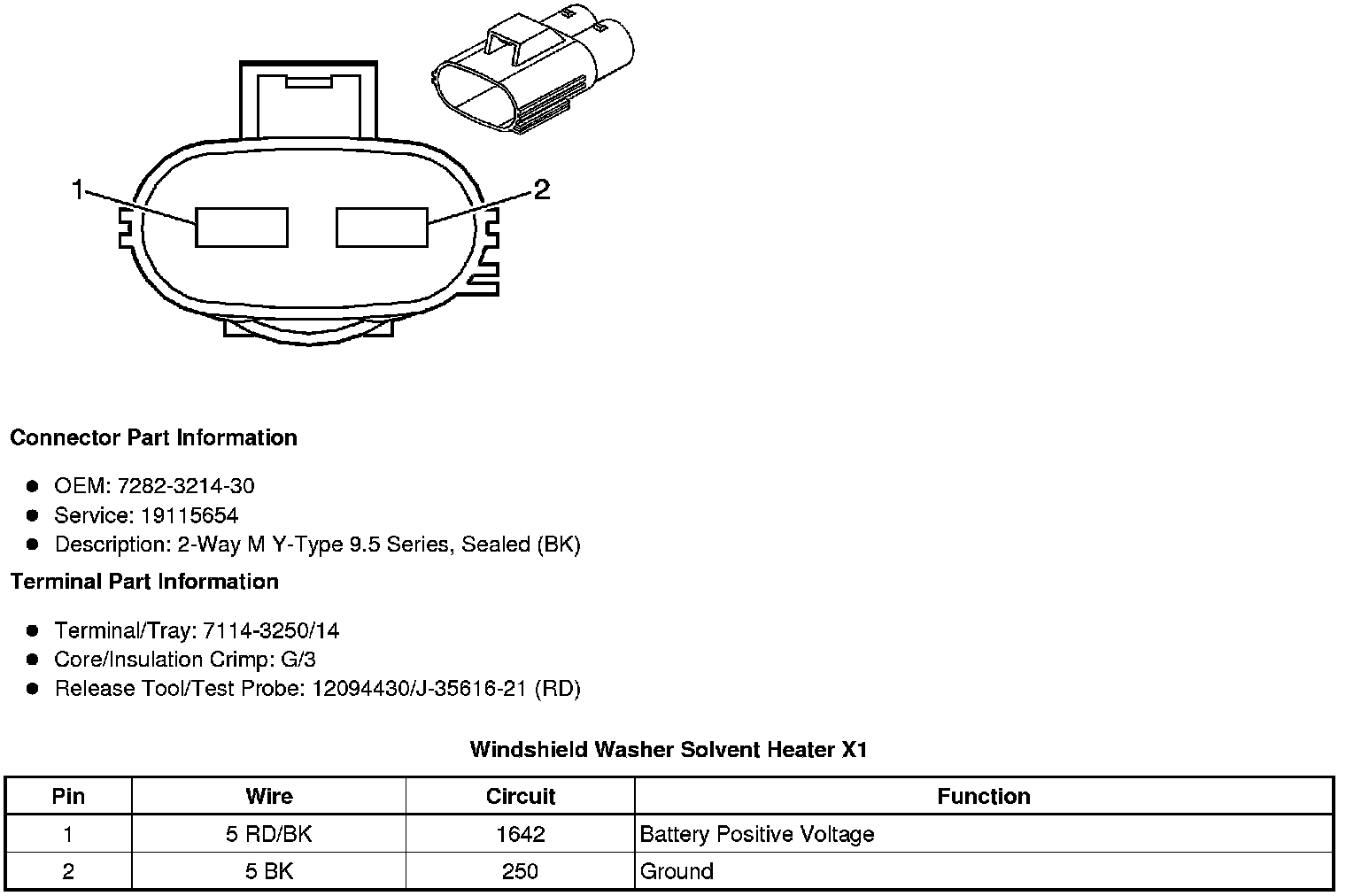

Windshield Washer Solvent Heater X1

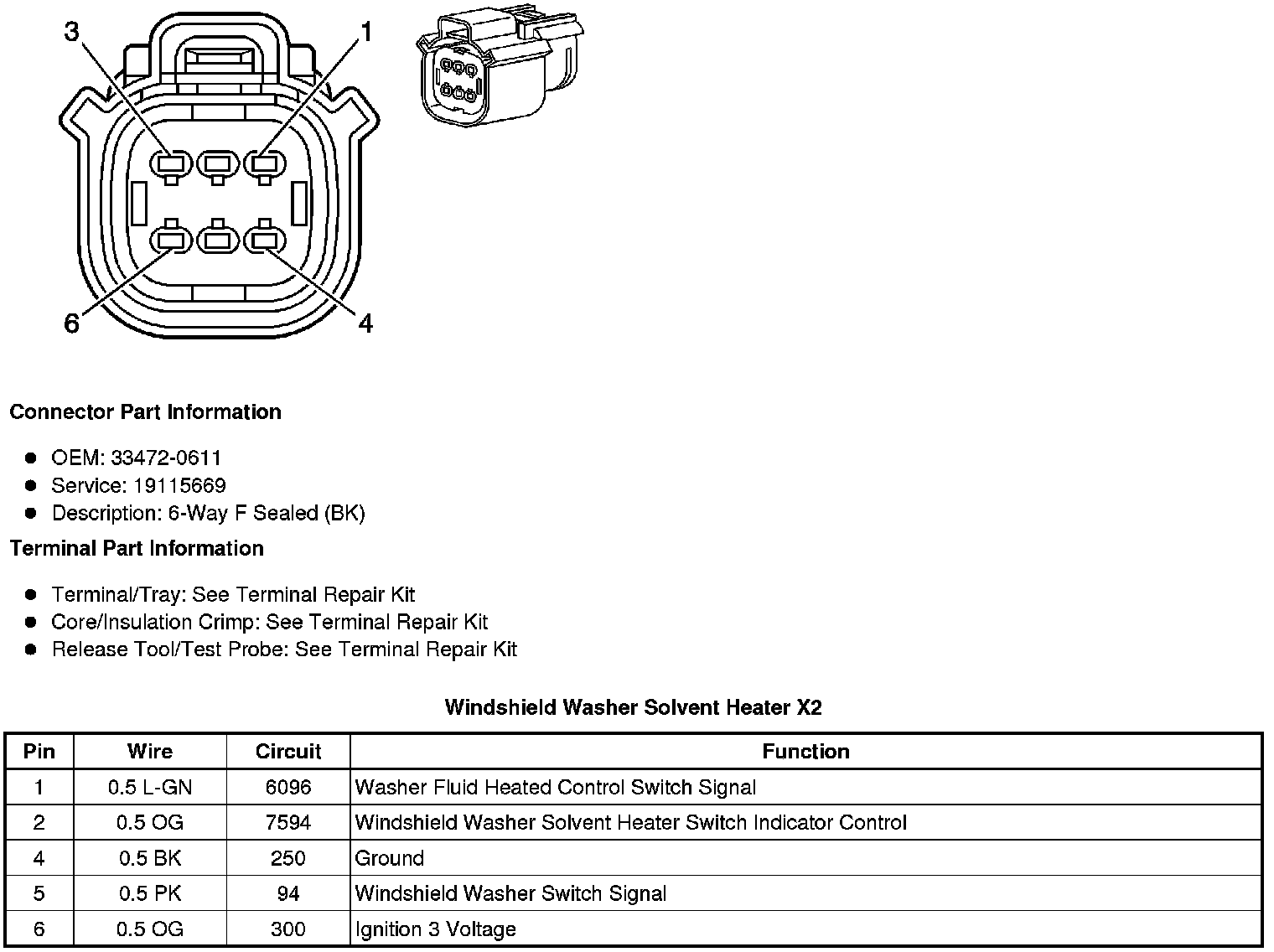

Windshield Washer Solvent Heater X2

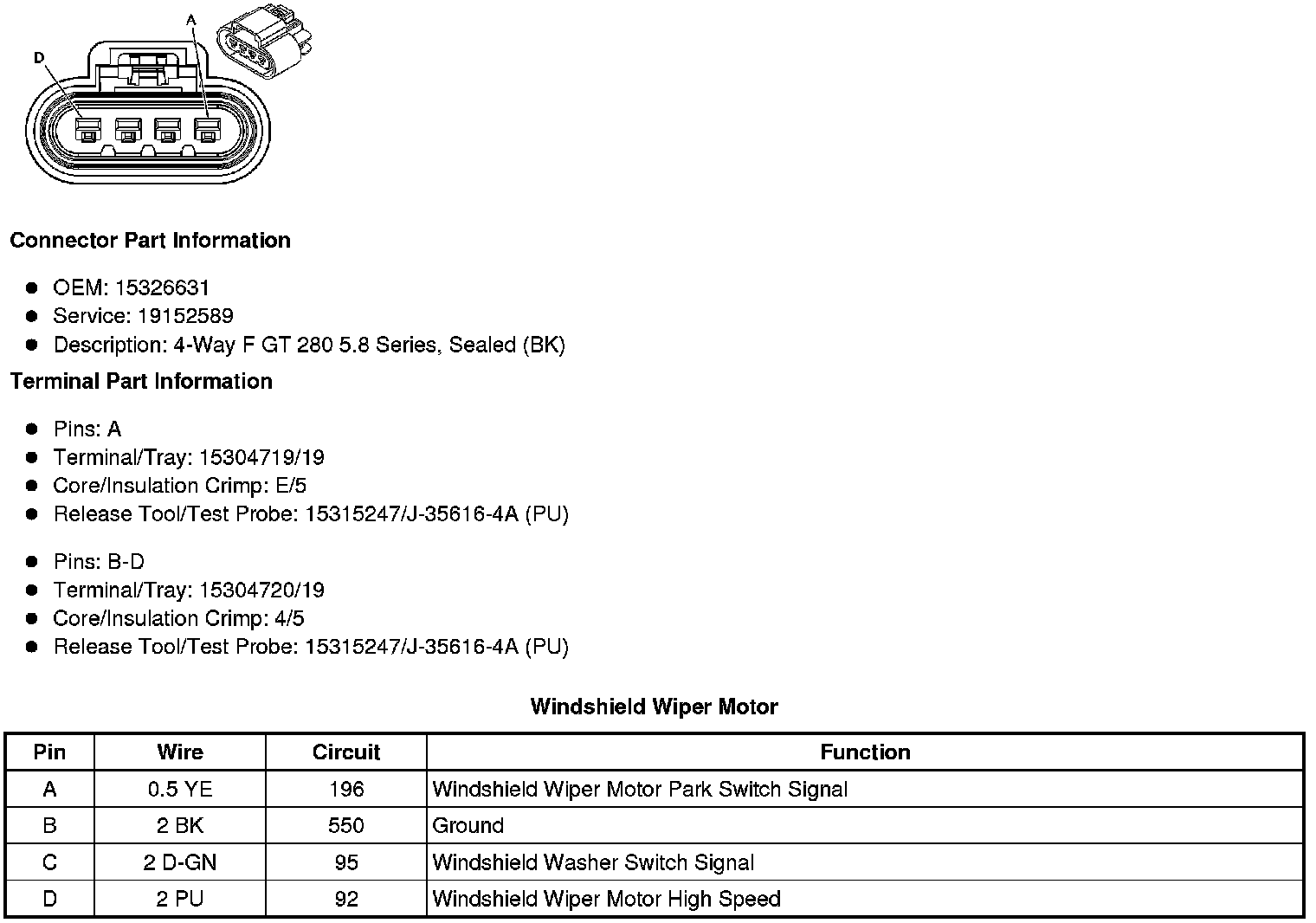

Windshield Wiper Motor
