Cabin Temperature Sensor / Switch: Service and Repair

Inside Air Temperature Sensor Replacement

Removal Procedure

1. Remove the left windshield garnish molding. Refer to Windshield Side Garnish Molding Replacement (Windshield Side Garnish Molding Replacement) .
2. Remove the left sunshade. Refer to Sunshade Replacement (Sunshade Replacement) .
3. Gently pull down the headliner.
4. Remove the inside air temperature sensor from the headliner.

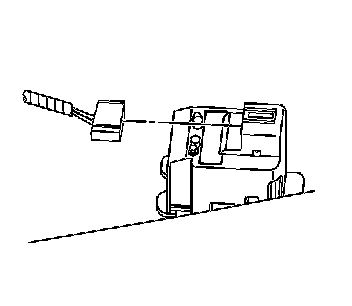

5. Disconnect the electrical connector from the inside air temperature sensor.




6. Remove the inside air temperature sensor from the headliner.



Installation Procedure





1. Install the inside air temperature sensor to the headliner.




2. Connect the electrical connector to the inside air temperature sensor.
3. Install the left sunshade. Refer to Sunshade Replacement (Sunshade Replacement) .
4. Install the left windshield garnish molding. Refer to Windshield Side Garnish Molding Replacement (Windshield Side Garnish Molding Replacement) .
