Yaw and Lateral Accelerometer Sensor

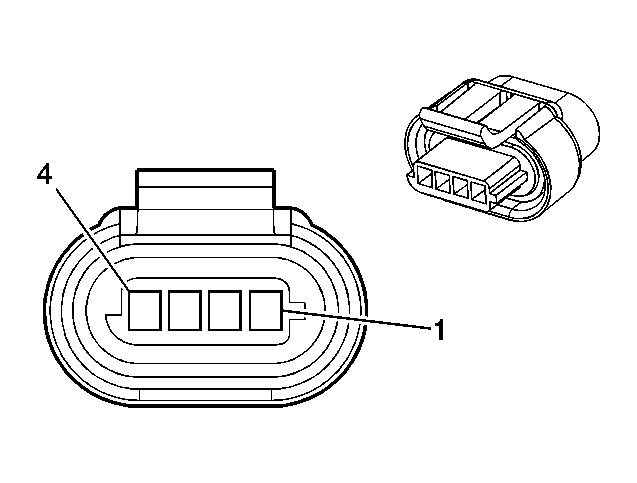

Fig 1: Yaw Rate/Lateral Accelerometer Sensor Connector End View
GM1566785Courtesy of GENERAL MOTORS CORP.
Yaw and Lateral Accelerometer Sensor

Pin Wire Circuit Function
1 0.35 BN 441 Ignition Voltage
2 0.35 D-BU 716 CAN HI
3 0.35 L-BU 2088 CAN LO
4 0.35 BK/WH 1151 Ground
Connector Part Information
  • OEM: 6189-0551
  • Service: 15165777
  • Description: 4-Way F DL 040 Sealed (WH)
Terminal Part Information
  • Terminal/Tray: 8100-1466/6
  • Core/Insulation Crimp: 7/7
  • Release Tool/Test Probe: 15315247/J-35616-64A (L-BU)
