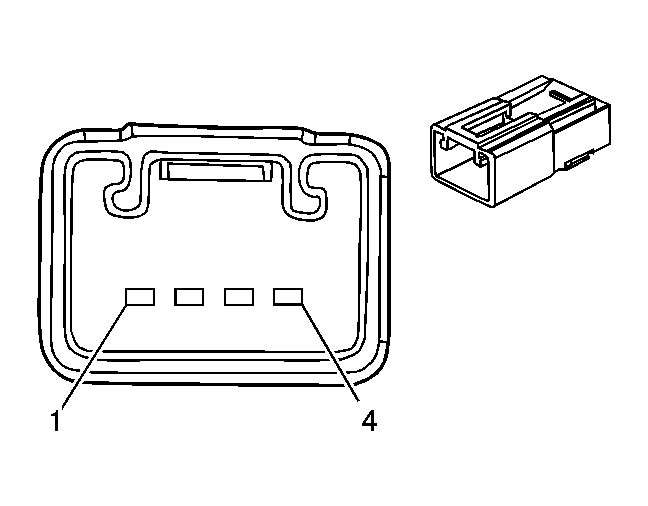

Outside Rearview Mirror - Driver
Courtesy of GENERAL MOTORS CORP. Outside Rearview Mirror - Driver
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 WH |
81 |
Driver Mirror Motor Right Control |
| 2 |
0.35 GY |
90 |
Driver/Passenger Mirror Motor Down/Left Control |
| 3 |
- |
- |
Not Used |
| 4 |
0.35 YE |
88 |
Driver Mirror Motor Up Control |
Connector Part Information
- OEM: 6098-2158
- Service: 88988638
- Description: 4-Way M DL Series (WH)
|
Terminal Part Information
- Terminal/Tray: 8100-2512/6
- Core/Insulation Crimp: E/2
- Release Tool/Test Probe: 15315247/J-35616-17 (L-GN)
|
