Radio/Navigation System Schematics

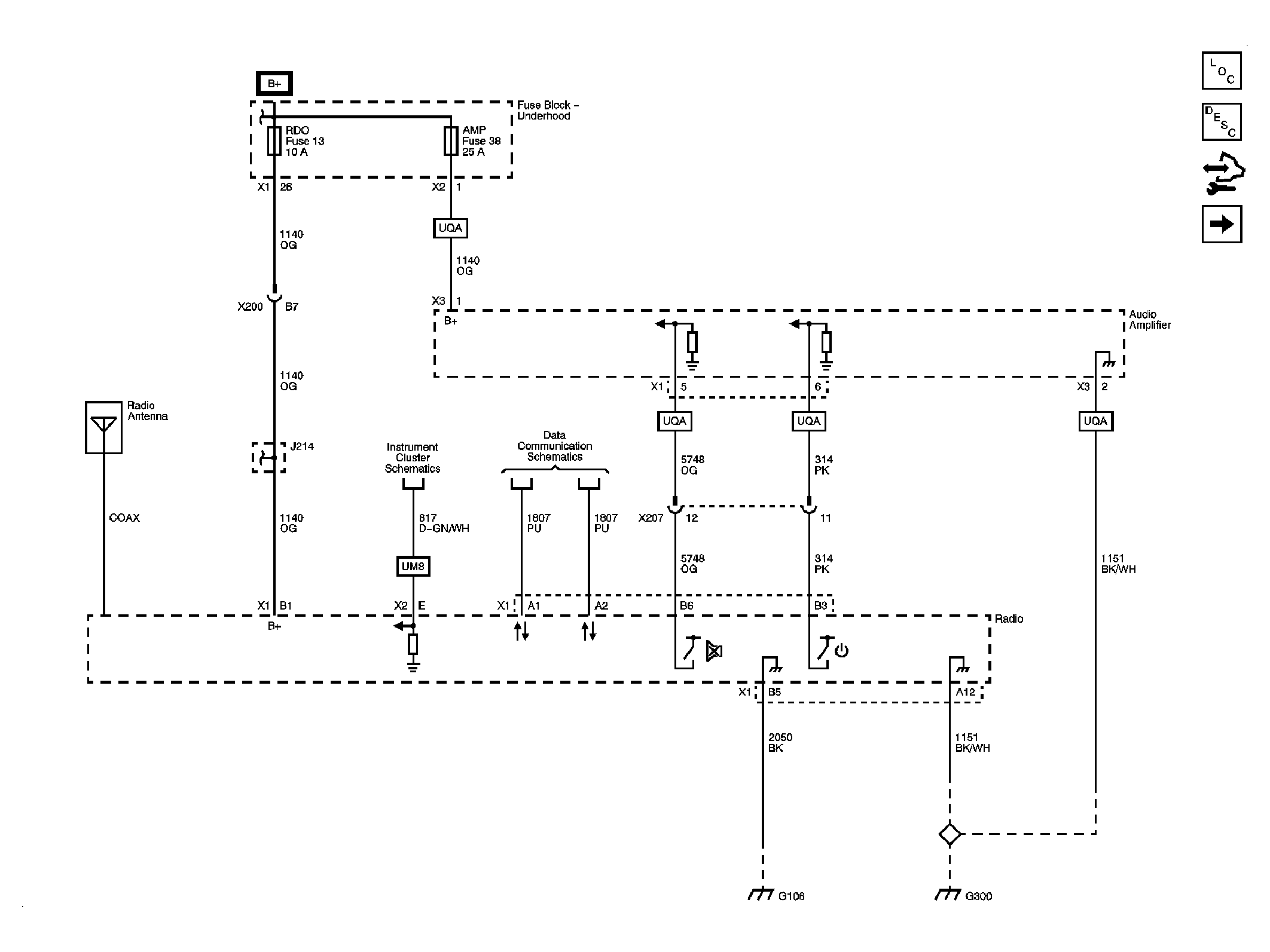

Fig 1: Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS CORP.

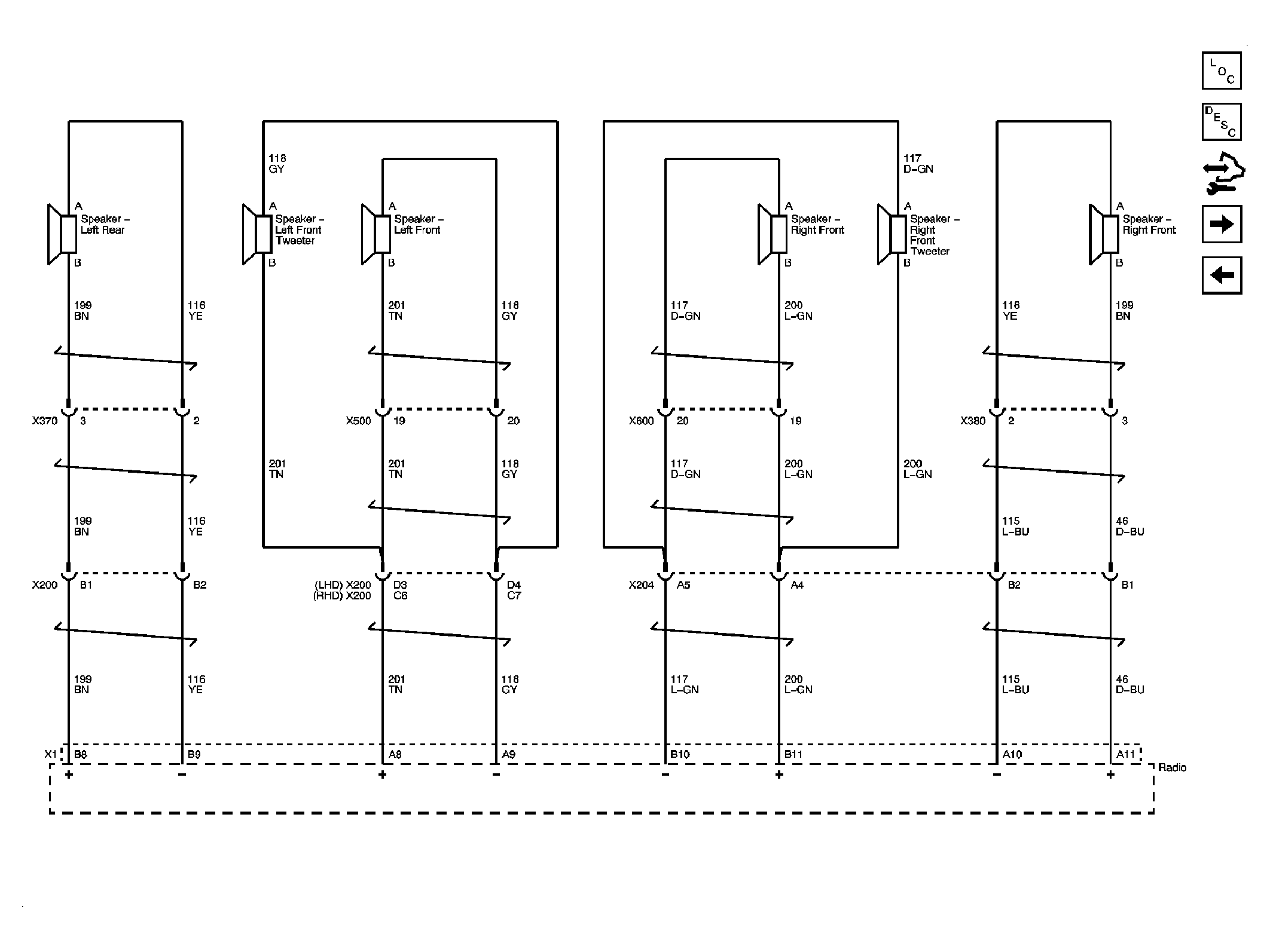

Fig 2: Speakers - UQ3

Courtesy of GENERAL MOTORS CORP.

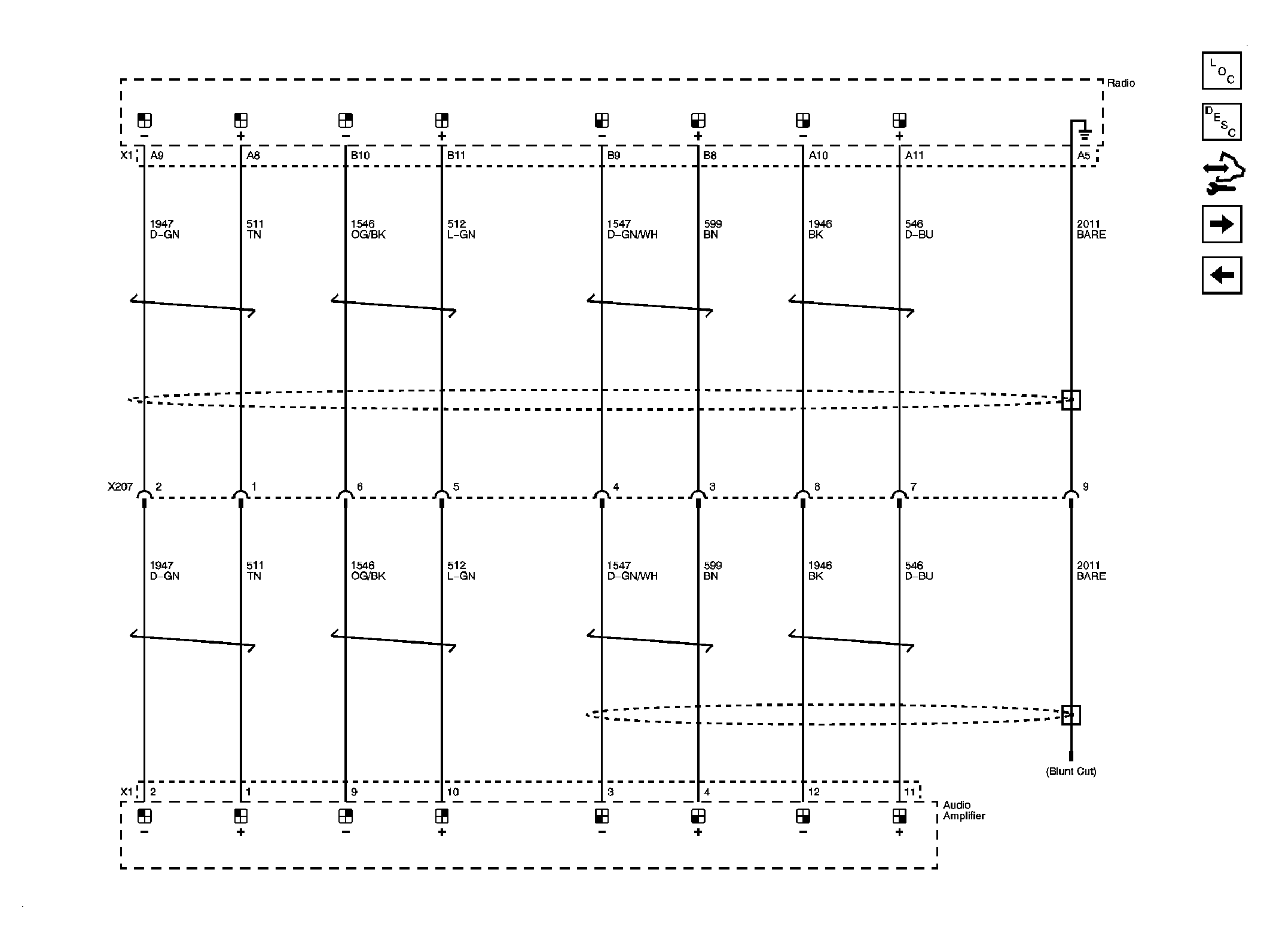

Fig 3: Amplifier Inputs - UQA

Courtesy of GENERAL MOTORS CORP.

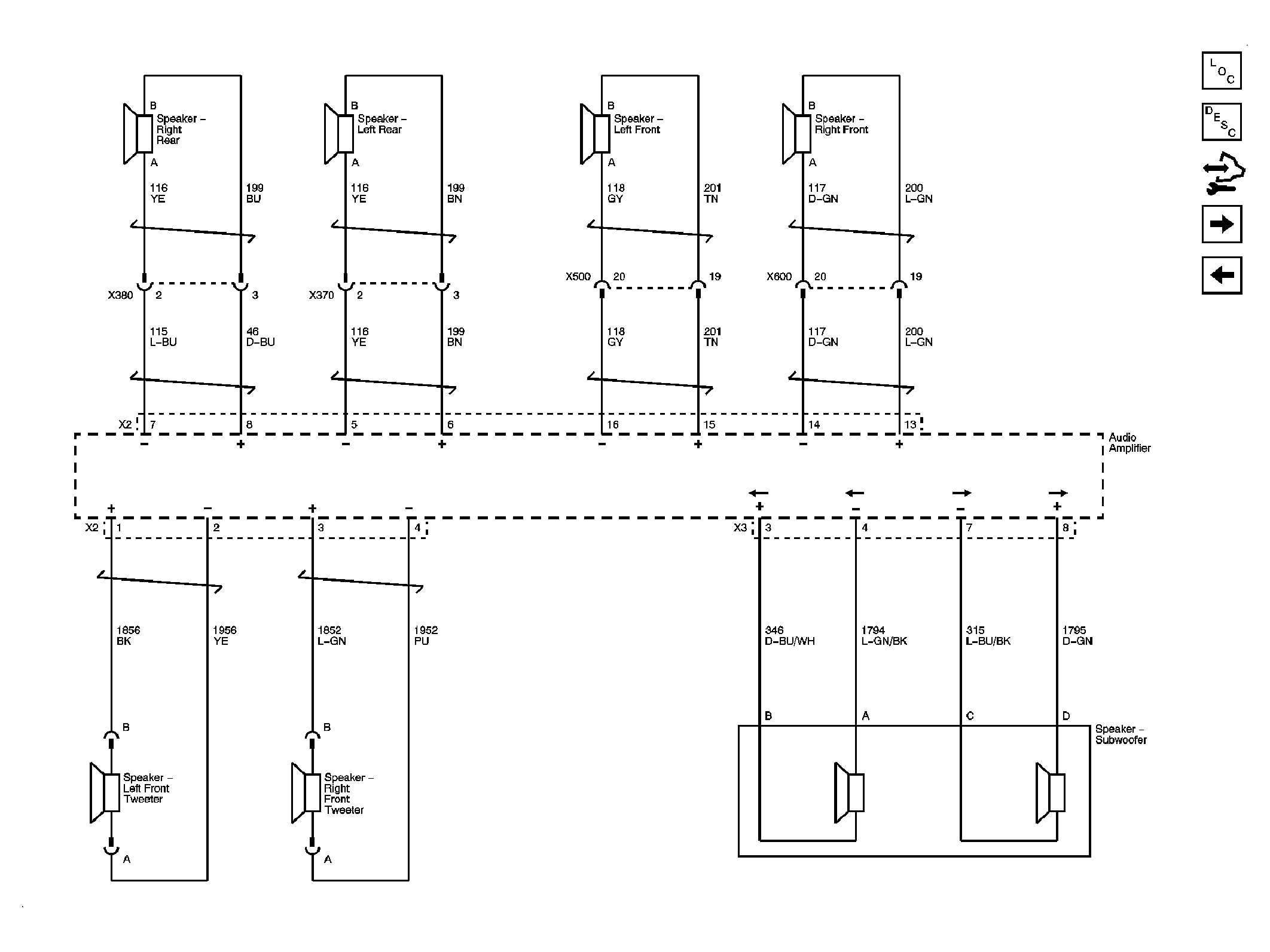

Fig 4: Speakers - UQS

Courtesy of GENERAL MOTORS CORP.

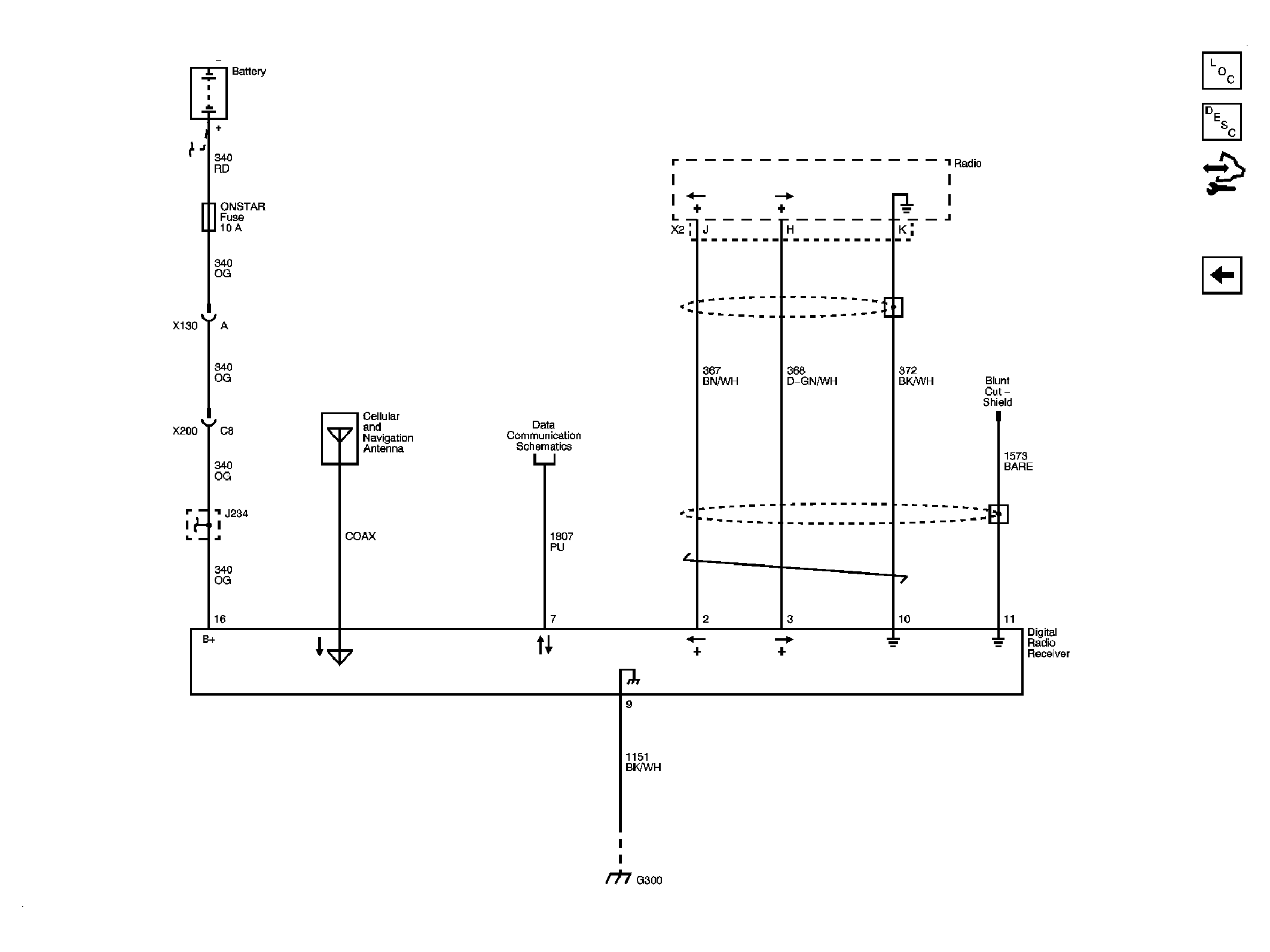

Fig 5: Digital Radio Receiver - U2K

Courtesy of GENERAL MOTORS CORP.
