Rear Window Wiper Motor

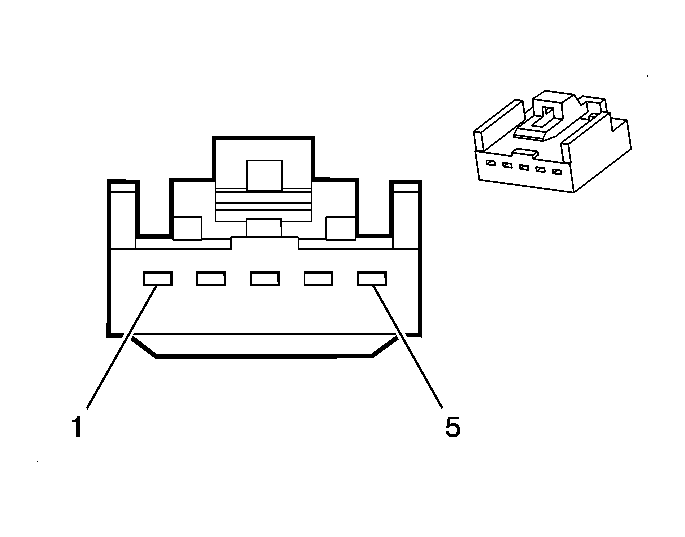

Fig 1: Rear Window Wiper Motor Connector End View
GM566557Courtesy of GENERAL MOTORS CORP.
Rear Window Wiper Motor

Pin Wire Circuit Function
1 1 YE 143 Ignition Voltage
2 0.5 D-GN 392 Rear Window Washer Switch Signal
3 0.5 WH 393 Rear Window Wiper Delay 1 Signal
4 0.5 GY 391 Rear Window Wiper Delay 2 Signal
5 1 BK 1450 Ground
Connector Part Information
  • OEM: 1300-3111
  • Service: 88988645
  • Description: 5-Way F 090 Series (WH)
Terminal Part Information
  • Pins: 1, 5
  • Terminal/Tray: 8240-4892/22
  • Core/Insulation Crimp: 2/4
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
  • Pins: 3-4
  • Terminal/Tray: 8240-4882/22
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
