Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

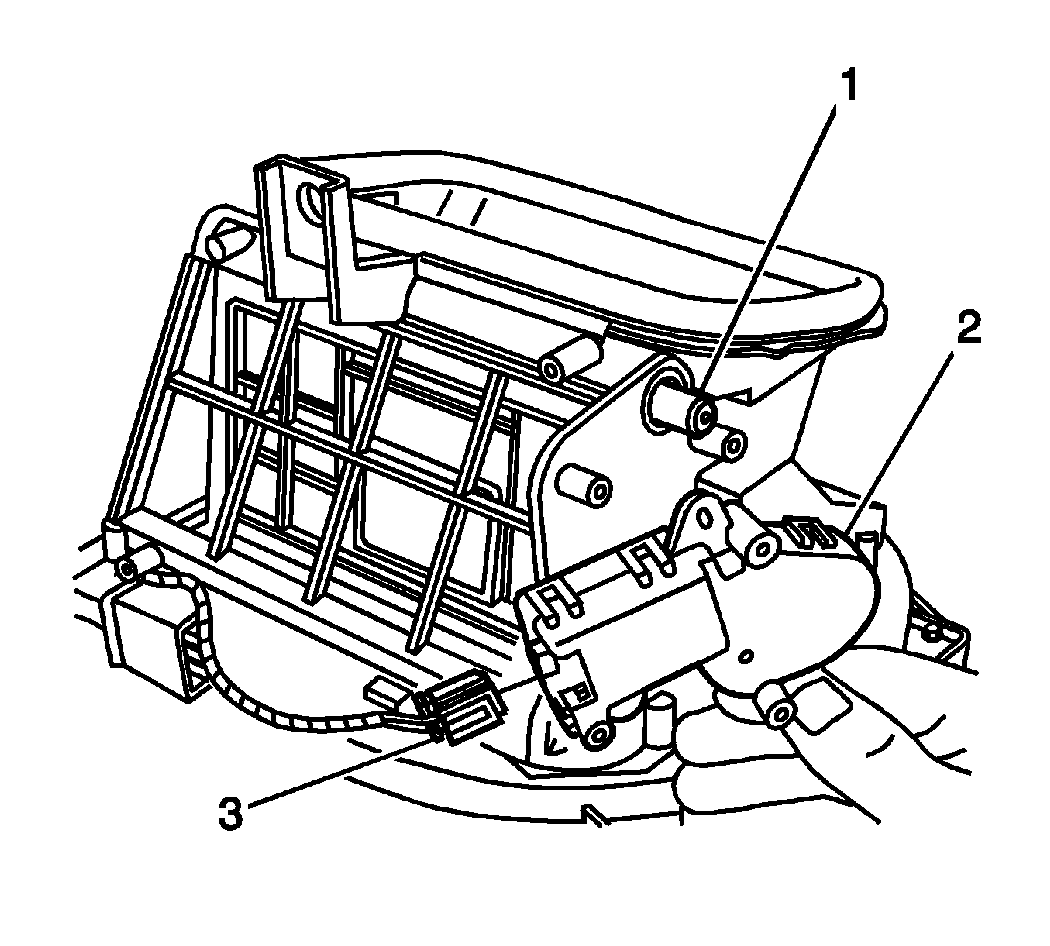

    Fig 1: View Of Recirculation Actuator
    GM888409Courtesy of GENERAL MOTORS CORP.
  1. Install the recirculation actuator (2).
    2. NOTE: Refer to Fastener Notice .
  2. Install the screws to the recirculation actuator.

    Tighten:  Tighten the screws to 1.9 N.m (17 lb ft).

  3. Connect the electrical connector (3) to the recirculation actuator (2).
  4. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement .
