Low Tire Pressure Indicator Module Replacement (Export Vehicles)

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

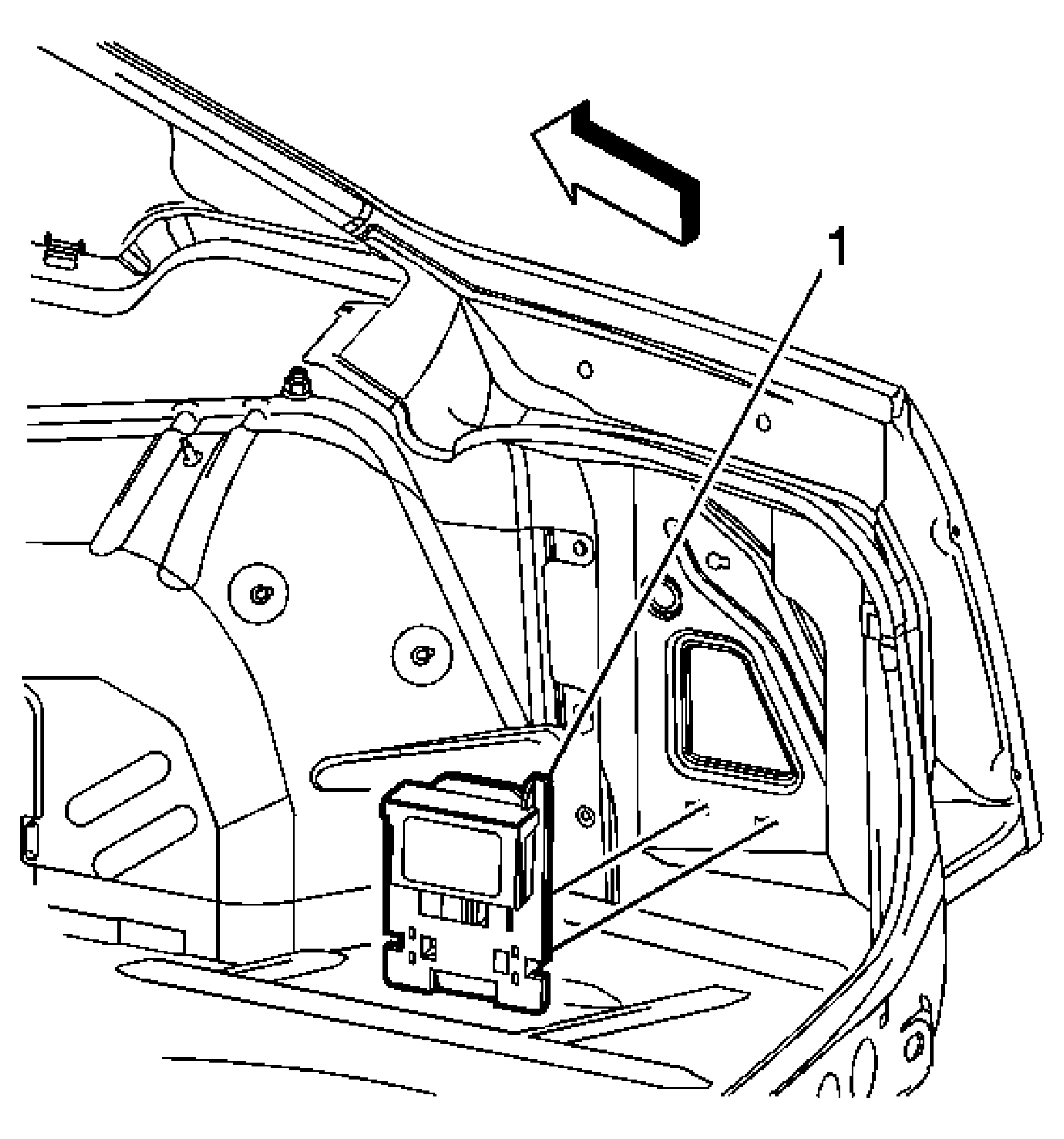

Fig 1: Low Tire Pressure Indicator Module (Export Vehicles)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the RH rear compartment trim. Refer to Rear Compartment Trim Panel Replacement .
1	Tire Pressure Module Tip: Disconnect the electrical connector. Disconnect the retaining tabs to remove.
