Electronic Brake Control Module: Locations

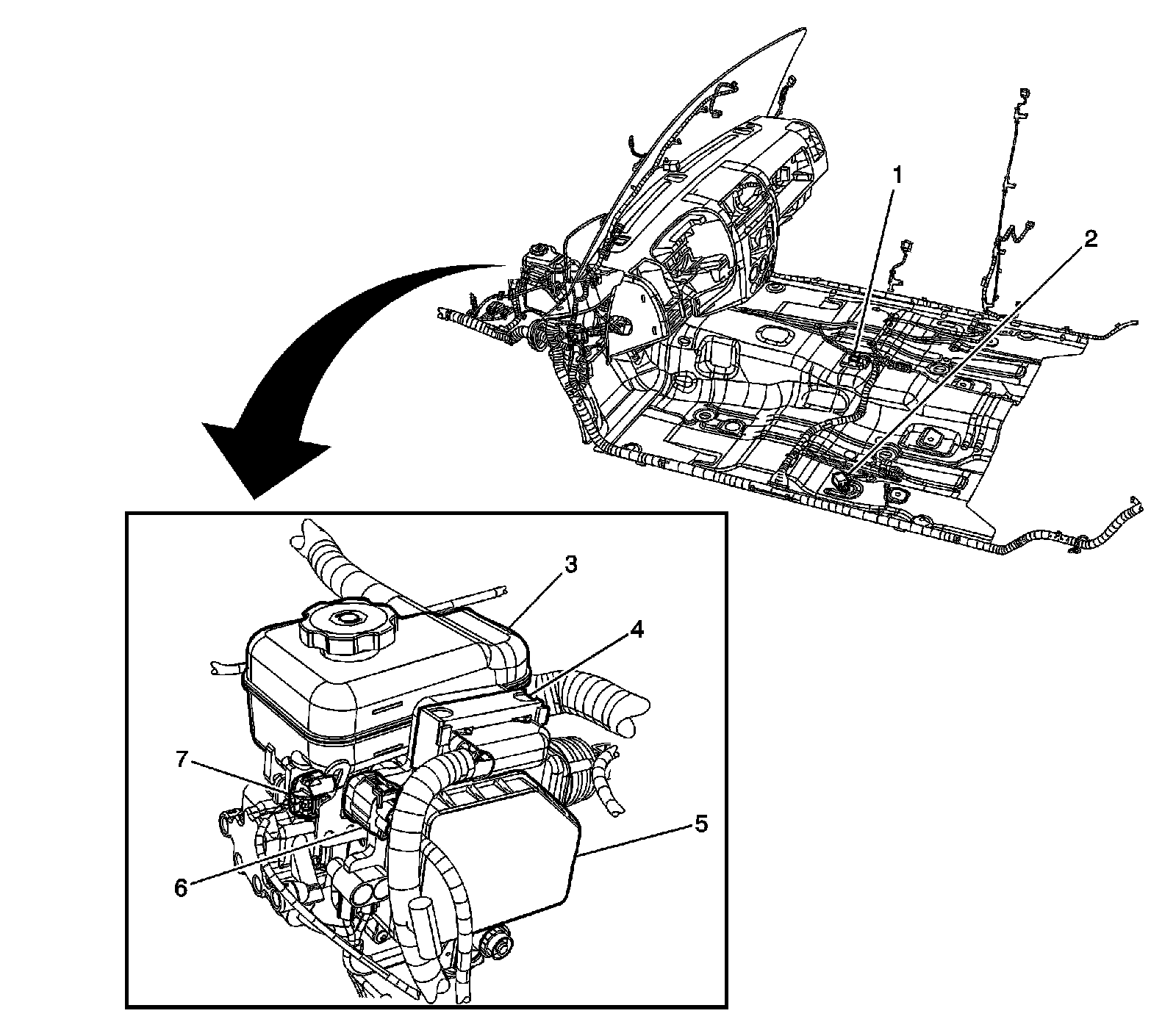

Rear of the Engine Compartment Components

Brake Components (w/o JL4):

1 - Inflatable Restraint Vehicle Rollover Sensor (ASF)
2 - Yaw and Lateral Accelerometer Sensor
3 - Brake Fluid Reservoir
4 - Electronic Brake Control Module (EBCM) X2
5 - Electronic Brake Control Module (EBCM)
6 - Electronic Brake Control Module (EBCM) X1
7 - Brake Fluid Level Switch
