Starting and Charging

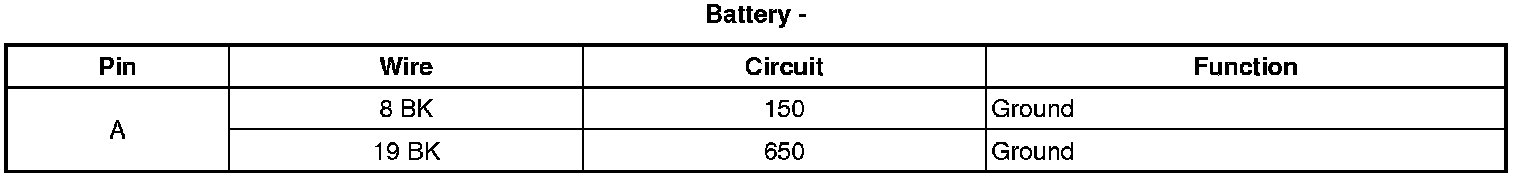

Battery -

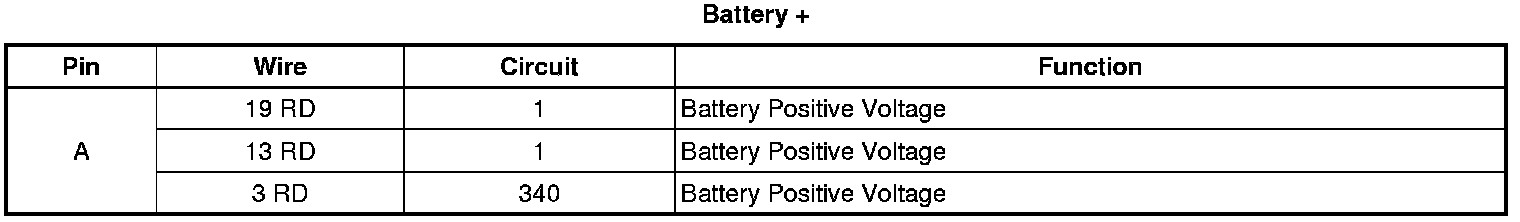

Battery +









Generator X1






Generator X2

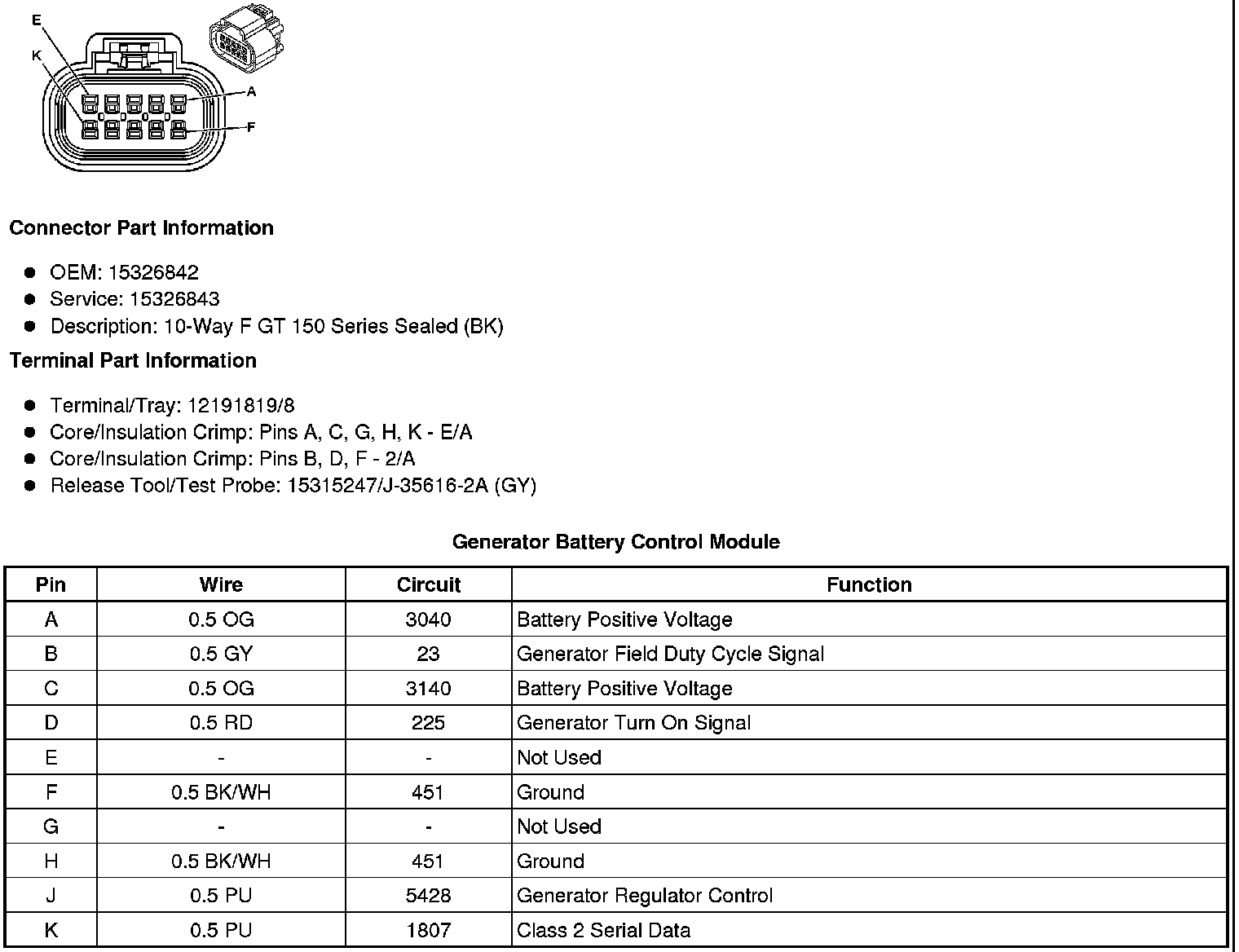

Generator Battery Control Module





Ignition Switch

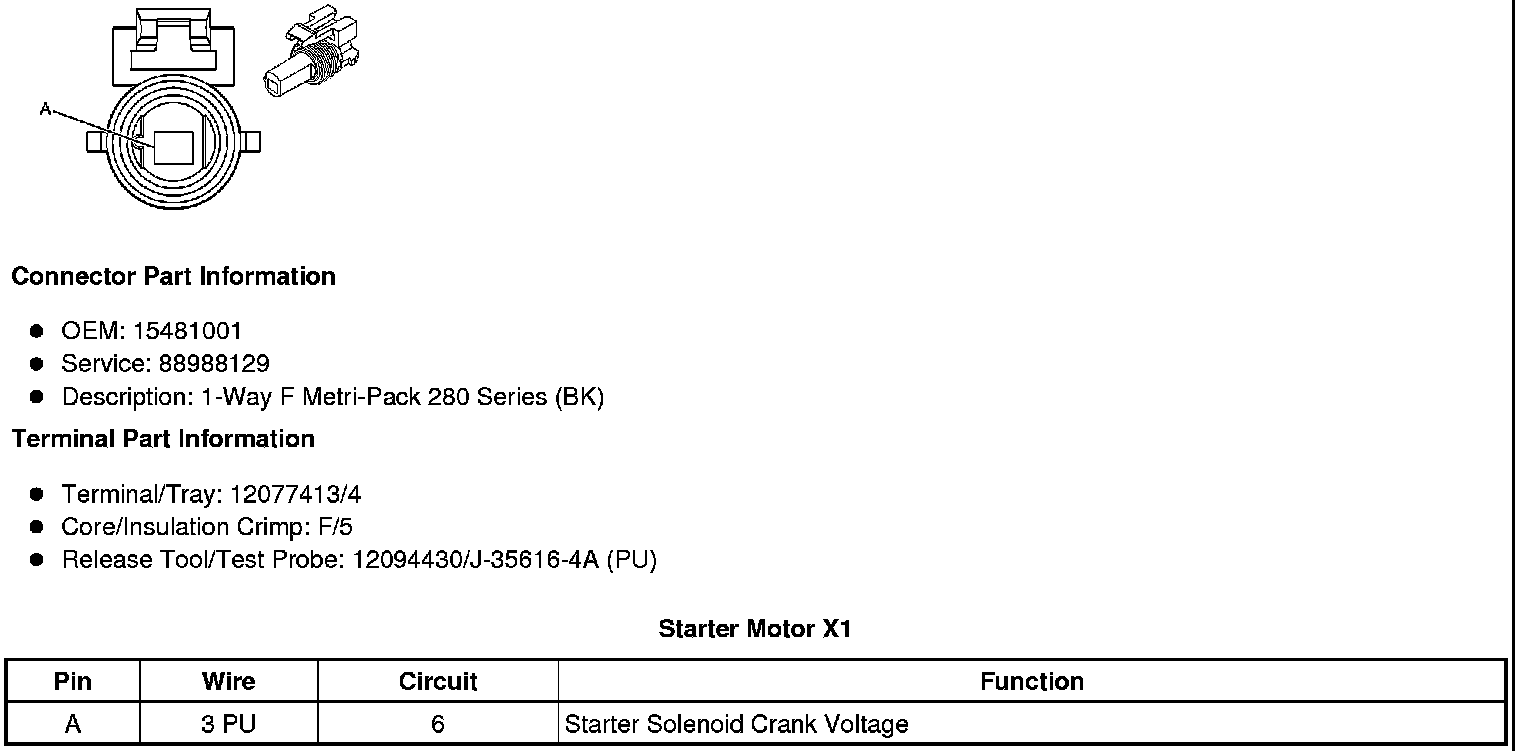

Starter Motor X1

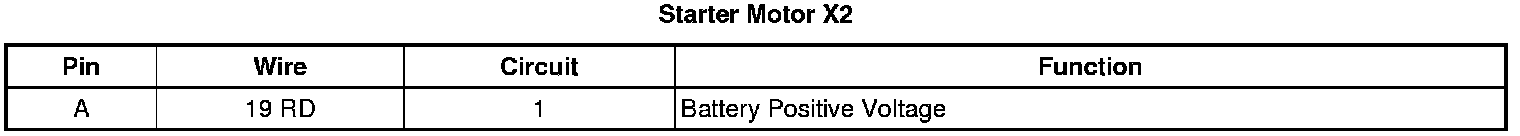

Starter Motor X2
