Windows and Glass

Window Motor - Driver






Window Motor - Left Rear

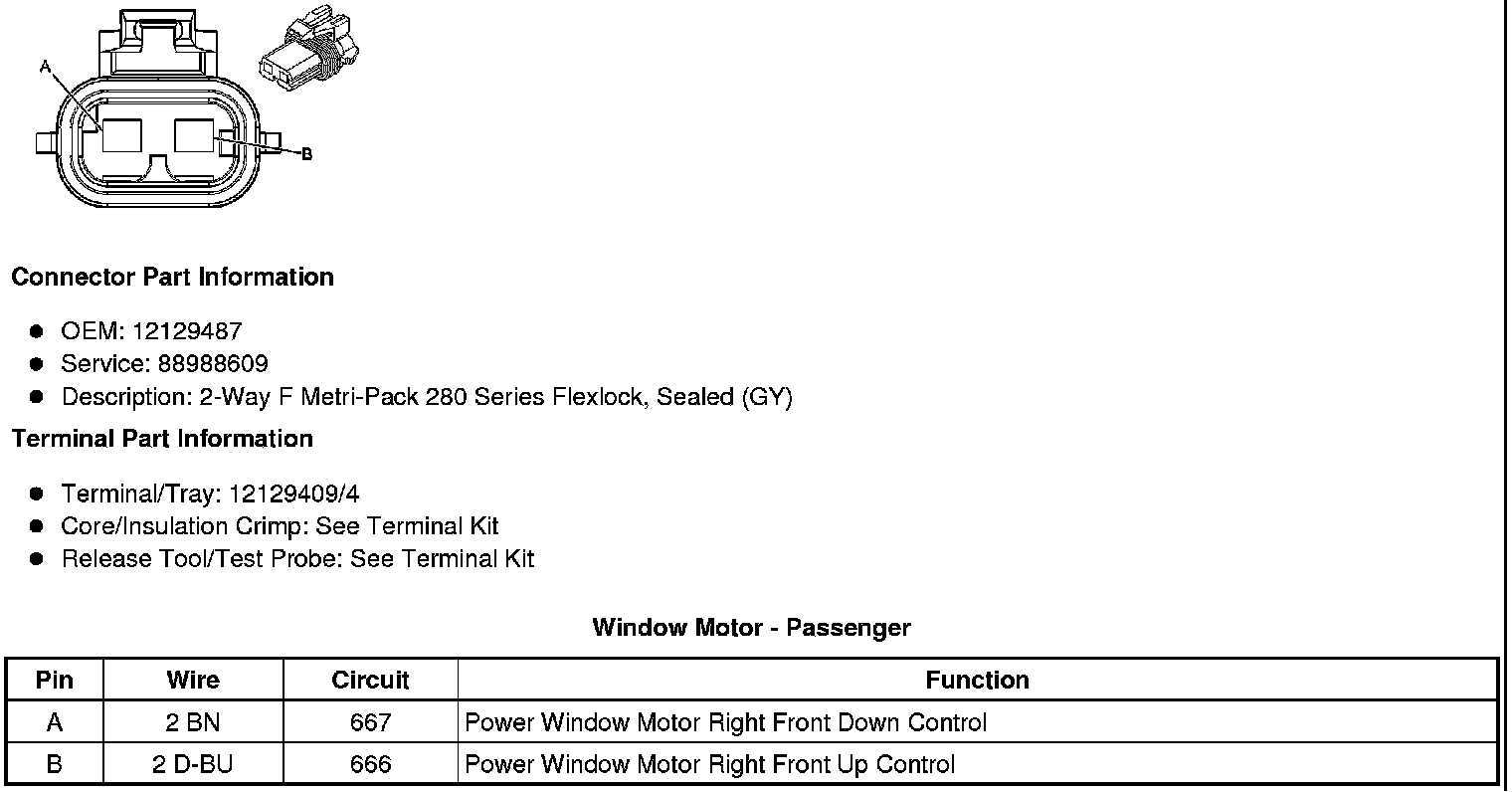

Window Motor - Passenger

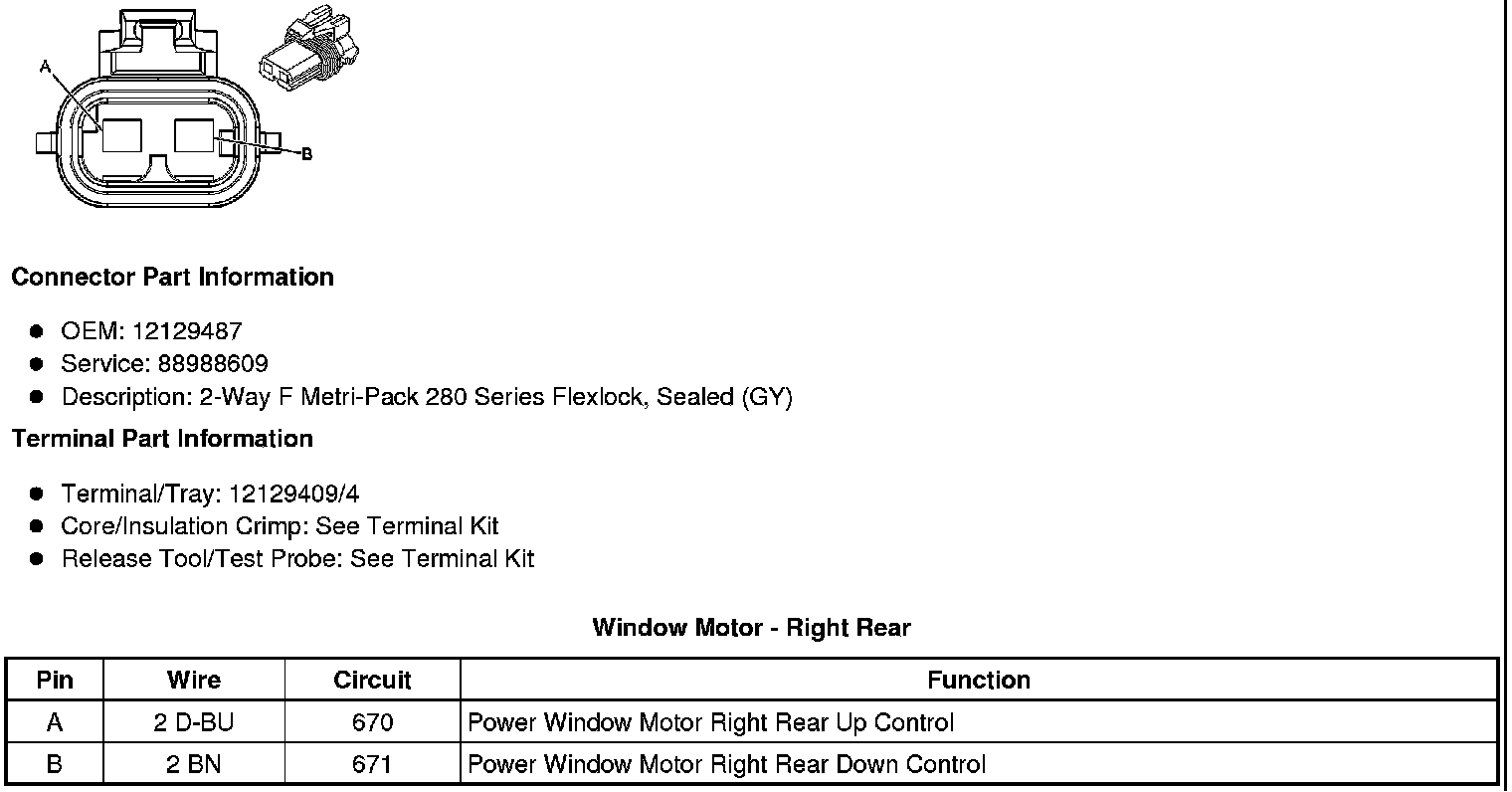

Window Motor - Right Rear






Window Switch - Left Rear






Window Switch - Right Rear

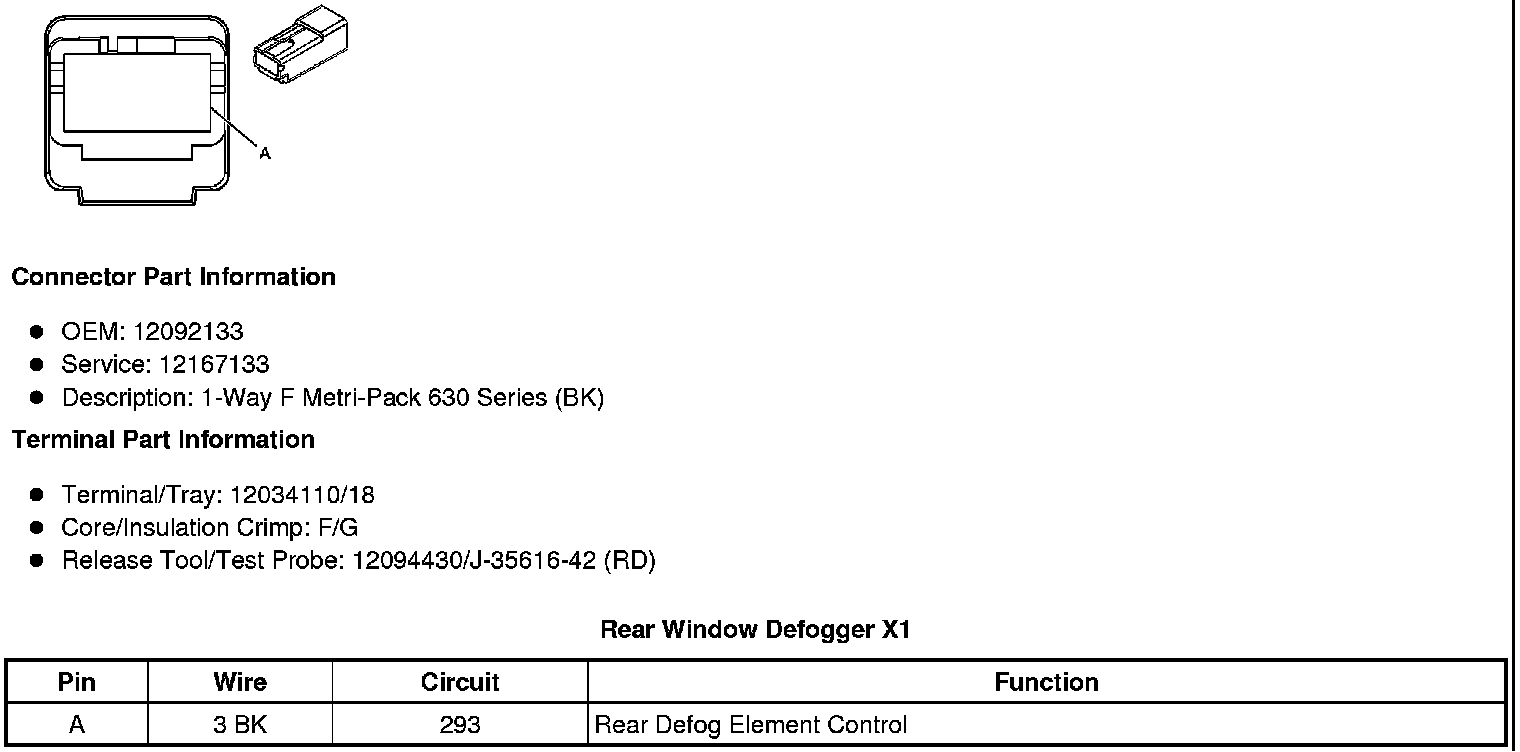

Rear Window Defogger X1

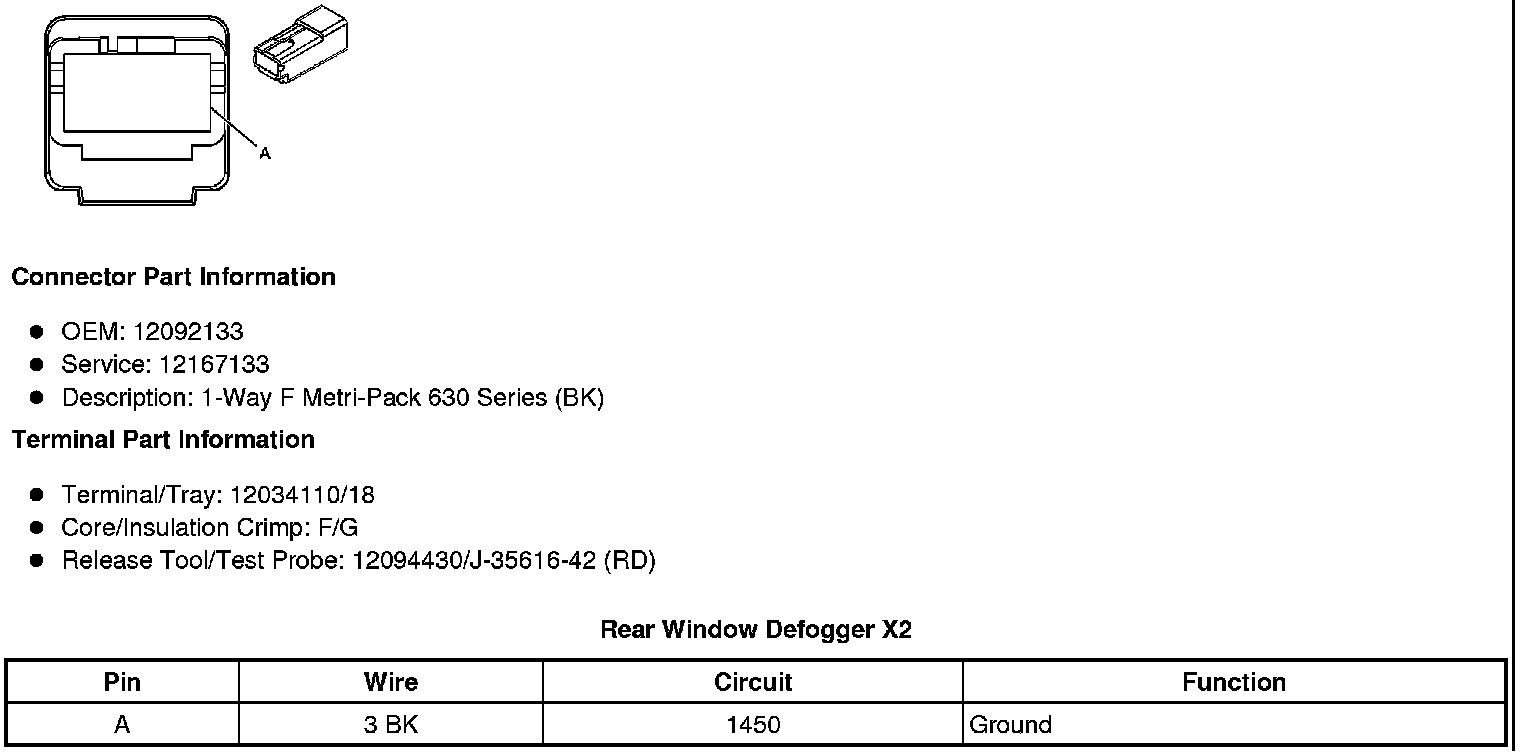

Rear Window Defogger X2
