Wipers and Washers

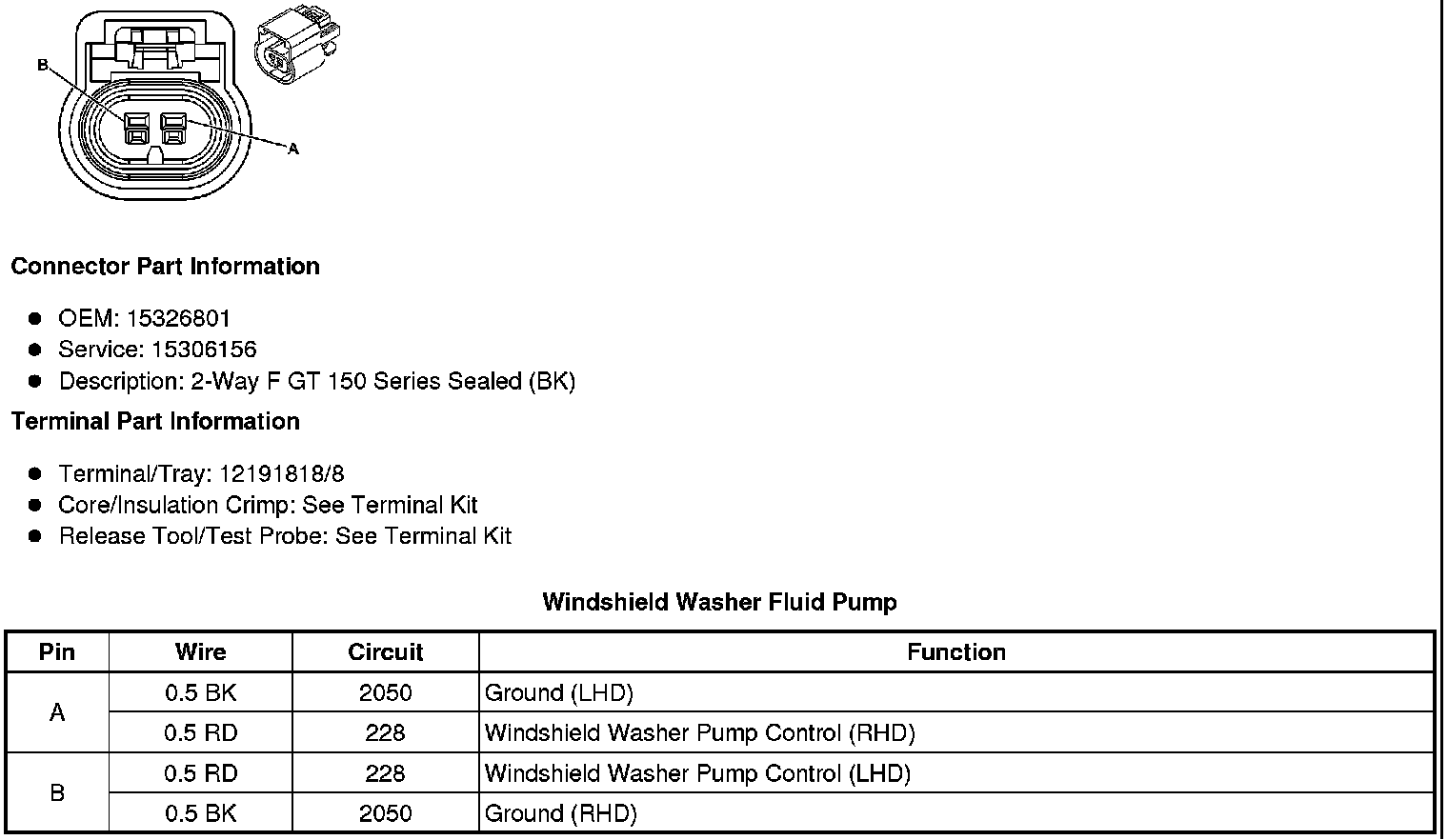

Windshield Washer Fluid Pump






Windshield Wiper Motor (LHD)






Windshield Wiper Motor (RHD)





Rear Window Washer Fluid Pump






Rear Window Wiper Motor

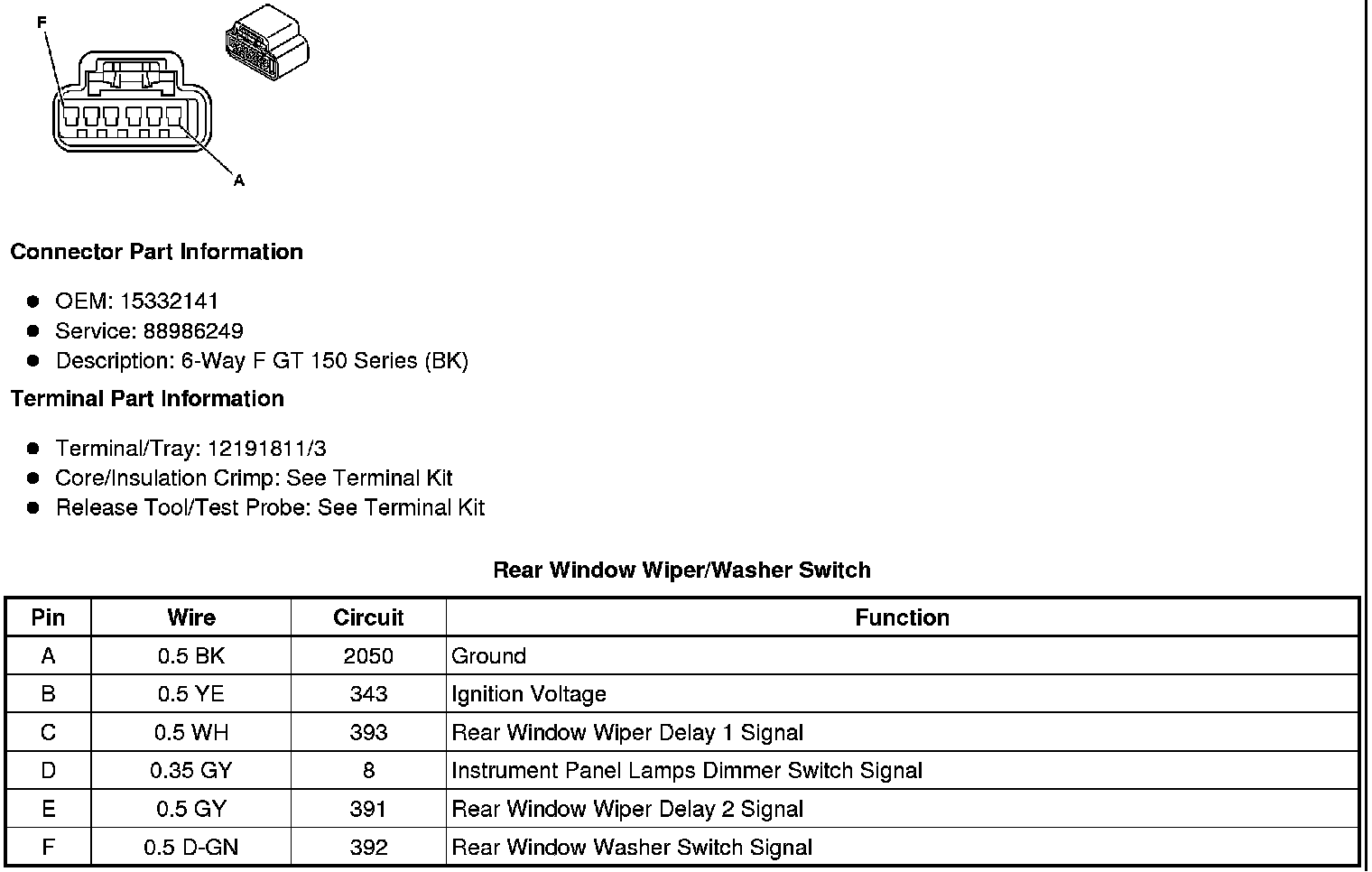

Rear Window Wiper/Washer Switch
