Headlamp

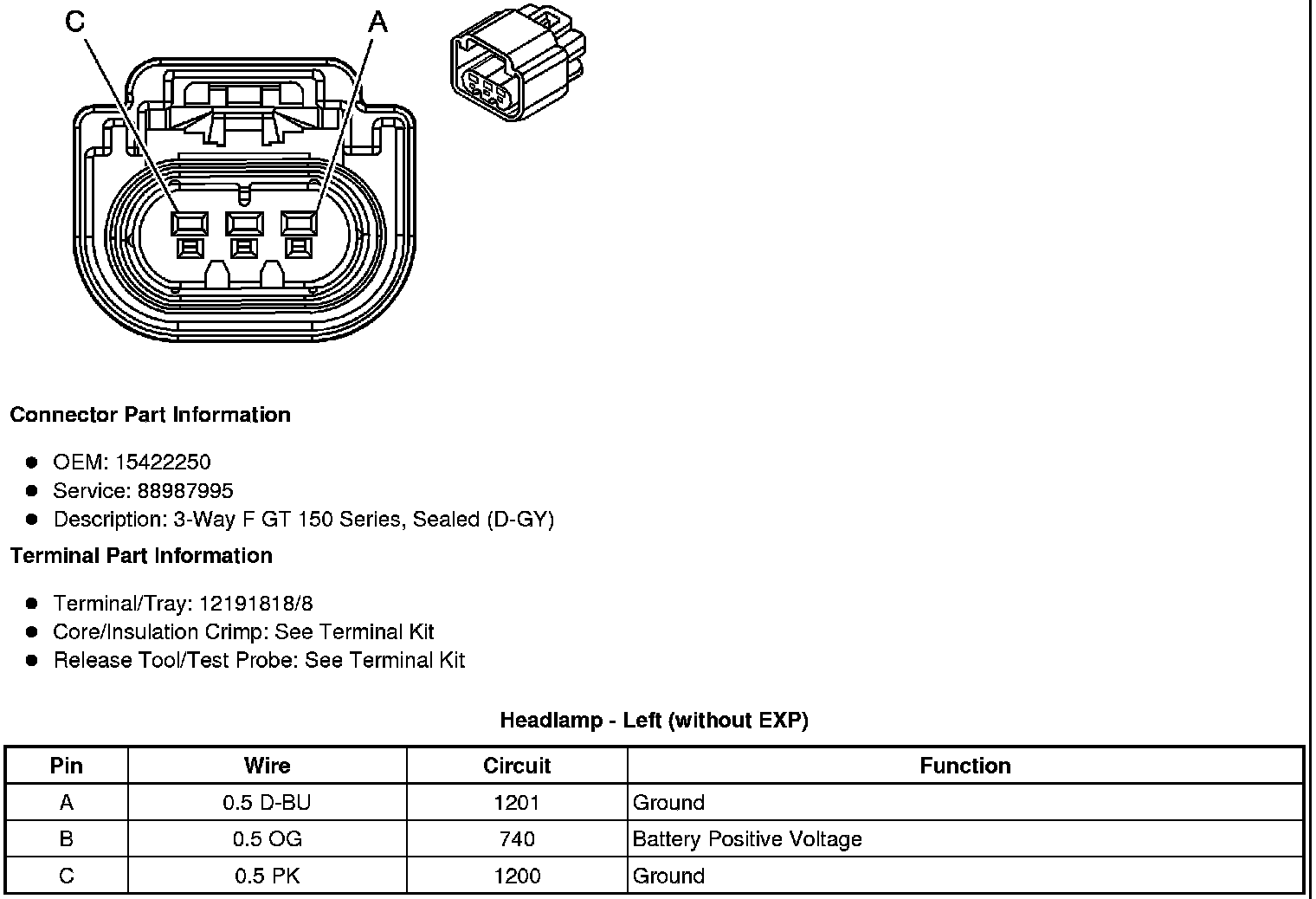

Headlamp - Left (without EXP)






Headlamp - Left (EXP)






Headlamp - Right (without EXP)






Headlamp - Right (EXP)

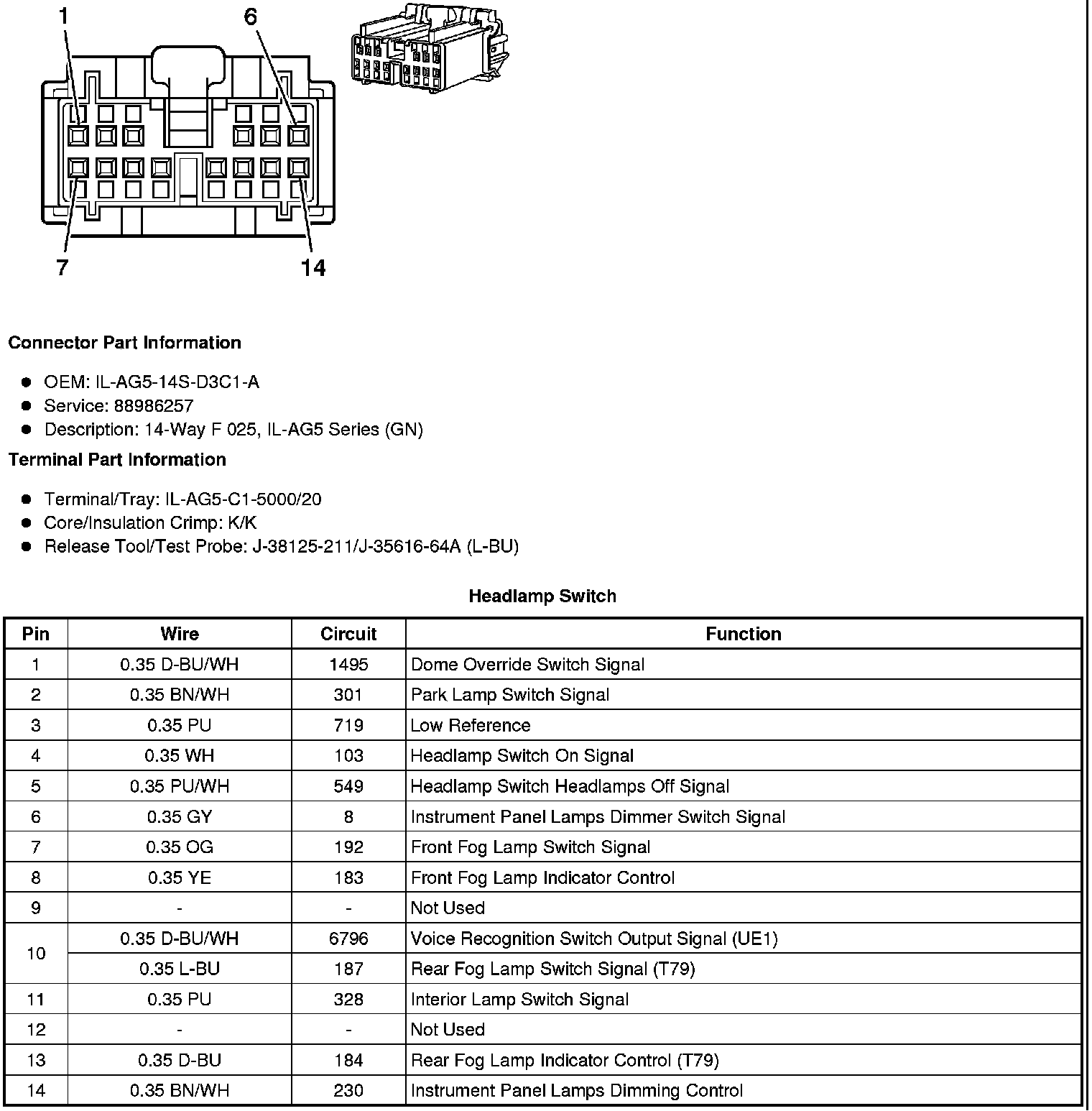

Headlamp Switch
