Manifold Pressure/Vacuum Sensor: Diagrams

Manifold Absolute Pressure (MAP) Sensor (LH8)






Manifold Absolute Pressure (MAP) Sensor (LLR)





Manifold Absolute Pressure (MAP) Sensor (LH8)

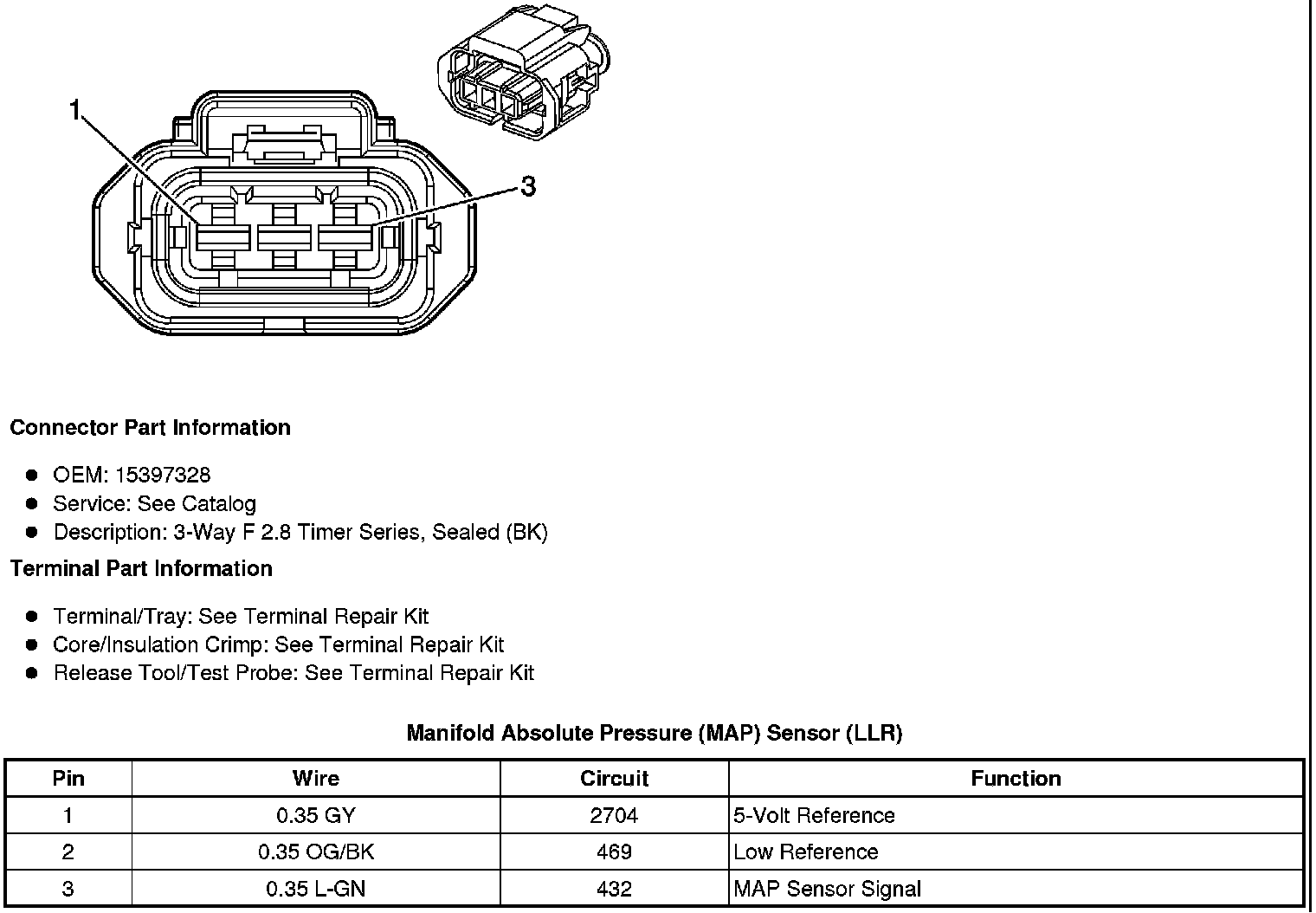

Manifold Absolute Pressure (MAP) Sensor (LLR)
