Catalytic Converter Heat Shield Replacement

Catalytic Converter Heat Shield Replacement

Removal Procedure
Caution: Refer to Exhaust Service Caution (Exhaust Service Caution) .
Caution: Refer to Protective Goggles and Glove Caution (Protective Goggles and Glove Caution) .





1. If equipped with a 3.7L engine, remove the catalytic converter. Refer to Catalytic Converter Replacement (LLR) (Service and Repair) .
2. If equipped with a 5.3L engine, remove the catalytic converters. Refer to Catalytic Converter Replacement - Left Side (LH8) () and/or Catalytic Converter Replacement - Right Side (LH8) () .

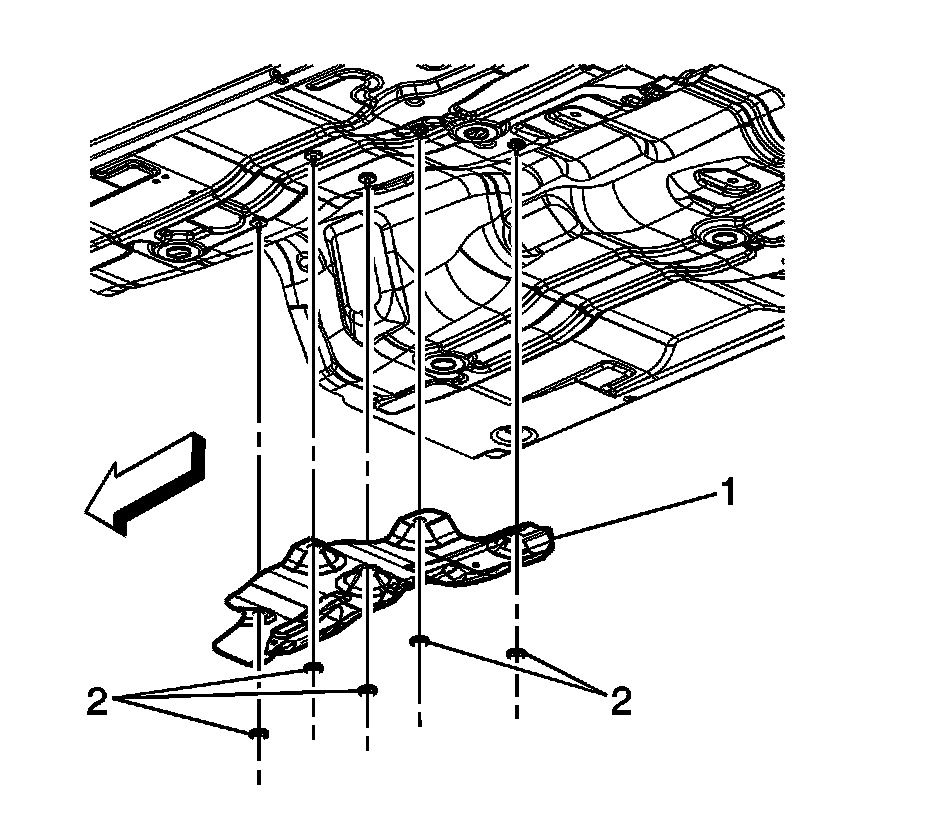

3. Remove the catalytic converter heat shield nuts (2) and shield (1).

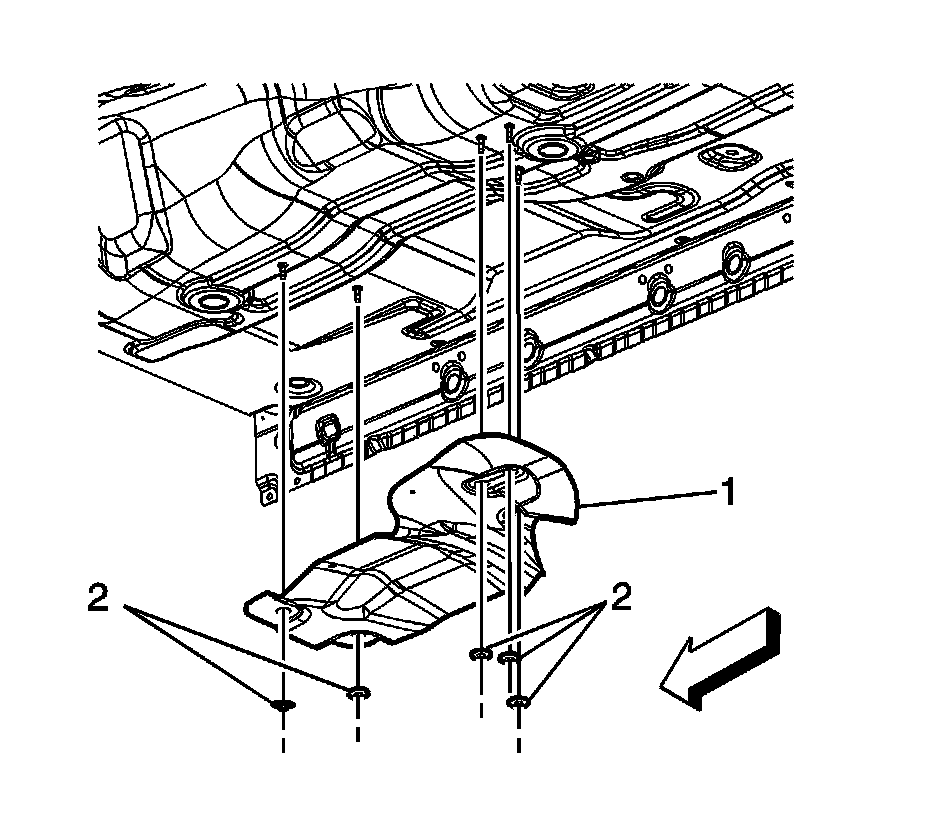

4. If equipped with a 5.3L engine, remove the catalytic converter heat shield nuts (2) and shield (1).



Installation Procedure






Notice: Refer to Fastener Notice (Fastener Notice) .

1. If equipped with a 5.3L engine, position the catalytic converter heat shield (1) to the underbody and install the nuts (2).

Tighten the nuts to 9 N.m (80 lb in).





2. Position the catalytic converter heat shield (1) to the underbody and install the nuts (2).

Tighten the nuts to 9 N.m (80 lb in).

3. If equipped with a 5.3L engine, install the catalytic converters. Refer to Catalytic Converter Replacement - Left Side (LH8) () and/or Catalytic Converter Replacement - Right Side (LH8) () .
4. If equipped with a 3.7L engine, install the catalytic converter. Refer to Catalytic Converter Replacement (LLR) (Service and Repair) .
