Manual Detent Spring Installation

Manual Detent Spring Installation

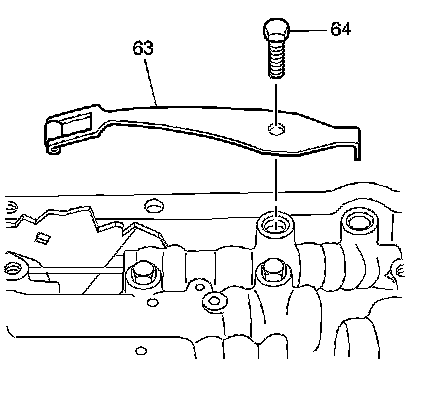

1. Inspect the manual detent spring assembly (63) for cracks or damage.
2. Install the manual detent spring assembly (63).

Notice: Refer to Fastener Notice .

3. Install the manual detent spring bolt (64).

Tighten the bolt to 20-27 N.m (15-20 lb ft).
