Data Communication Schematics

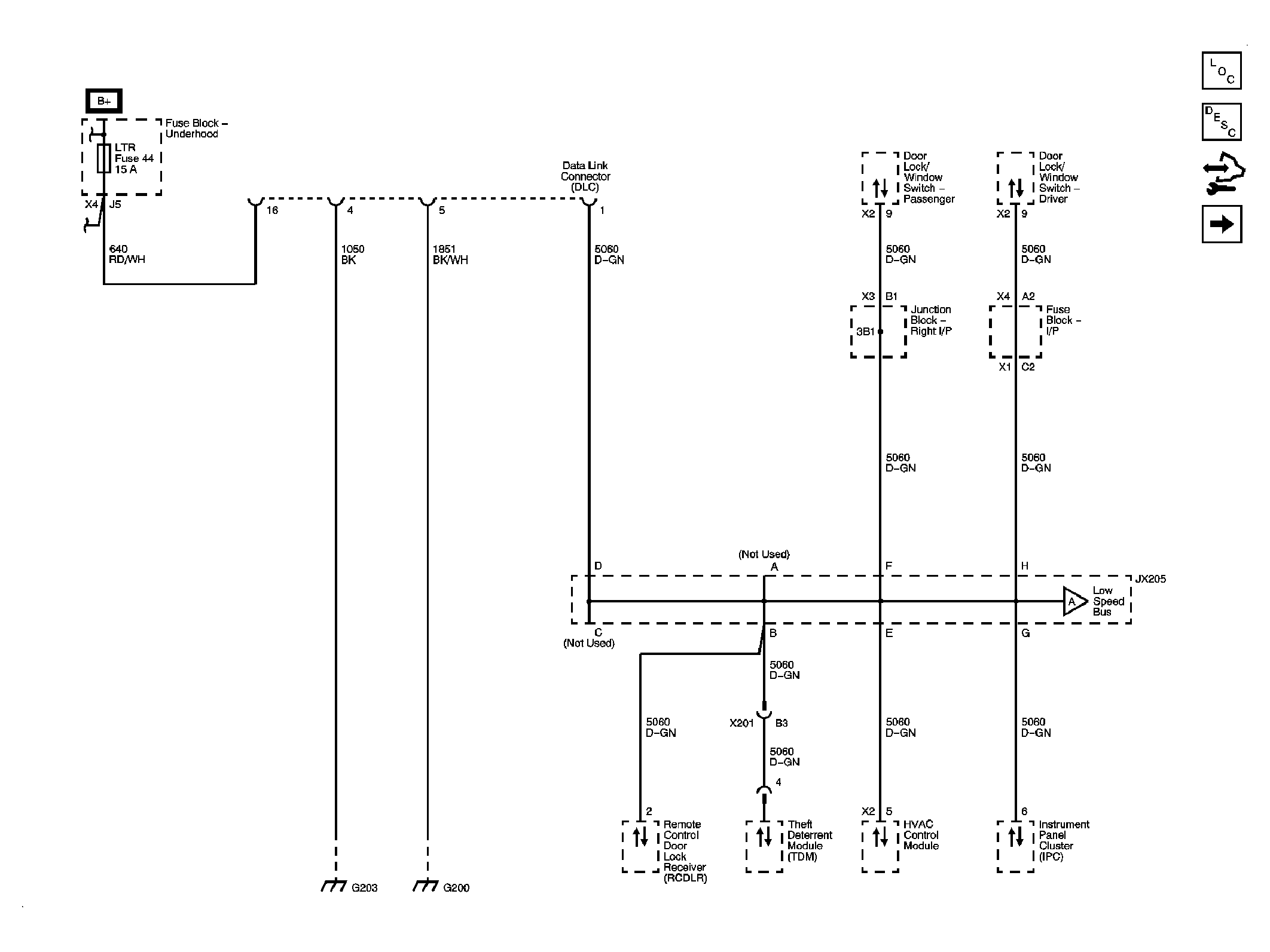

Fig 1: Low Speed Bus - (1 of 3)

Courtesy of GENERAL MOTORS CORP.

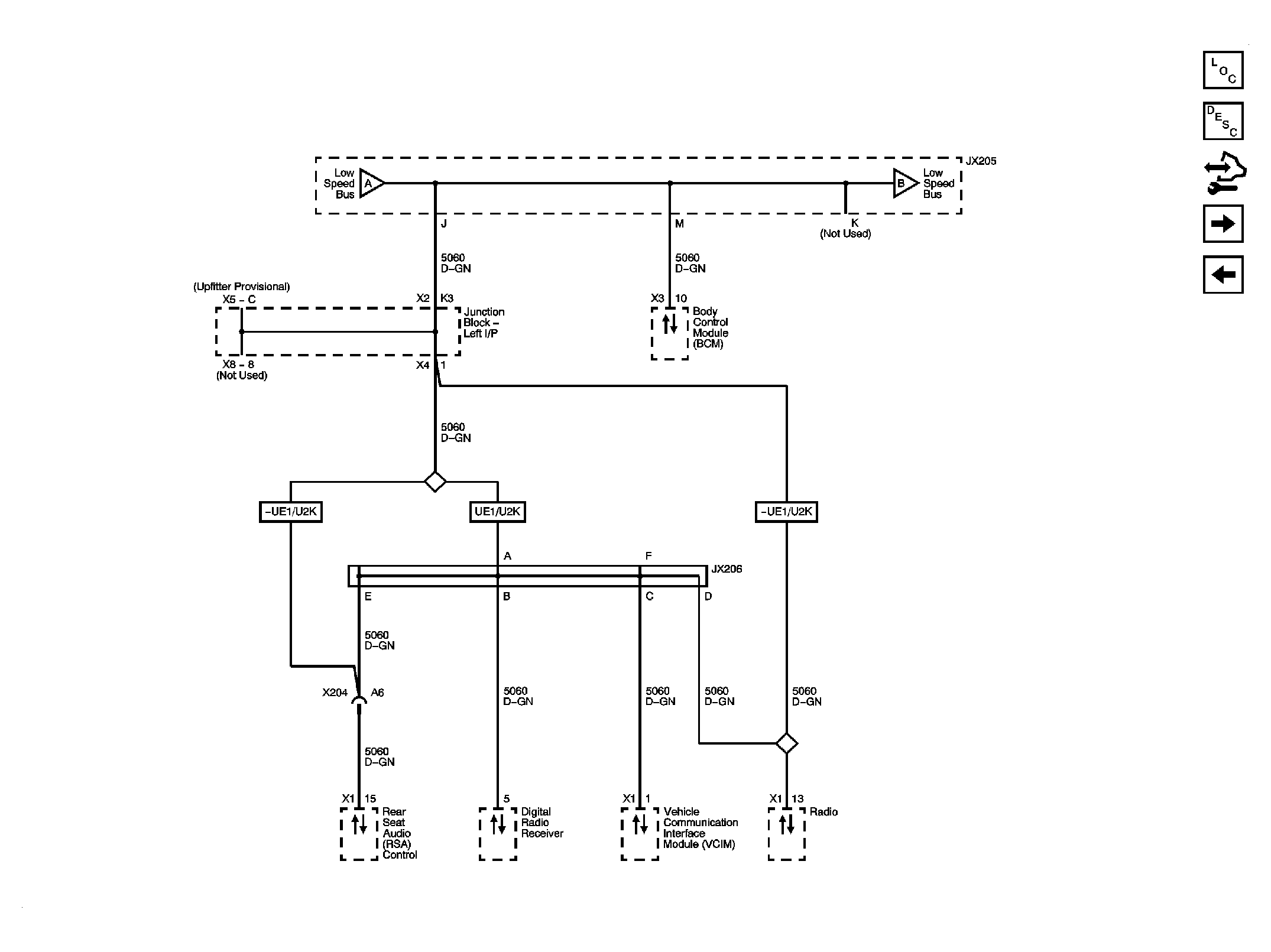

Fig 2: Low Speed Bus - (2 of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Low Speed Bus - (3 of 3)

Courtesy of GENERAL MOTORS CORP.

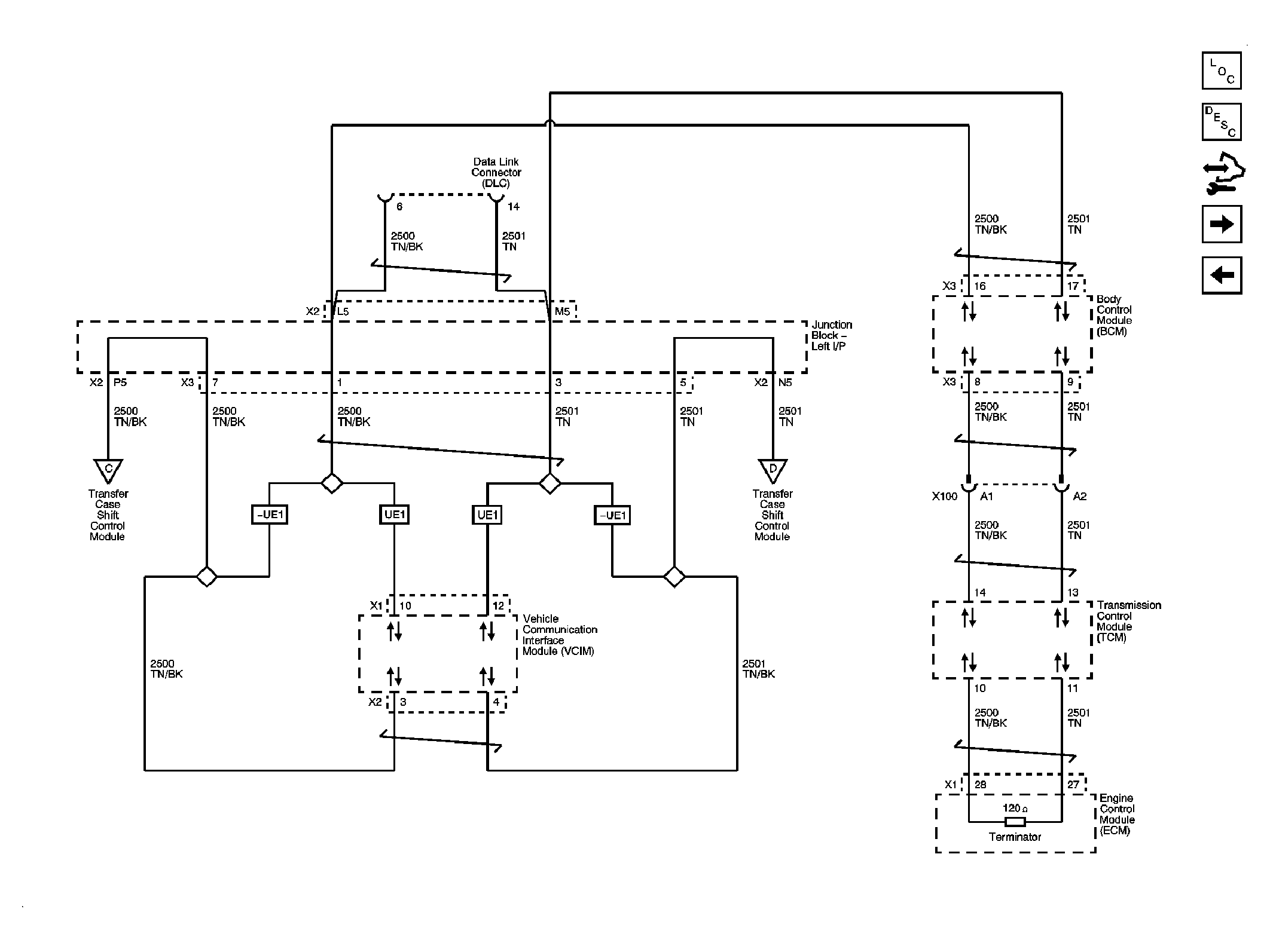

Fig 4: High Speed Bus - (1 of 2)

Courtesy of GENERAL MOTORS CORP.

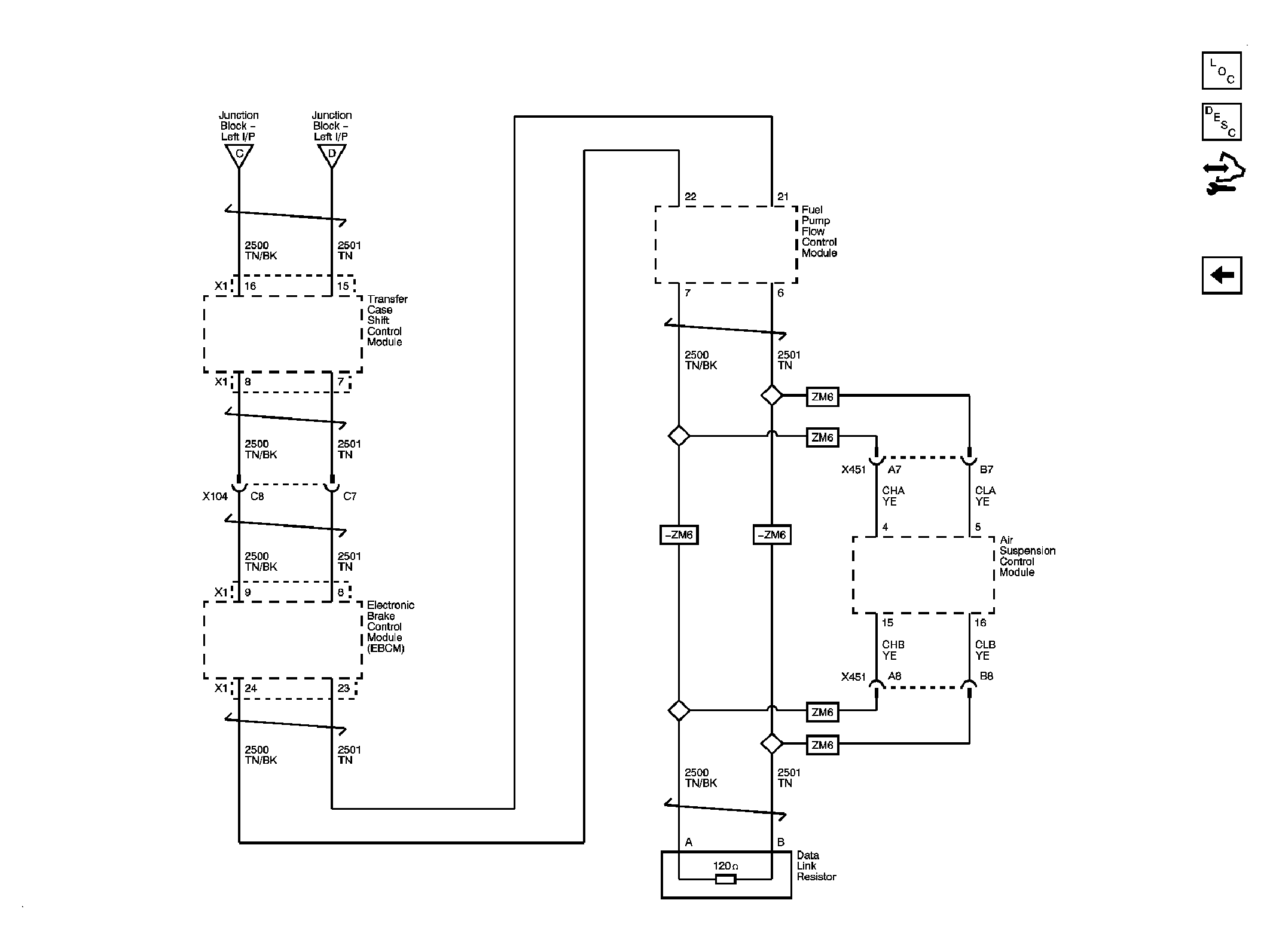

Fig 5: High Speed Bus - (2 of 2)

Courtesy of GENERAL MOTORS CORP.
