Driver Seat Adjuster Memory Switch Replacement

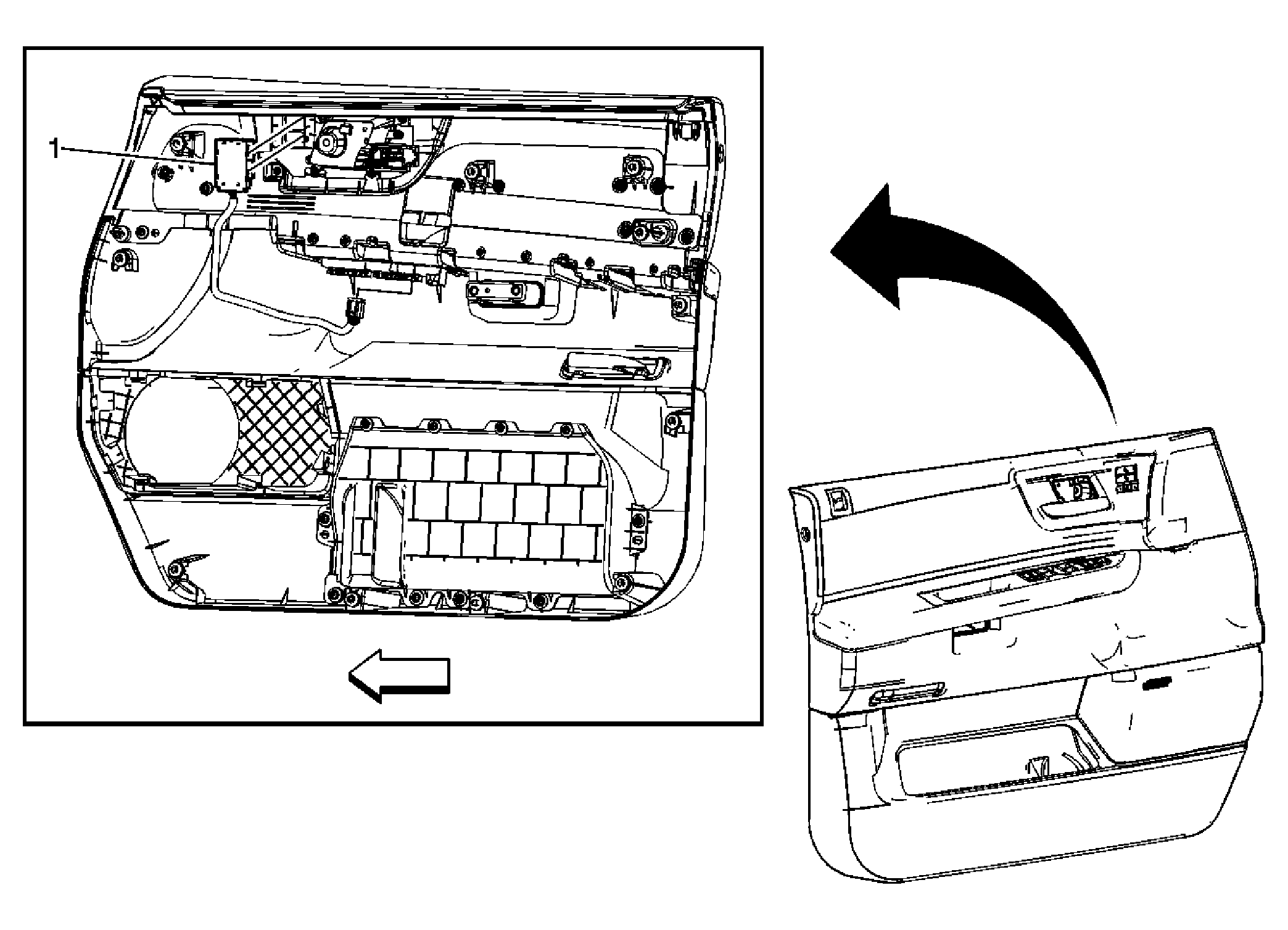

Fig 1: Identifying Driver Seat Adjuster Memory Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Driver Seat Adjuster Memory and Heater Switch Procedure Disconnect the electrical connector from the door switch assembly. Use a small flat bladed tool to aid in the removal of the switch from the door trim panel.

Callout

Component Name

Preliminary Procedure:
Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .

Driver Seat Adjuster Memory and Heater Switch

Procedure

Disconnect the electrical connector from the door switch assembly.
Use a small flat bladed tool to aid in the removal of the switch from the door trim panel.
