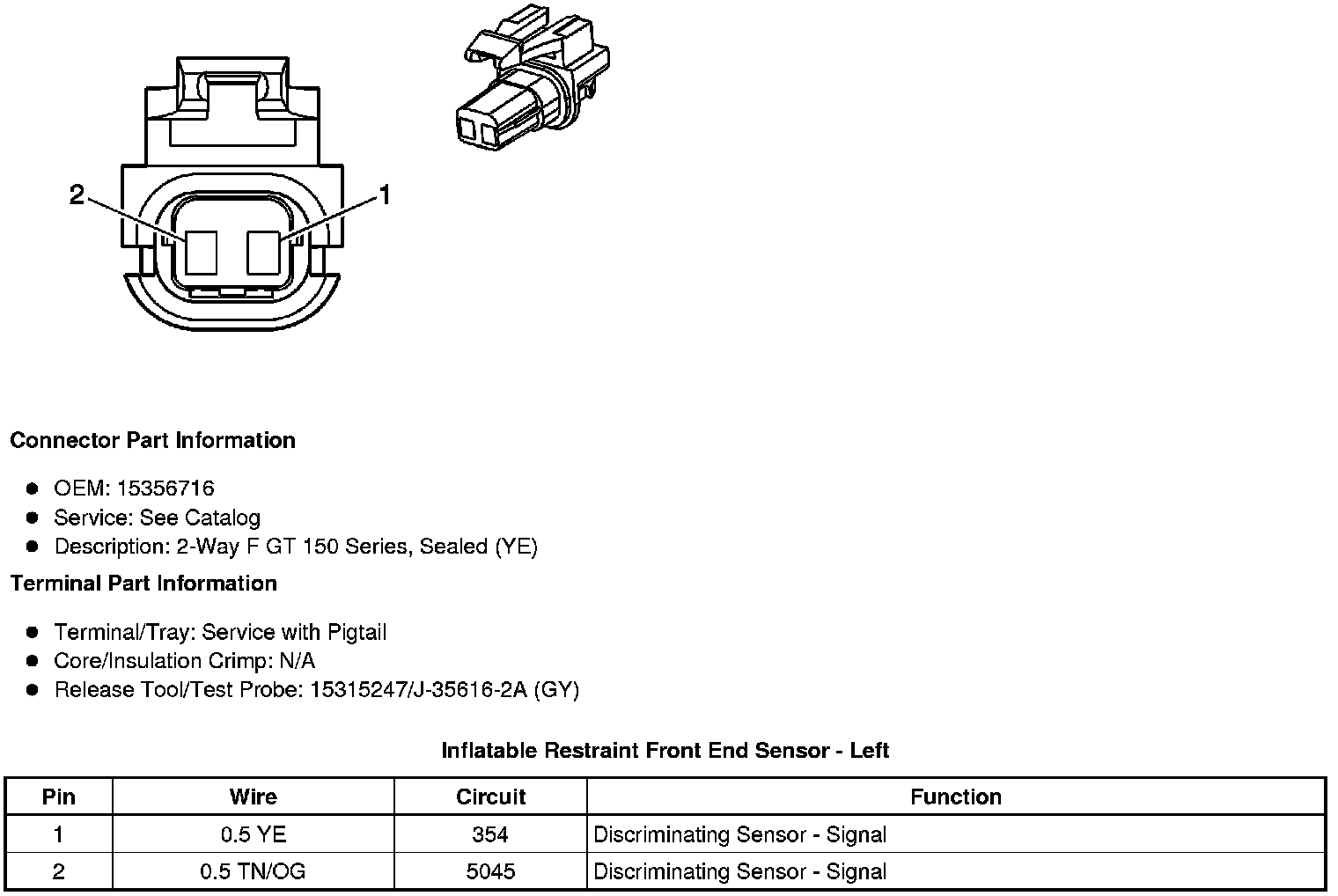

Inflatable Restraint Front End Sensor - Left
Component Connector End Views
Inflatable Restraint Front End Sensor - Left
