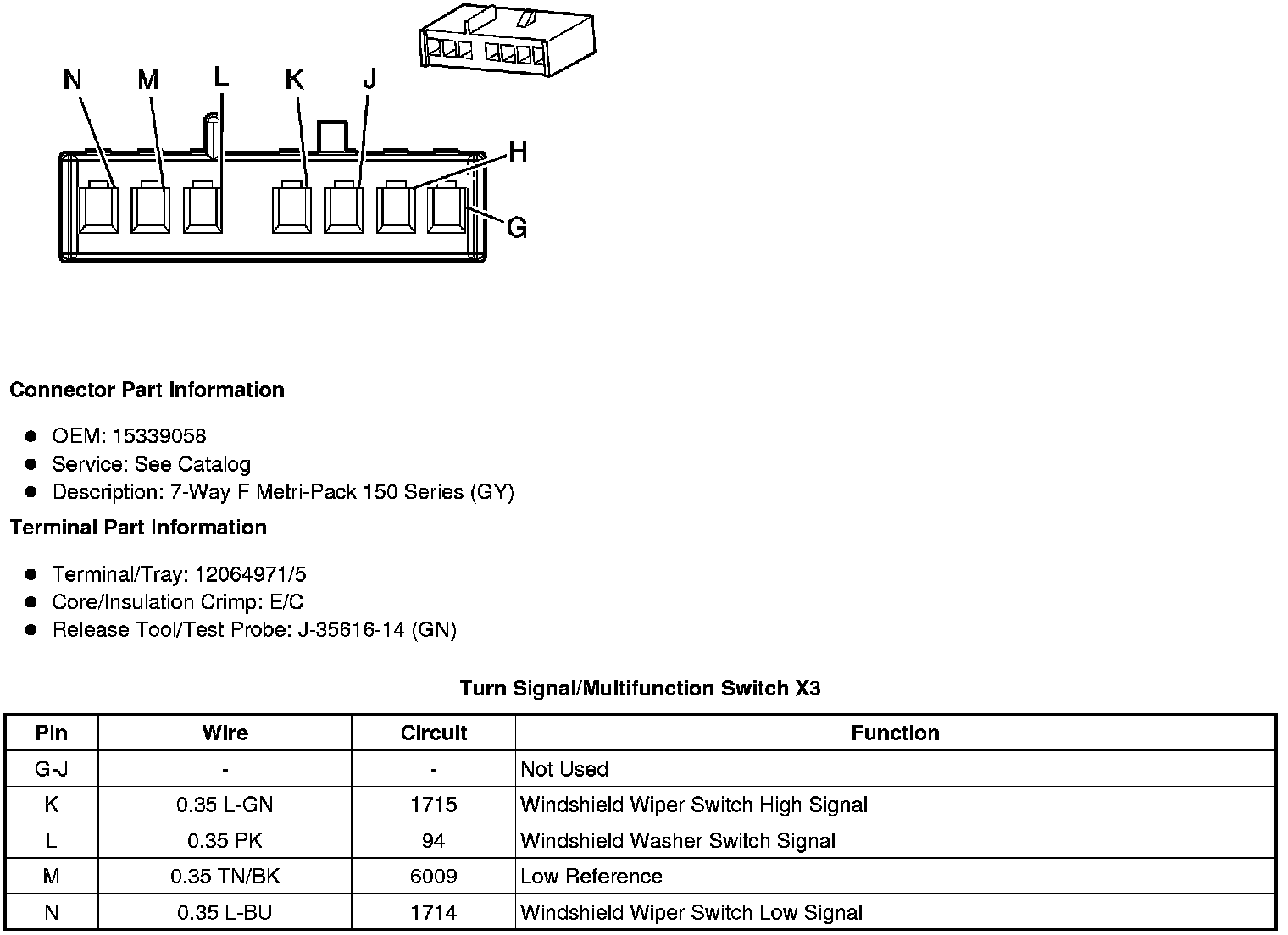

Turn Signal/Multifunction Switch X3
Component Connector End Views
Turn Signal/Multifunction Switch X3
