Midgate Views




Harness Routing Views

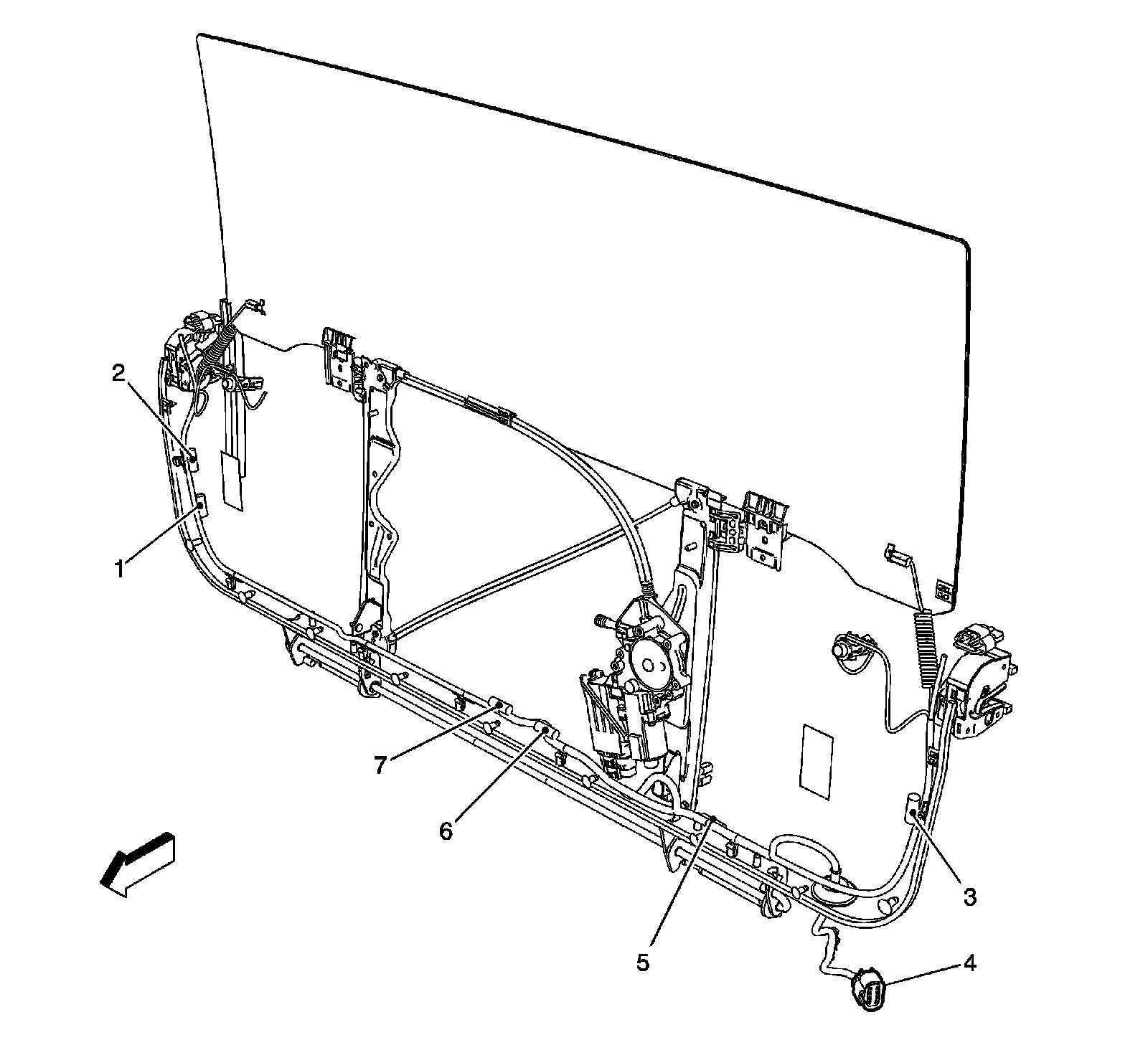

Midgate Harness (SUT)




1 - J336
2 - J338
3 - J339
4 - X300
5 - J334
6 - J337
7 - J335
