Front Doors

Harness Routing Views

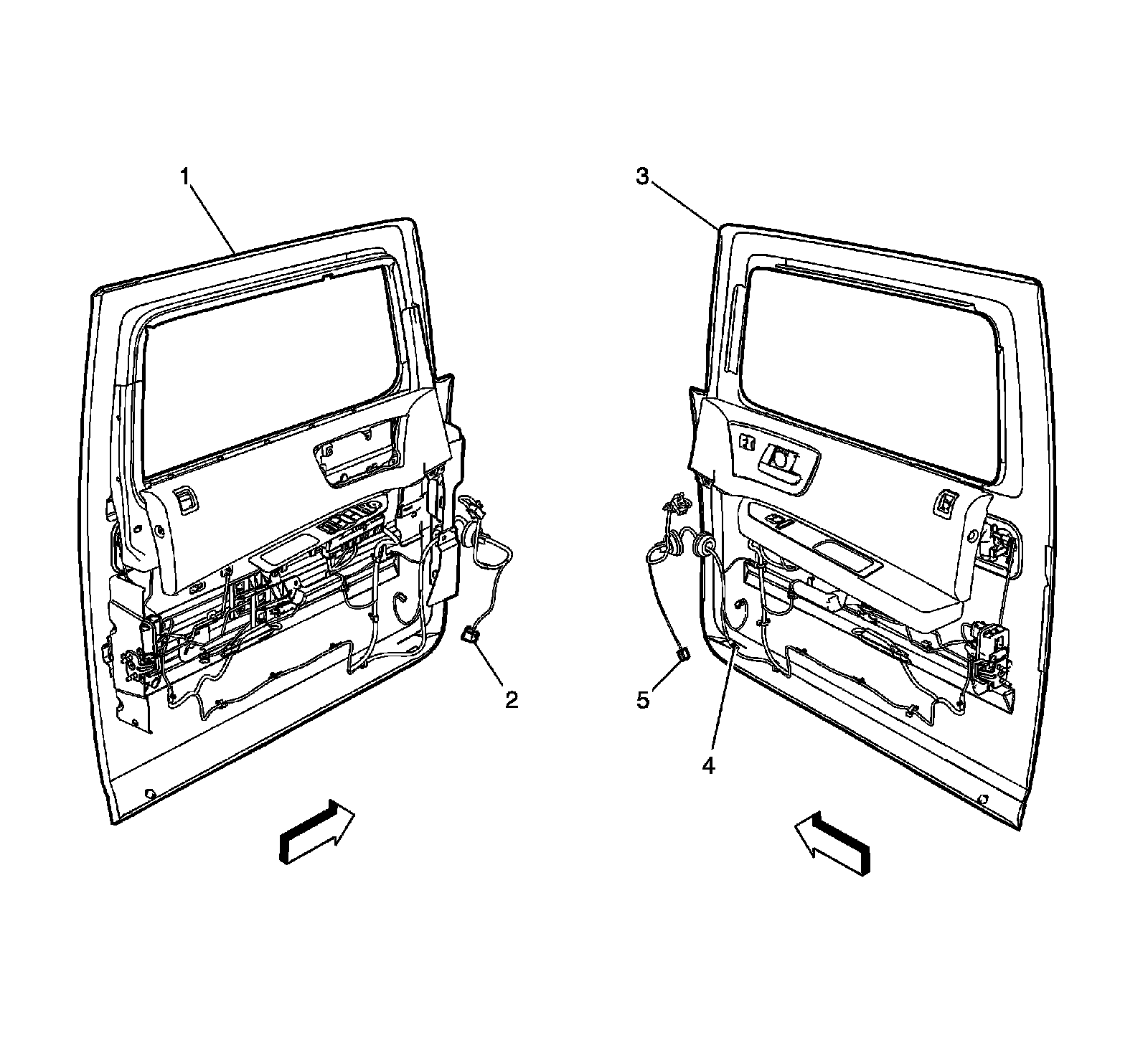

Front Doors

1 - Driver Door
2 - X500
3 - Passenger Door
4 - J600
5 - X600
