Air Bag Control Module: Locations

Passenger Compartment/Roof Component Views

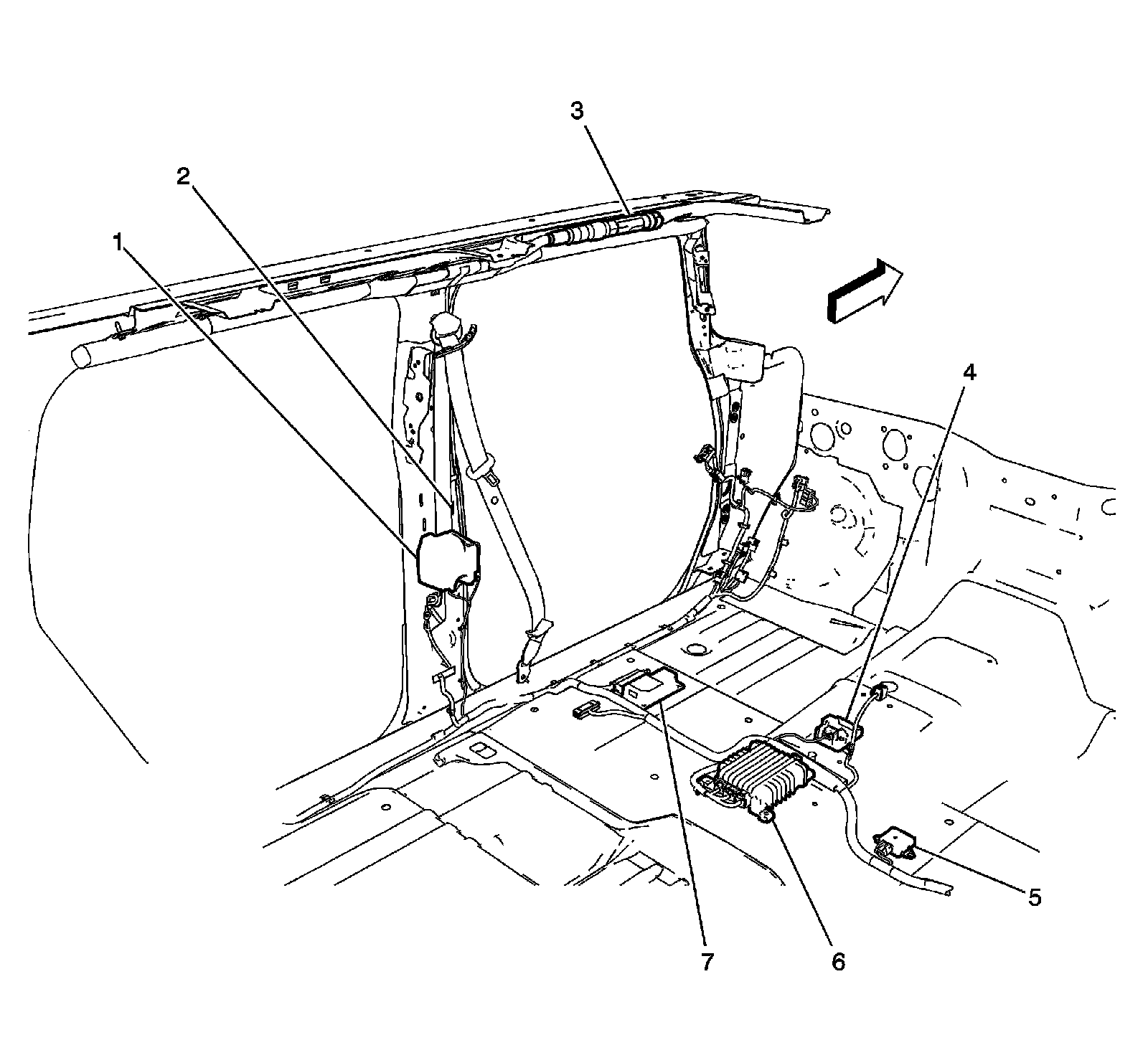

Front Left Side of Passenger Compartment




1 - Seat Belt Pretensioner - Driver
2 - Inflatable Restraint Roof Rail Module Connector - Left Front
3 - Inflatable Restraint Roof Rail Module - Left Front
4 - Inflatable Restraint Vehicle Rollover Sensor
5 - Yaw and Lateral Accelerometer Sensor
6 - Audio Amplifier
7 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
