Washer Fluid Level Switch: Service and Repair

Windshield Washer Solvent Level Switch Replacement

Removal Procedure




1. Open the hood.
2. Remove the washer solvent from the washer solvent container.

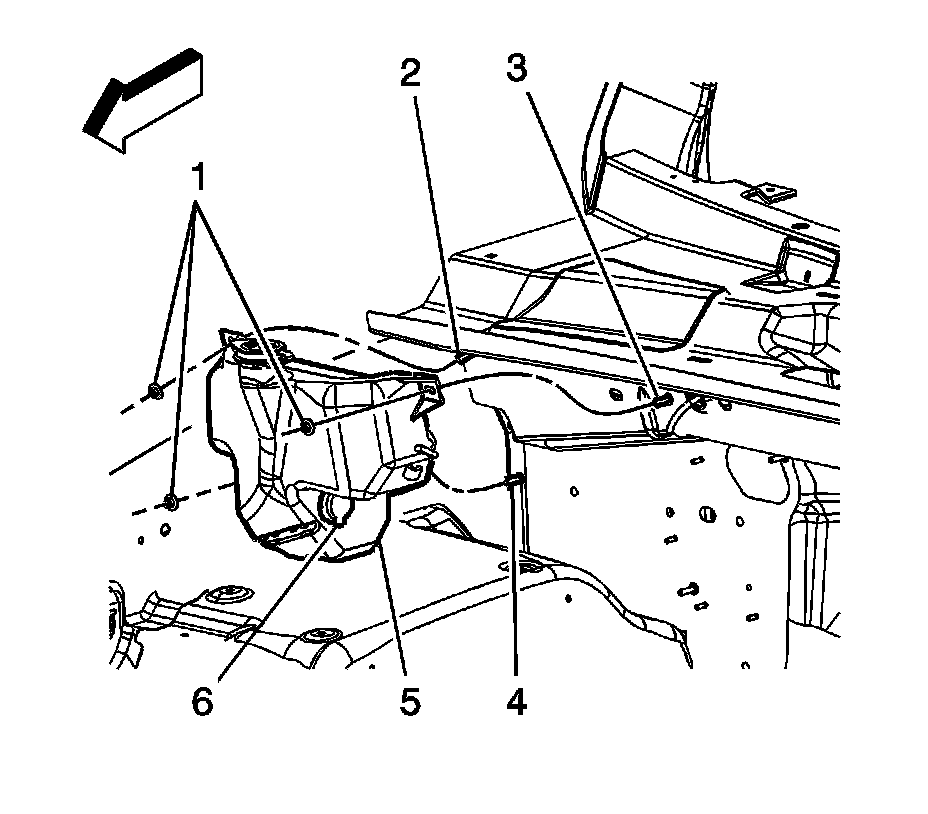

3. Disconnect the washer solvent level sensor (6) electrical connector.
4. Remove the A/C low pressure switch. Refer to Air Conditioning Cycling Switch Replacement (Air Conditioning Cycling Switch Replacement).
5. Mark the location of the sensor prior to removal.

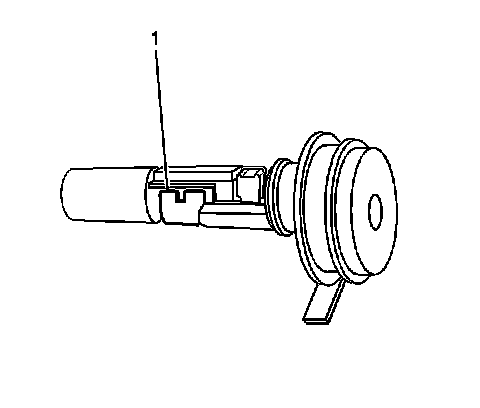

Important: The level sensor arm hinges at the point called out (1). Before servicing the level sensor, it is necessary to get the level sensor arm in a horizontal position. Failure to do so will result in breakage of the level sensor.


6. Get the level sensor in a horizontal position by inserting a long, narrow tool through the washer solvent fill hole, and gently raising the sensor arm.




7. Remove the level sensor from the washer solvent container.

Installation Procedure

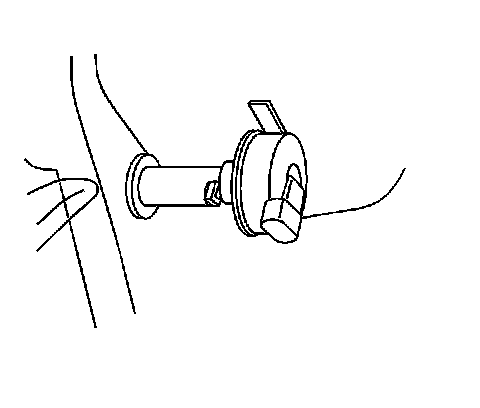

1. Get the level sensor in a horizontal position as shown (1).




2. Install the level sensor (6) in the washer solvent container (5). Ensure to reference the locating mark made during removal.
3. Connect the washer solvent electrical connector.
4. Install the A/C low pressure switch. Refer to Air Conditioning Cycling Switch Replacement (Air Conditioning Cycling Switch Replacement).
5. Refill the washer solvent container.
6. Inspect for leaks.
7. Close the hood.
