Wiper/Washer Schematics

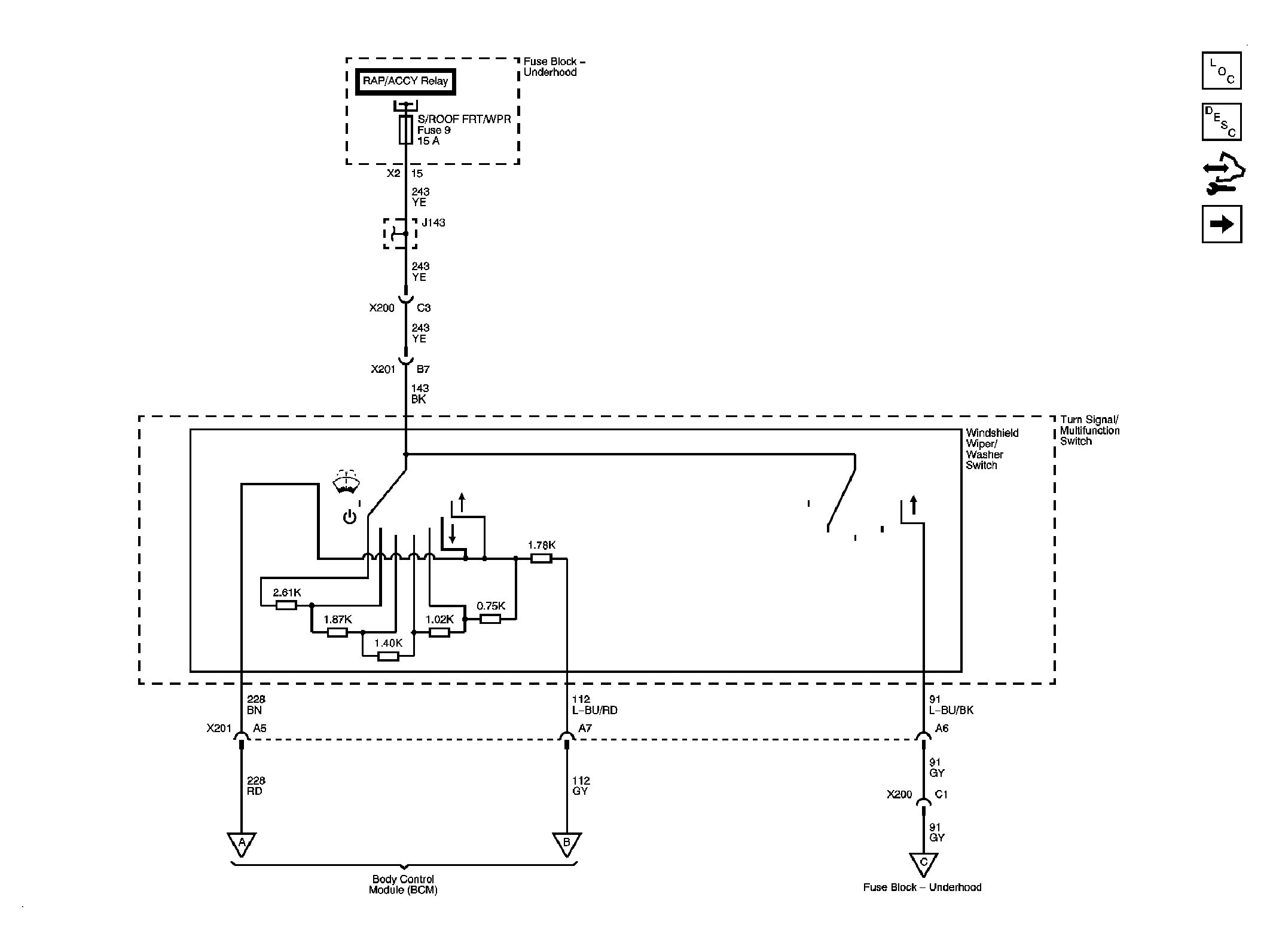

Fig 1: Front Wiper/Washer Switch Signals Schematic
GM2080394Courtesy of GENERAL MOTORS CORP.

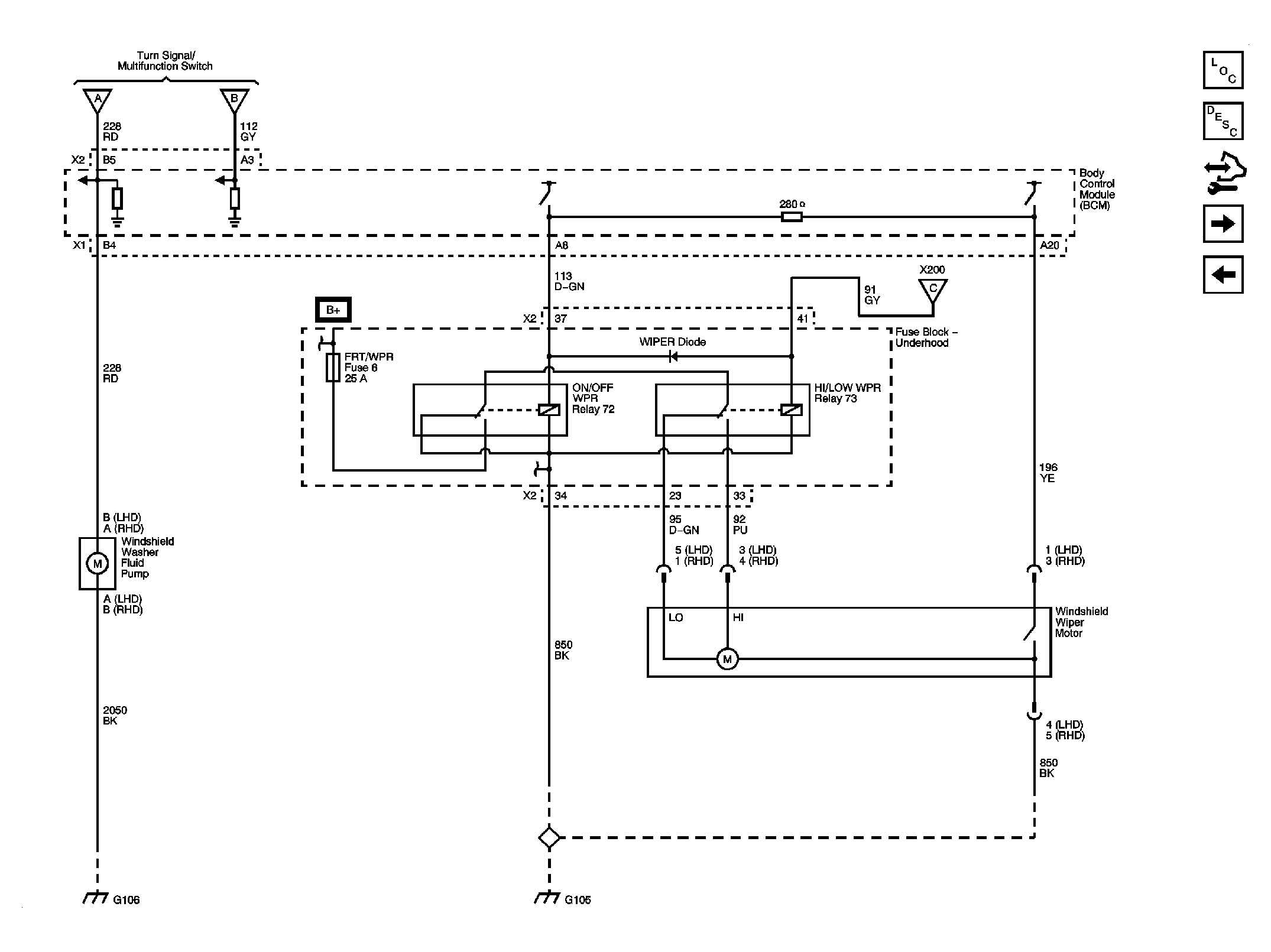

Fig 2: Front Wiper Motor and Washer Control Schematic
GM2080398Courtesy of GENERAL MOTORS CORP.

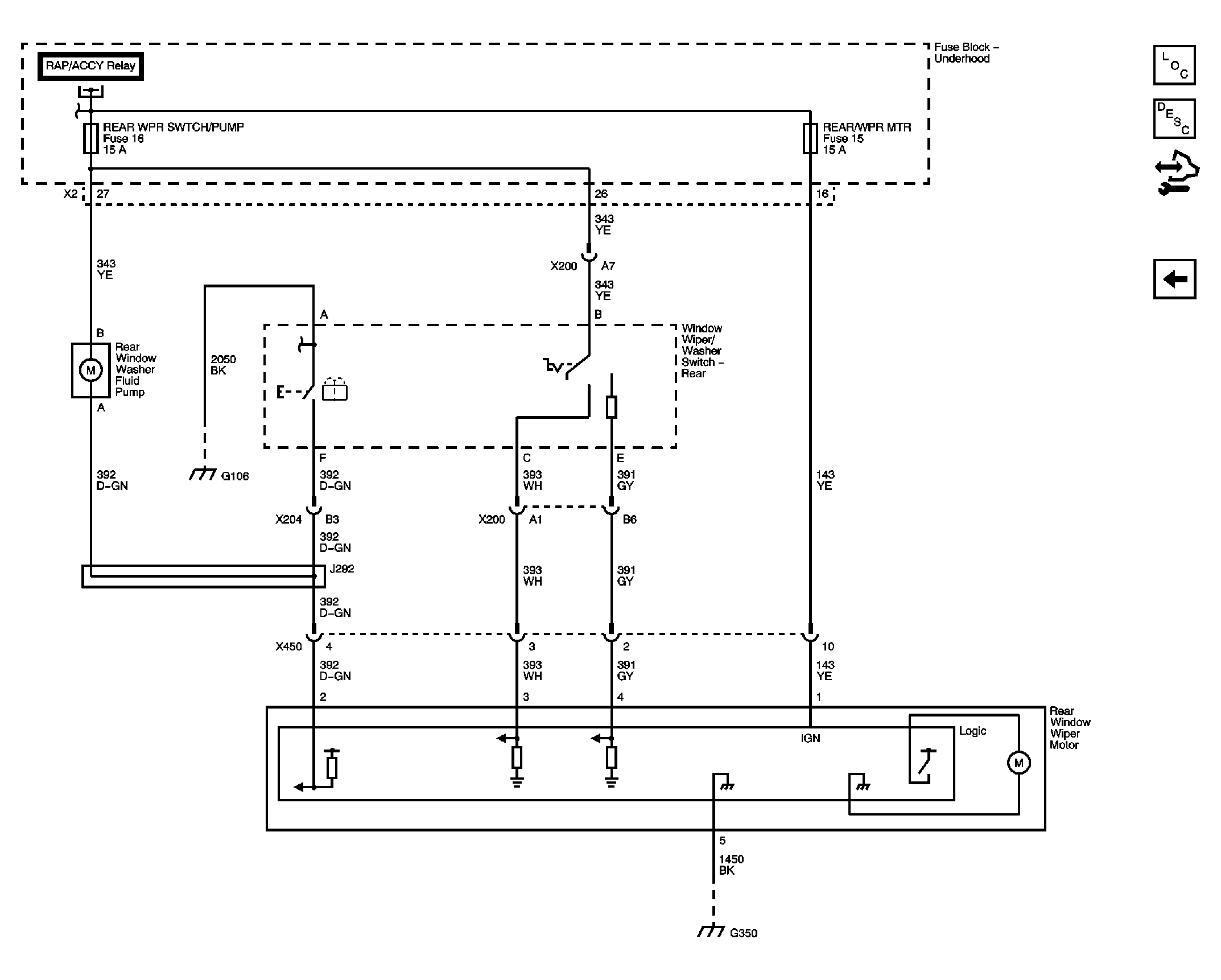

Fig 3: Rear Wiper Schematic
GM2080401Courtesy of GENERAL MOTORS CORP.
