Ignition Lock Schematics

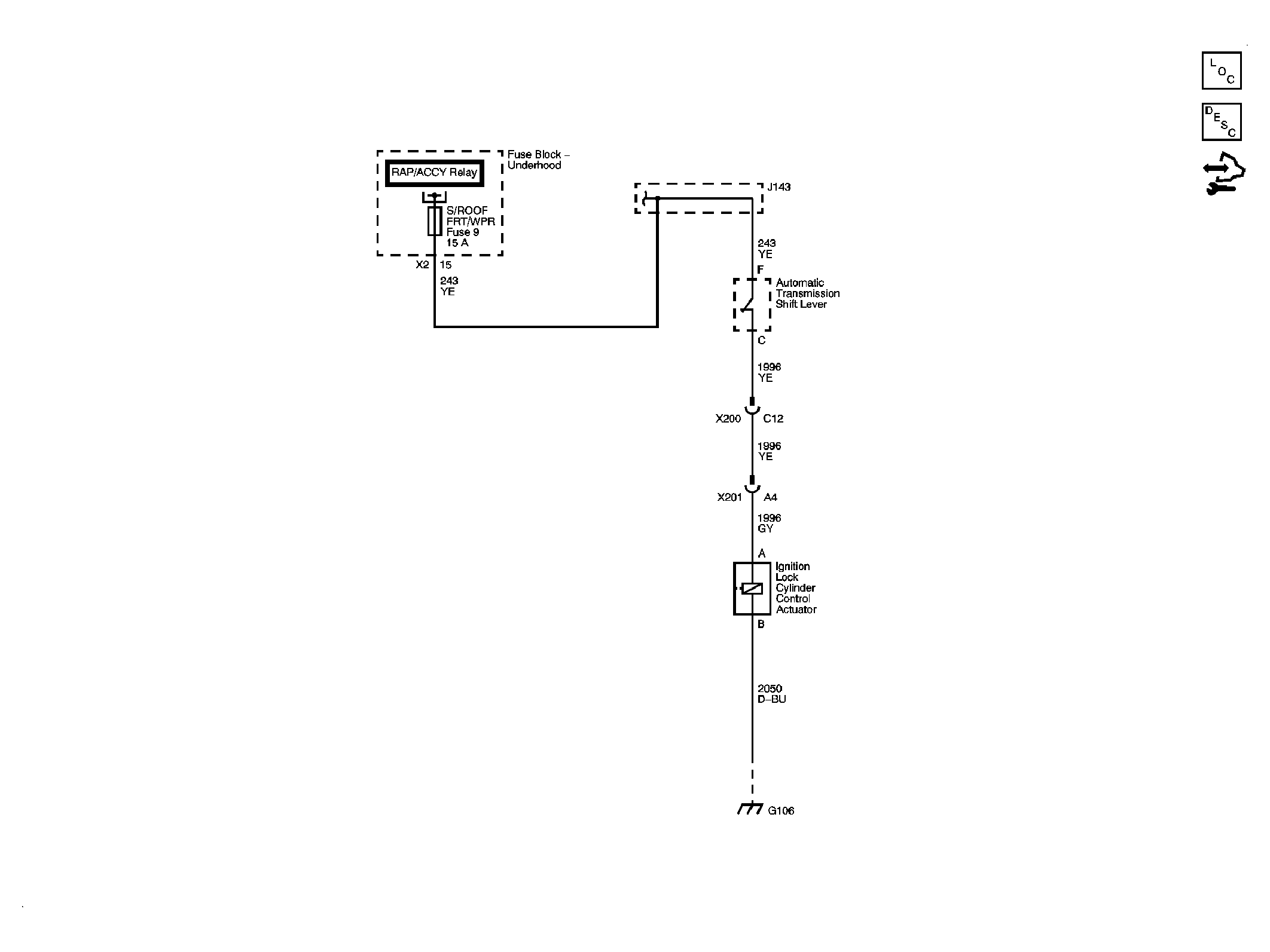

Fig 1: Ignition Lock Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
