2-4 Band, Input Clutches, Input Gear Set Removal

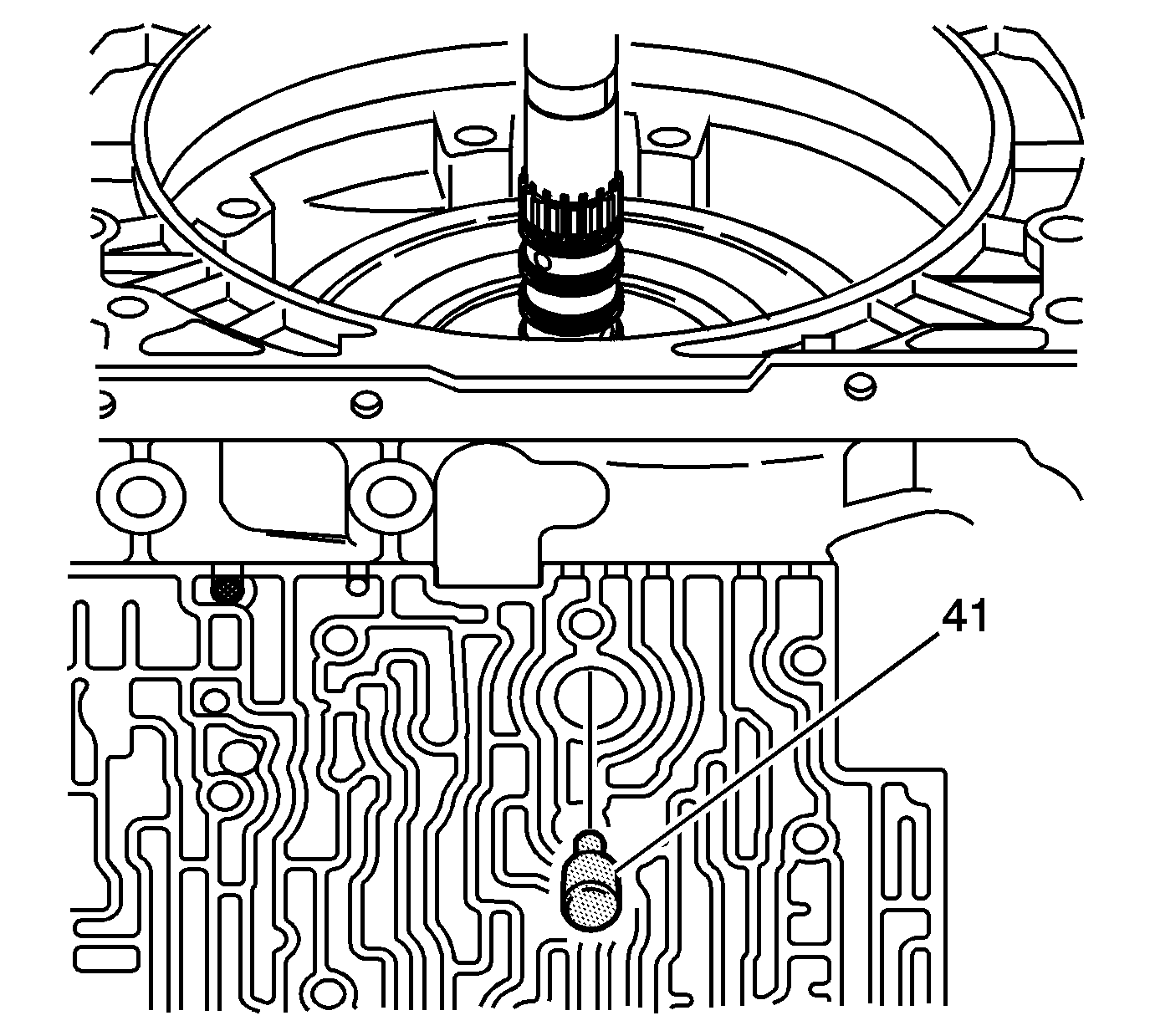

    Fig 1: Identifying Band Anchor Pin
    GM1552920Courtesy of GENERAL MOTORS CORP.
  1. Remove the band anchor pin (41).

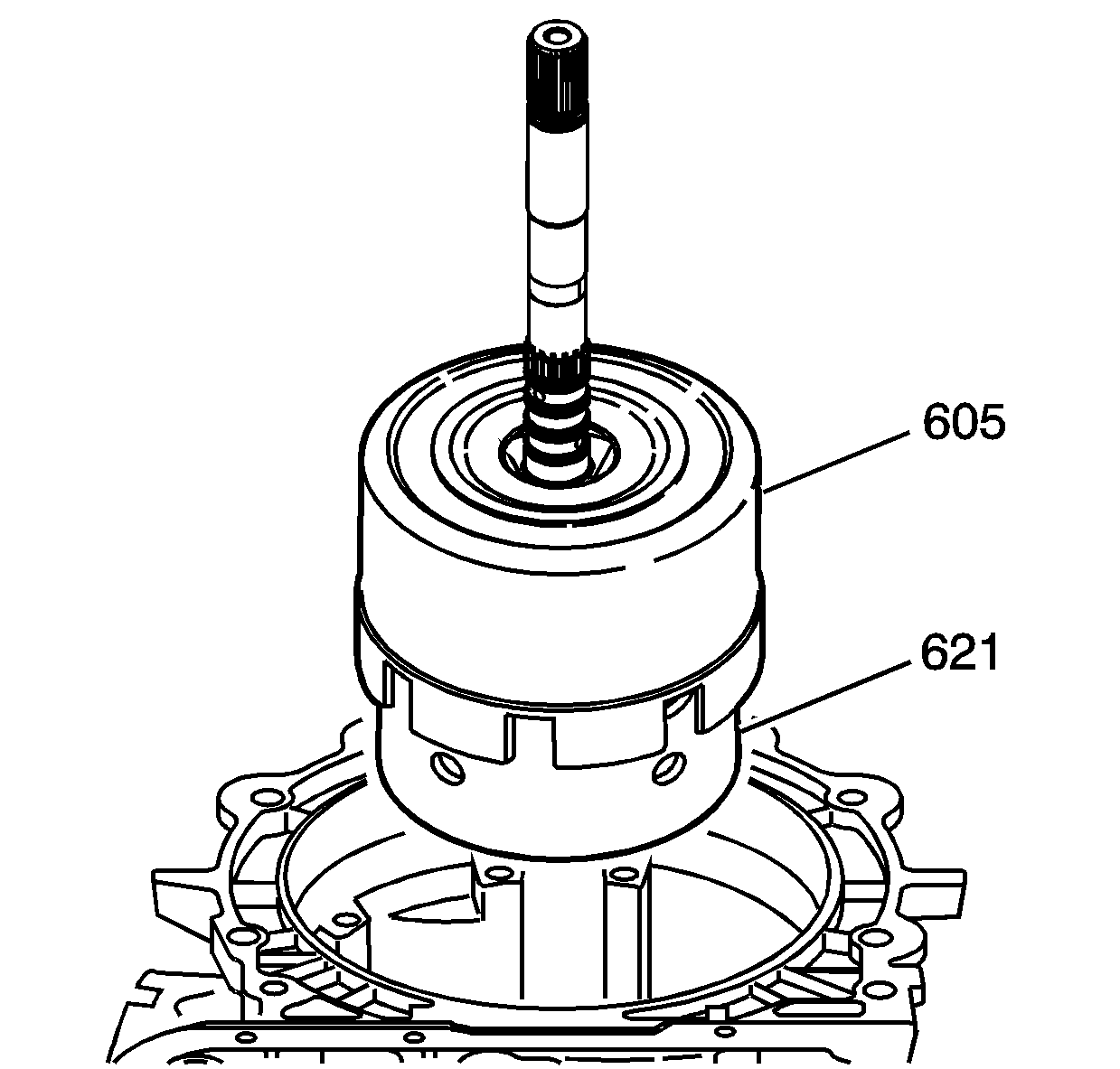

    2. Fig 2: Identifying Reverse Input Clutch Assembly & Input Housing
    GM1552921Courtesy of GENERAL MOTORS CORP.
  2. Remove the input housing and shaft assembly (621), along with the reverse input clutch housing and drum assembly (605).

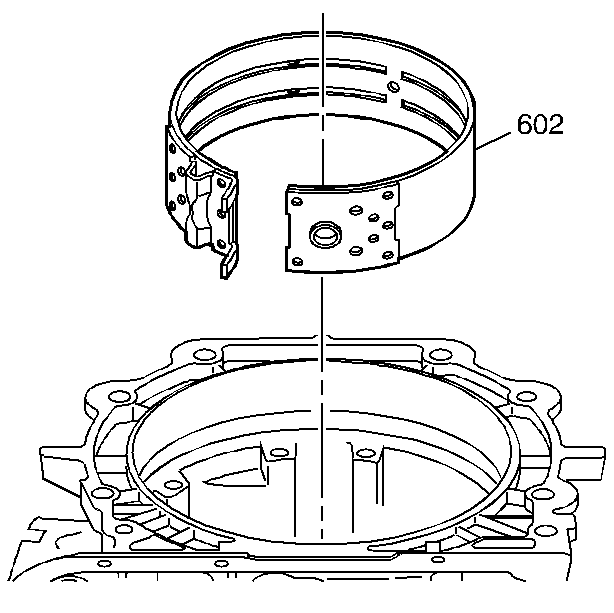

    3. Fig 3: View Of 2-4 Band Assembly
    GM190436Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2-4 band assembly (602).
